B&R 5AC901.LSDL-00

SDL/DVI interface Compatible with APC910 Monitor/Panel option is equipped with a monitor/p...

MPN: 5AC901.LSDL-00
Category: Analog I/O Modules

€528.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 5AC901.LSDL-00?

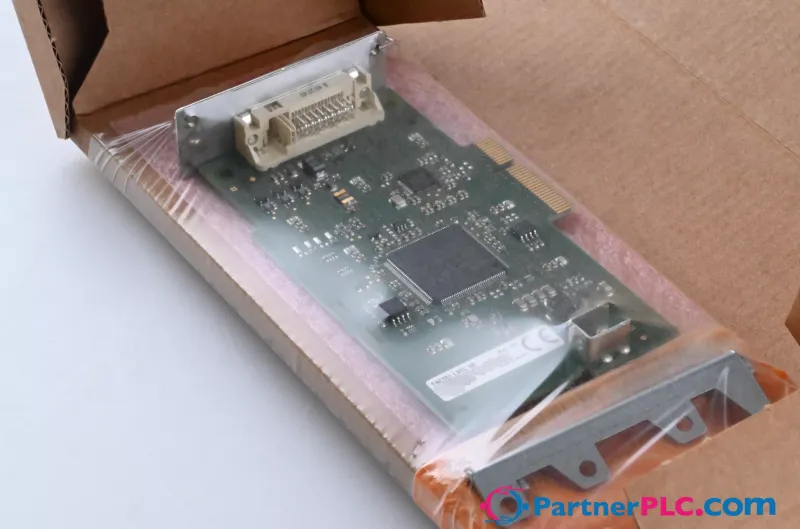

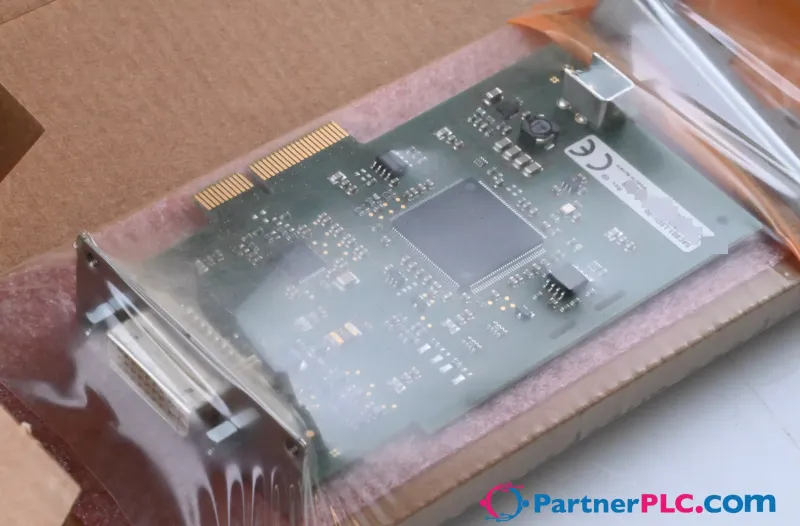

SDL/DVI interface Compatible with APC910 Monitor/Panel option 5AC901.LSDL-00 is equipped with a monitor/panel interface for connecting additional panels via SDL or DVI.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xD853

Interfaces

Panel/Monitor interface – Variant	DVI-D
Panel/Monitor interface – Type	SDL/DVI

Electrical properties

Power consumption

1 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 45 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 910 User's ManualPDF · 101 MB · 2.13 (08/22/2022) - EN

CAD & dimension drawings

3D file STP 5AC901.LSDL-00ZIP · 309 KB · 1.00 (10/14/2022)

Certificates (1)

CCS Type Approval Certificate - Automation PCs, Panel PCs and PanelsPDF · 471 KB · 2.00 (01/15/2026)
