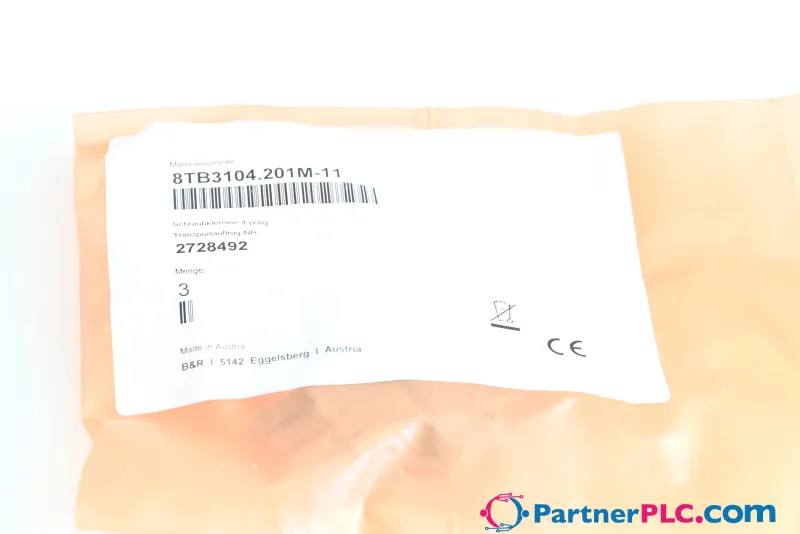

B&R 8TB3104.201M-11 New without box – 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm
Request a Quote
Quick facts
| Availability | In stock — 3 available |
| Category | Terminal Blocks & Connectors |
| Warranty | 12-month |
| Weight | 0.003 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8TB3104.201M-11 be shipped?
8TB3104.201M-11 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8TB3104.201M-11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8TB3104.201M-11.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3104.201M-11, subject to availability and destination.

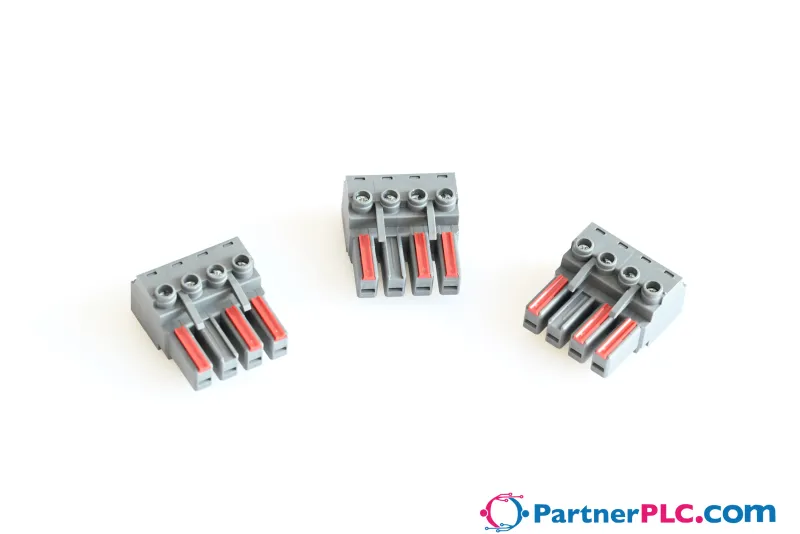

4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding M: 1011
Specifications
Terminal block
| Connection cross section – AWG wire | 24 to 8 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 4 mm² |
| Connection cross section – Single-wire | 0.2 to 6 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 4 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 6 mm² |
| Note | Label 1: Numbered consecutively; Coding M: 1011; 1-row |
| Number of pins | 4 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | M |
| Pitch | 7.62 mm |
| Wire stripping length | 10 mm |
| Tightening torque | 0.7 to 0.8 Nm |
| Tension | >10 N (0.2 mm²) ; >80 N (6 mm²) ; >90 N (10 mm²) |
Electrical properties
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 41 A (IEC/UL) |
Mechanical properties
| Dimensions – Width | 30.4 mm |
| Dimensions – Height | 19.7 mm |
| Dimensions – Depth | 35.3 mm |
| Weight | 3.3 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8TB3104.201M-11 | PDF · 180 KB · 1.2 (11/09/2018) - EN |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D file STEP 8TB3104.201M-11 | ZIP · 255 KB · 1.0 (02/10/2014) |
| 3D files STEP ACOPOSmulti terminals | ZIP · 8 MB · 1.1 (02/18/2014) |
