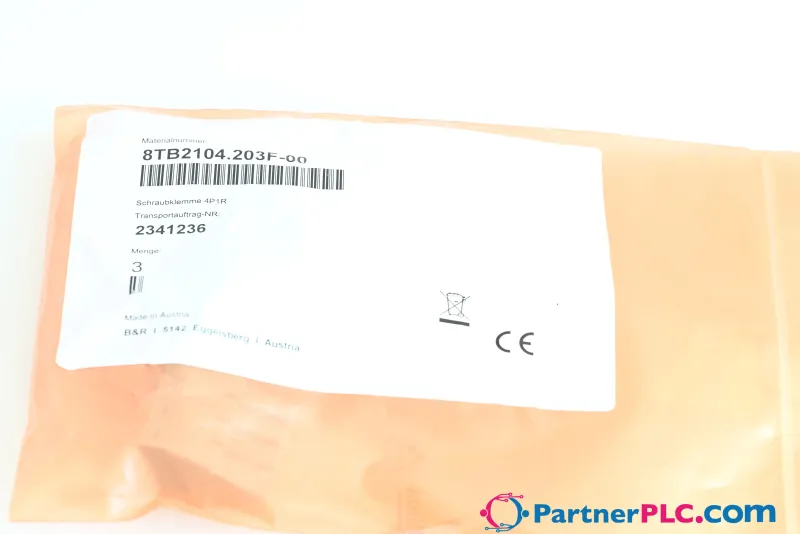

B&R 8TB2104.203F-00 New without box – 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm
Request a Quote
Quick facts
| Availability | In stock — 2 available |
| Category | Terminal Blocks & Connectors |
| Warranty | 12-month |
| Weight | 0.004 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8TB2104.203F-00 be shipped?
8TB2104.203F-00 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8TB2104.203F-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8TB2104.203F-00.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB2104.203F-00, subject to availability and destination.
4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding F: 0101
Specifications
Terminal block
| Connection cross section – AWG wire | 30 to 12 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.25 to 2.5 mm² |
| Connection cross section – Single-wire | 0.2 to 2.5 mm² |
| Connection cross section – Fine-stranded wires | 0.2 to 1.5 mm² |
| Connection cross section – With wire end sleeve | 0.25 to 2.5 mm² |
| Note | Label 3: T- T+ B- B+; Coding F: 0101; 1-row |
| Number of pins | 4 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | F |
| Pitch | 5.08 mm |
| Wire stripping length | 10 mm |
| Tightening torque | 0.5 to 0.6 Nm |
| Tension | >10 N (0.2 mm²); >50 N (2.5 mm²) |
Electrical properties
| Nominal voltage | 250 V (IEC) / 300 V (UL) |
| Nominal current | 12 A (IEC) / 15 A (UL) |
Mechanical properties
| Dimensions – Width | 20.3 mm |
| Dimensions – Height | 15 mm |
| Dimensions – Depth | 18.3 mm |
| Weight | 3.6 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8TB2104.203F-00 | PDF · 184 KB · 1.0 (11/09/2018) - EN |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D file STEP 8TB2104.203F-00 | ZIP · 177 KB · 1.0 (02/10/2014) |
| 3D files STEP ACOPOSmulti terminals | ZIP · 8 MB · 1.1 (02/18/2014) |
