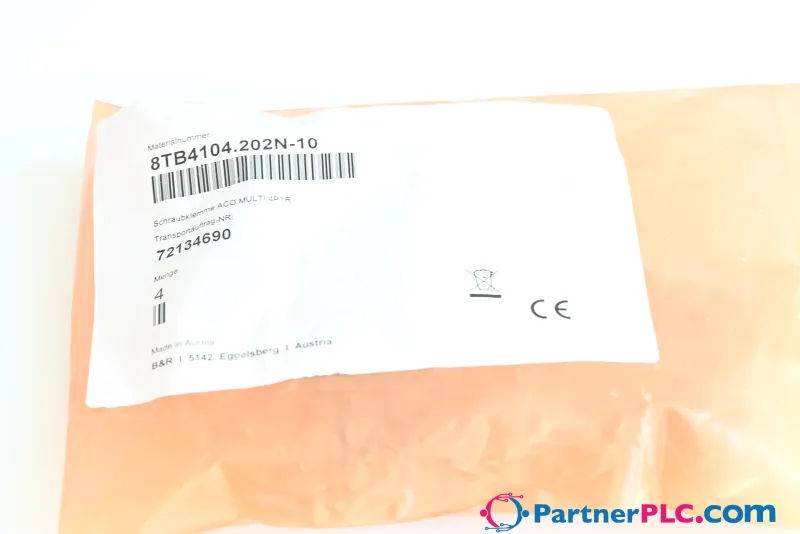

B&R 8TB4104.202N-10 New without box – 4-pin screw clamp terminal block, 1-row, pitch: 10.16 mm
Request a Quote
Quick facts
| Availability | In stock — 4 available |
| Category | Terminal Blocks & Connectors |
| Warranty | 12-month |
| Weight | 0.004 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8TB4104.202N-10 be shipped?
8TB4104.202N-10 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8TB4104.202N-10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8TB4104.202N-10.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB4104.202N-10, subject to availability and destination.

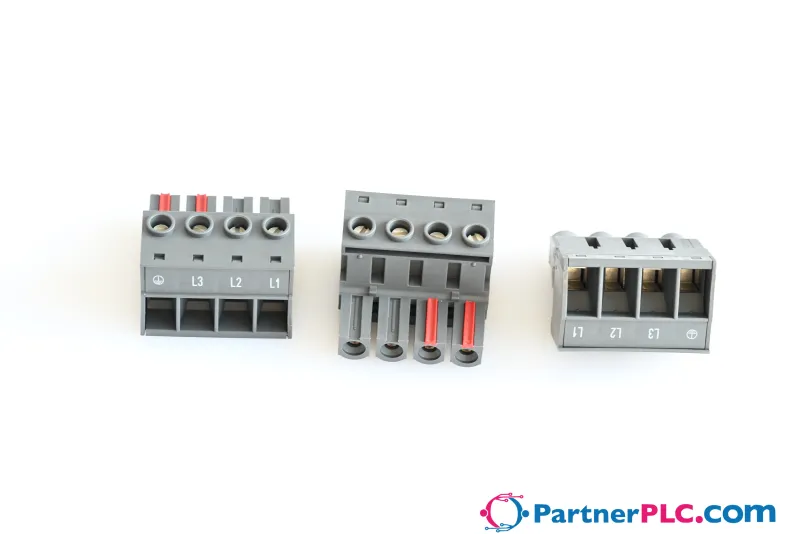

4-pin screw clamp terminal block, 1-row, pitch: 10.16 mm, label 2: L1 L2 L3 PE, coding N: 1100
Specifications
Terminal block
| Connection cross section – AWG wire | 20 to 6 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.5 to 10 mm² |
| Connection cross section – Single-wire | 0.75 to 16 mm² |
| Connection cross section – Fine-stranded wires | 0.75 to 6 mm² |
| Connection cross section – With wire end sleeve | 0.5 to 16 mm² |
| Note | Label 2: L1 L2 L3 P3; Coding N: 1100; 1-row |
| Number of pins | 4 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | N |
| Pitch | 10.16 mm |
| Wire stripping length | 12 mm |
| Tightening torque | 1.7 to 1.8 Nm |
| Tension | >30 N (0.75 mm²) ; >100 N (16 mm²) |
Electrical properties
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 76 A (IEC) / 55 A (UL) |
Mechanical properties
| Dimensions – Width | 40.5 mm |
| Dimensions – Height | 27.8 mm |
| Dimensions – Depth | 41.5 mm |
| Weight | 35 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8TB4104.202N-10 | PDF · 169 KB · 1.2 (08/03/2016) - EN |
CAD & dimension drawings
| 3D file STEP 8TB4104.202N-10 | ZIP · 310 KB · 1.0 (02/10/2014) |
| 3D files STEP ACOPOSmulti terminals | ZIP · 8 MB · 1.1 (02/18/2014) |
