New

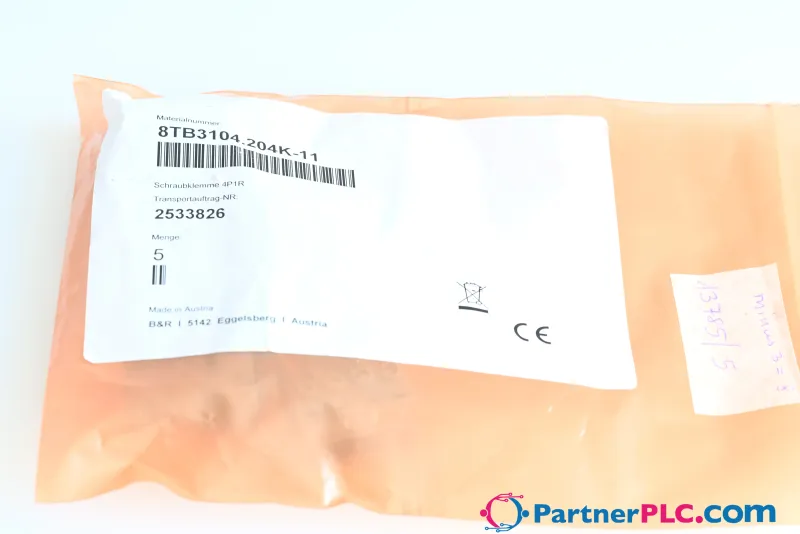

B&R 8TB3104.204K-11 New without box
MPN: 8TB3104.204K-11 · Brand: B&R
€20.14 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 5 available |
| Category | Terminal Blocks & Connectors |
| Warranty | 12-month |
| Weight | 0.003 kg |
Shipping & availability
When can 8TB3104.204K-11 be shipped?
8TB3104.204K-11 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8TB3104.204K-11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8TB3104.204K-11.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3104.204K-11, subject to availability and destination.

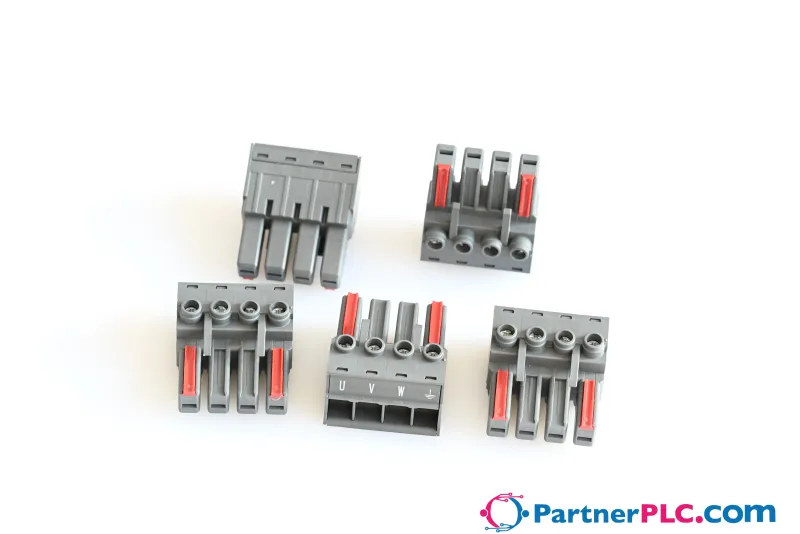

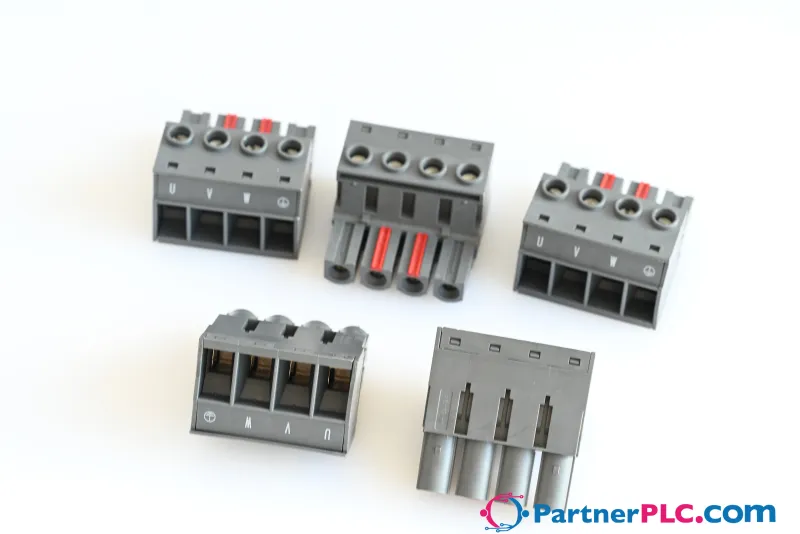

4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding K: 1001
Specifications
Specifications
| Note | Label 4: PE W V U Coding K: 1001 1-row |
| Number of pins | 4 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Coding | K |
| Pitch | 7.62 mm |
| Wire stripping length | 10 mm |
| AWG wire | 24 to 8 AWG |
| Wire end sleeves with plastic covering | 0.25 to 4 mm² |
| Single-wire | 0.2 to 6 mm² |
| Fine-stranded wires | 0.2 to 4 mm² |
| With wire end sleeve | 0.25 to 6 mm² |
| Tightening torque | 0.7 to 0.8 Nm |
| Tension | >10 N (0.2 mm²) >80 N (6 mm²) >90 N (10 mm²) |
| Nominal voltage | 1000 V (IEC) / 600 V (UL) |
| Nominal current | 41 A (IEC/UL) |
| Width | 30.4 mm |
| Height | 19.7 mm |
| Depth | 35.3 mm |
| Weight | 3.3 g |
