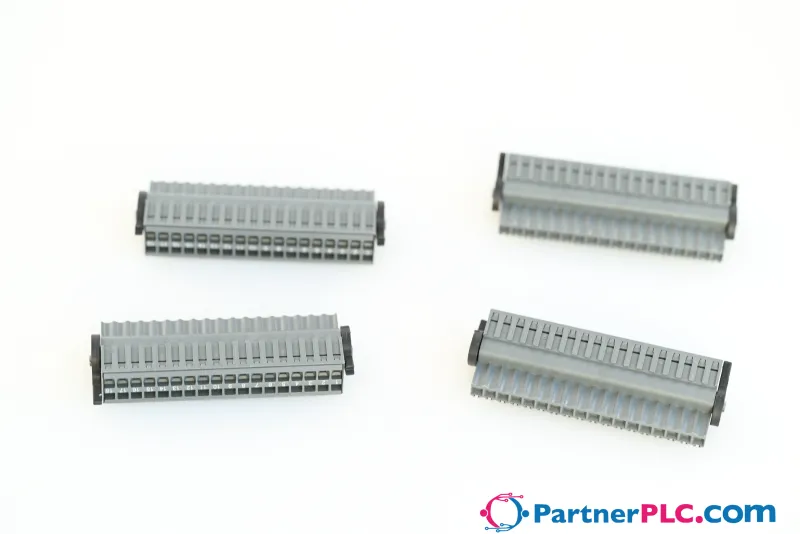

B&R 7TB718.91

Terminal Blocks & Connector

MPN: 7TB718.91
Category: Terminal Blocks & Connectors

€30.74excl. VAT & shipping

In stock — 10 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 7TB718.91?

Terminal Blocks & Connector

Specifications

Terminal block

Connection cross section – AWG wire	26 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.00 mm²
Connection cross section – Single-wire	0.20 to 1.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Mechanical removal aid ; Nominal data per UL
Number of pins	18
Type of terminal block	Cage clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.2 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet TB718PDF · 174 KB · 1.0 (01/24/2005) - EN

7TB718.91: frequently asked questions

When can 7TB718.91 be shipped?

7TB718.91 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 7TB718.91 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 7TB718.91.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7TB718.91, subject to availability and destination.
