Planetary gearboxes with output shaft 8GP Parts

B&R

8GP50-090hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

B&R

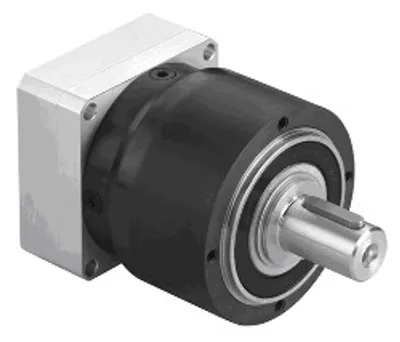

8GP50-090hh005klmm

Coaxial PG, i = 005, 1-stage, IP54.

B&R

8GP50-090hh008klmm

Coaxial PG, i = 008, 1-stage, IP54.

B&R

8GP50-090hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

B&R

8GP50-090hh010klmm

Coaxial PG, i = 010, 1-stage, IP54.

B&R

8GP50-090hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP50-090hh015klmm

Coaxial PG, i = 015, 2-stage, IP54.

B&R

8GP50-090hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP50-090hh020klmm

Coaxial PG, i = 020, 2-stage, IP54.

B&R

8GP50-090hh025klmm

Coaxial PG, i = 025, 2-stage, IP54.

B&R

8GP50-090hh032klmm

Coaxial PG, i = 032, 2-stage, IP54.

B&R

8GP50-090hh040klmm

Coaxial PG, i = 040, 2-stage, IP54.

B&R

8GP50-090hh064klmm

Coaxial PG, i = 064, 2-stage, IP54.

B&R

8GP50-090hh100klmm

Coaxial PG, i = 100, 2-stage, IP54.

B&R

8GP50-120hh003klmm

Coaxial PG, i = 003, 1-stage, IP54

B&R

8GP50-120hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP50-120hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP50-120hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP50-120hh009klmm

Coaxial PG, i = 009, 2-stage, IP54

B&R

8GP50-120hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP50-120hh012klmm

Coaxial PG, i = 012, 2-stage, IP54

B&R

8GP50-120hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP50-120hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

8GP50-120hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Moment of inertia J 1 [kgcm 2]
8GP50-090hh004klmm	4	90	144	0.55	0.57
8GP50-090hh005klmm	5	82	131	0.45	0.48
8GP50-090hh008klmm	8	50	80	0.3	0.4
8GP50-090hh009klmm	9	97	155	0.3	0.75
8GP50-090hh010klmm	10	38	61	0.25	0.4
8GP50-090hh012klmm	12	90	144	0.3	0.73
8GP50-090hh015klmm	15	82	131	0.25	0.71
8GP50-090hh016klmm	16	90	144	0.25	0.5
8GP50-090hh020klmm	20	90	144	0.25	0.44
8GP50-090hh025klmm	25	82	131	0.2	0.44
8GP50-090hh032klmm	32	90	144	0.2	0.39
8GP50-090hh040klmm	40	82	131	0.2	0.39
8GP50-090hh064klmm	64	50	80	0.2	0.39
8GP50-090hh100klmm	100	38	61	0.15	0.39
8GP50-120hh003klmm	3	115	184	1.8	2.87
8GP50-120hh004klmm	4	155	248	1.4	1.92
8GP50-120hh005klmm	5	172	275	1.05	1.6
8GP50-120hh008klmm	8	120	192	0.7	1.35
8GP50-120hh009klmm	9	157	251	0.85	2.65
8GP50-120hh010klmm	10	95	152	0.6	1.3
8GP50-120hh012klmm	12	195	312	0.8	2.57
8GP50-120hh015klmm	15	172	275	0.75	2.54
8GP50-120hh016klmm	16	195	312	0.75	1.76
8GP50-120hh020klmm	20	195	312	0.65	1.5

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
