Home / Motion control / Standard planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

8GP55-080hh009klmm

Coaxial PG, i = 009, 2-stage, IP65.

B&R

8GP55-080hh010klmm

Coaxial PG, i = 010, 1-stage, IP65.

B&R

8GP55-080hh012klmm

Coaxial PG, i = 012, 2-stage, IP65.

B&R

8GP55-080hh015klmm

Coaxial PG, i = 015, 2-stage, IP65.

B&R

8GP55-080hh016klmm

Coaxial PG, i = 016, 2-stage, IP65.

B&R

8GP55-080hh020klmm

Coaxial PG, i = 020, 2-stage, IP65.

B&R

8GP55-080hh025klmm

Coaxial PG, i = 025, 2-stage, IP65.

B&R

8GP55-080hh032klmm

Coaxial PG, i = 032, 2-stage, IP65.

B&R

8GP55-080hh040klmm

Coaxial PG, i = 040, 2-stage, IP65.

B&R

8GP55-080hh064klmm

Coaxial PG, i = 064, 2-stage, IP65.

B&R

8GP55-080hh100klmm

Coaxial PG, i = 100, 2-stage, IP65.

B&R

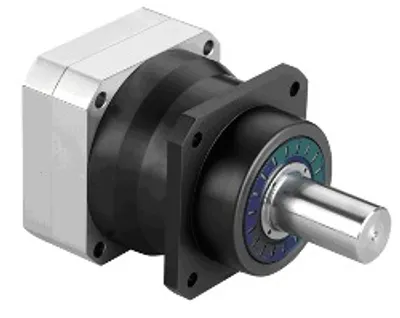

8GP55-120hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP55-120hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP55-120hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP55-120hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP55-120hh009klmm

Coaxial PG, i = 009, 2-stage, IP65

B&R

8GP55-120hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP55-120hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP55-120hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP55-120hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP55-120hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP55-120hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP55-120hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP55-120hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP55-080hh009klmm	9	130	0.4	2850	0.744
8GP55-080hh010klmm	10	38	0.3	4000	0.393
8GP55-080hh012klmm	12	120	0.35	3550	0.722
8GP55-080hh015klmm	15	110	0.3	4000	0.71
8GP55-080hh016klmm	16	120	0.35	4000	0.5
8GP55-080hh020klmm	20	120	0.25	4000	0.44
8GP55-080hh025klmm	25	110	0.25	4000	0.44
8GP55-080hh032klmm	32	120	0.2	4000	0.39
8GP55-080hh040klmm	40	110	0.2	4000	0.39
8GP55-080hh064klmm	64	50	0.2	4000	0.39
8GP55-080hh100klmm	100	38	0.15	4000	0.39
8GP55-120hh003klmm	3	115	1.75	1750	2.69
8GP55-120hh004klmm	4	155	1.45	1850	1.824
8GP55-120hh005klmm	5	195	1.1	1900	1.55
8GP55-120hh008klmm	8	120	0.75	3350	1.328
8GP55-120hh009klmm	9	210	0.95	2250	2.627
8GP55-120hh010klmm	10	95	0.65	3500	1.305
8GP55-120hh012klmm	12	260	0.9	2350	2.564
8GP55-120hh015klmm	15	230	0.85	2800	2.532
8GP55-120hh016klmm	16	260	0.9	2750	1.752
8GP55-120hh020klmm	20	260	0.7	3250	1.5
8GP55-120hh025klmm	25	230	0.65	3500	1.49
8GP55-120hh032klmm	32	260	0.5	3500	1.3
8GP55-120hh040klmm	40	230	0.5	3500	1.3

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
