Planetary gearboxes with output shaft 8GP Parts

B&R

8GP45-121hh012klmm

Coaxial PG, i = 012, 2-stage, IP54

B&R

8GP45-121hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP45-121hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

8GP45-121hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP45-121hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP45-121hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP45-121hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP45-121hh060klmm

Coaxial PG, i = 060, 3-stage, IP54

B&R

8GP45-121hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP45-121hh080klmm

Coaxial PG, i = 080, 3-stage, IP54

B&R

8GP45-121hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP45-121hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

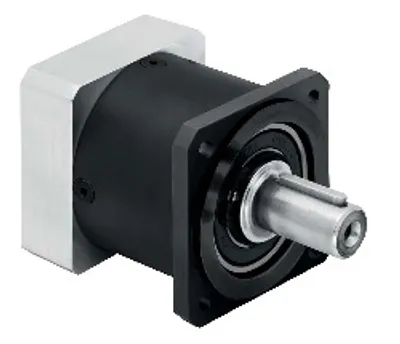

8GP45-121hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP45-121hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP45-121hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP45-121hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP45-121hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP50-050hh003klmm

Coaxial PG, i = 003, 1-stage, IP54

B&R

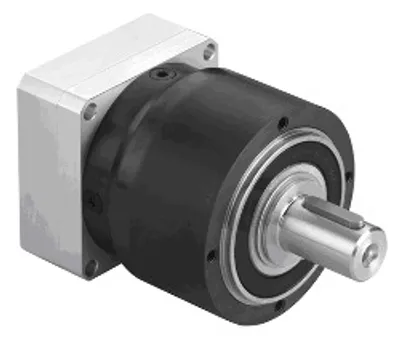

8GP50-050hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP50-050hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP50-050hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP50-050hh009klmm

Coaxial PG, i = 009, 2-stage, IP54

B&R

8GP50-050hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP50-050hh012klmm

Coaxial PG, i = 012, 2-stage, IP54

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP45-121hh012klmm	12	260	416	520	2.56
8GP45-121hh015klmm	15	230	368	500	2.53
8GP45-121hh016klmm	16	260	416	520	1.75
8GP45-121hh020klmm	20	260	416	520	1.5
8GP45-121hh025klmm	25	230	368	500	1.49
8GP45-121hh032klmm	32	260	416	520	1.3
8GP45-121hh040klmm	40	230	368	500	1.3
8GP45-121hh060klmm	60	260	416	520	2.57
8GP45-121hh064klmm	64	120	192	380	1.3
8GP45-121hh080klmm	80	260	416	520	1.5
8GP45-121hh100klmm	100	95	152	480	1.3
8GP45-121hh120klmm	120	230	368	500	2.5
8GP45-121hh160klmm	160	260	416	520	1.3
8GP45-121hh200klmm	200	230	368	500	1.3
8GP45-121hh256klmm	256	260	416	520	1.3
8GP45-121hh320klmm	320	230	368	500	1.3
8GP45-121hh512klmm	512	120	192	380	1.3
8GP50-050hh003klmm	3	11	18	23	0.031
8GP50-050hh004klmm	4	15	24	30	0.022
8GP50-050hh005klmm	5	13	21	36	0.019
8GP50-050hh008klmm	8	6	10	27	0.017
8GP50-050hh009klmm	9	12	19	33	0.03
8GP50-050hh010klmm	10	5	8	27	0.016
8GP50-050hh012klmm	12	15	24	40	0.029

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
