Planetary gearboxes with output shaft 8GP Parts

B&R

8GP50-120hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

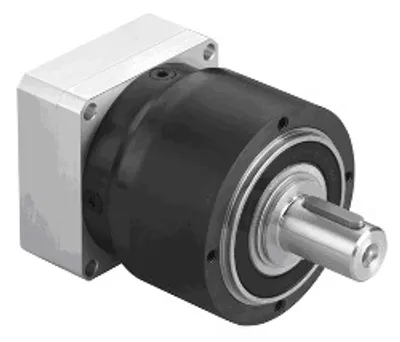

8GP50-120hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP50-120hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP50-120hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP50-120hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP55-060hh003klmm

Coaxial PG, i = 003, 1-stage, IP65.

B&R

8GP55-060hh004klmm

Coaxial PG, i = 004, 1-stage, IP65.

B&R

8GP55-060hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP55-060hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP55-060hh009klmm

Coaxial PG, i = 009, 2-stage, IP65.

B&R

8GP55-060hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP55-060hh012klmm

Coaxial PG, i = 012, 2-stage, IP65.

B&R

8GP55-060hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP55-060hh016klmm

Coaxial PG, i = 016, 2-stage, IP65.

B&R

8GP55-060hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP55-060hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP55-060hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP55-060hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

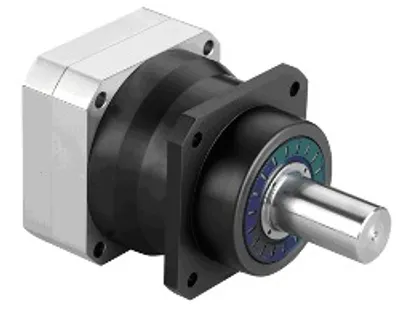

8GP55-060hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP55-060hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP55-080hh003klmm

Coaxial PG, i = 003, 1-stage, IP65.

B&R

8GP55-080hh004klmm

Coaxial PG, i = 004, 1-stage, IP65.

B&R

8GP55-080hh005klmm

Coaxial PG, i = 005, 1-stage, IP65.

B&R

8GP55-080hh008klmm

Coaxial PG, i = 008, 1-stage, IP65.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP50-120hh025klmm	25	172	275	500	1.5
8GP50-120hh032klmm	32	195	312	520	1.3
8GP50-120hh040klmm	40	172	275	500	1.3
8GP50-120hh064klmm	64	120	192	380	1.3
8GP50-120hh100klmm	100	95	152	480	1.3
8GP55-060hh003klmm	3	28	45	66	0.15
8GP55-060hh004klmm	4	38	61	88	0.102
8GP55-060hh005klmm	5	40	64	80	0.083
8GP55-060hh008klmm	8	18	29	80	0.067
8GP55-060hh009klmm	9	44	70	88	0.133
8GP55-060hh010klmm	10	15	24	80	0.065
8GP55-060hh012klmm	12	44	70	88	0.128
8GP55-060hh015klmm	15	44	70	88	0.078
8GP55-060hh016klmm	16	44	70	88	0.089
8GP55-060hh020klmm	20	44	70	88	0.075
8GP55-060hh025klmm	25	40	64	80	0.075
8GP55-060hh032klmm	32	44	70	88	0.064
8GP55-060hh040klmm	40	40	64	80	0.064
8GP55-060hh064klmm	64	18	29	80	0.064
8GP55-060hh100klmm	100	15	24	80	0.064
8GP55-080hh003klmm	3	85	136	180	0.803
8GP55-080hh004klmm	4	115	184	240	0.538
8GP55-080hh005klmm	5	110	176	220	0.462
8GP55-080hh008klmm	8	50	80	190	0.395

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
