Planetary gearboxes with output shaft 8GP Parts

B&R

8GP50-050hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP50-050hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

8GP50-050hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP50-050hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP50-050hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP50-050hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP50-050hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP50-050hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP50-070hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

B&R

8GP50-070hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

B&R

8GP50-070hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP50-070hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP50-070hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

B&R

8GP50-070hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP50-070hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP50-070hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP50-070hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP50-070hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP50-070hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP50-070hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP50-070hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

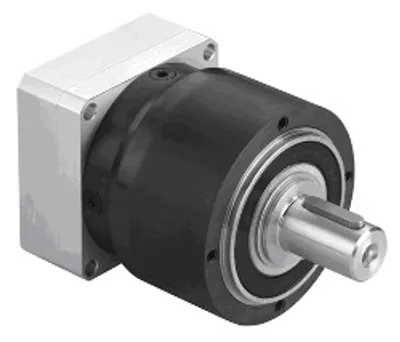

8GP50-070hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP50-070hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP50-090hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP50-050hh015klmm	15	13	21	36	0.023
8GP50-050hh016klmm	16	15	24	40	0.022
8GP50-050hh020klmm	20	15	24	40	0.019
8GP50-050hh025klmm	25	13	21	36	0.019
8GP50-050hh032klmm	32	15	24	40	0.017
8GP50-050hh040klmm	40	13	21	36	0.016
8GP50-050hh064klmm	64	7.5	12	27	0.016
8GP50-050hh100klmm	100	5	8	27	0.016
8GP50-070hh003klmm	3	28	45	66	0.157
8GP50-070hh004klmm	4	33	53	88	0.106
8GP50-070hh005klmm	5	30	48	80	0.086
8GP50-070hh008klmm	8	18	29	80	0.068
8GP50-070hh009klmm	9	33	53	88	0.133
8GP50-070hh010klmm	10	15	24	80	0.066
8GP50-070hh012klmm	12	33	53	88	0.128
8GP50-070hh015klmm	15	33	53	88	0.078
8GP50-070hh016klmm	16	33	53	88	0.089
8GP50-070hh020klmm	20	33	53	88	0.076
8GP50-070hh025klmm	25	30	48	80	0.075
8GP50-070hh032klmm	32	33	53	88	0.064
8GP50-070hh040klmm	40	30	48	80	0.064
8GP50-070hh064klmm	64	18	29	80	0.064
8GP50-070hh100klmm	100	15	24	80	0.064
8GP50-090hh003klmm	3	85	136	180	0.82

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
