Planetary gearboxes with output shaft 8GP Parts

B&R

8GP45-089hh010klmm

Coaxial PG, i = 010, 1-stage, IP54.

B&R

8GP45-089hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP45-089hh015klmm

Coaxial PG, i = 015, 2-stage, IP54.

B&R

8GP45-089hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP45-089hh020klmm

Coaxial PG, i = 020, 2-stage, IP54.

B&R

8GP45-089hh025klmm

Coaxial PG, i = 025, 2-stage, IP54.

B&R

8GP45-089hh032klmm

Coaxial PG, i = 032, 2-stage, IP54.

B&R

8GP45-089hh040klmm

Coaxial PG, i = 040, 2-stage, IP54.

B&R

8GP45-089hh060klmm

Coaxial PG, i = 060, 3-stage, IP54.

B&R

8GP45-089hh064klmm

Coaxial PG, i = 064, 2-stage, IP54.

B&R

8GP45-089hh080klmm

Coaxial PG, i = 080, 3-stage, IP54.

B&R

8GP45-089hh100klmm

Coaxial PG, i = 100, 2-stage, IP54.

B&R

8GP45-089hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP45-089hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP45-089hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP45-089hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP45-089hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

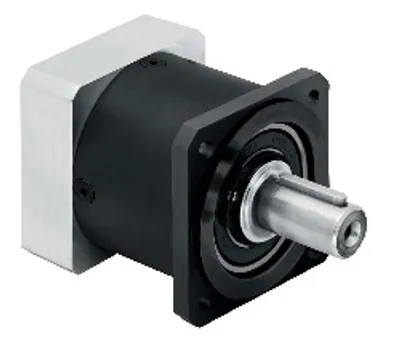

8GP45-089hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP45-121hh003klmm

Coaxial PG, i = 003, 1-stage, IP54

B&R

8GP45-121hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP45-121hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP45-121hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP45-121hh009klmm

Coaxial PG, i = 009, 2-stage, IP54

B&R

8GP45-121hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Moment of inertia J 1 [kgcm 2]
8GP45-089hh010klmm	10	38	61	0.25	0.39
8GP45-089hh012klmm	12	120	192	0.25	0.72
8GP45-089hh015klmm	15	110	176	0.25	0.71
8GP45-089hh016klmm	16	120	192	0.3	0.5
8GP45-089hh020klmm	20	120	192	0.25	0.44
8GP45-089hh025klmm	25	110	176	0.25	0.44
8GP45-089hh032klmm	32	120	192	0.2	0.39
8GP45-089hh040klmm	40	110	176	0.2	0.39
8GP45-089hh060klmm	60	110	176	0.2	0.51
8GP45-089hh064klmm	64	50	80	0.2	0.39
8GP45-089hh080klmm	80	120	192	0.2	0.5
8GP45-089hh100klmm	100	38	61	0.15	0.39
8GP45-089hh120klmm	120	110	176	0.2	0.7
8GP45-089hh160klmm	160	120	192	0.15	0.39
8GP45-089hh200klmm	200	110	176	0.15	0.39
8GP45-089hh256klmm	256	120	192	0.15	0.39
8GP45-089hh320klmm	320	110	176	0.15	0.39
8GP45-089hh512klmm	512	50	80	0.15	0.39
8GP45-121hh003klmm	3	115	184	1.05	2.63
8GP45-121hh004klmm	4	155	248	1	1.79
8GP45-121hh005klmm	5	195	312	0.75	1.53
8GP45-121hh008klmm	8	120	192	0.55	1.32
8GP45-121hh009klmm	9	210	336	0.8	2.62
8GP45-121hh010klmm	10	95	152	0.5	1.3

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Max. axial force Fa max [N] for 20,000 h	2500
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
