Home / Motion control / Standard planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

8GP45-067hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

B&R

8GP45-067hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

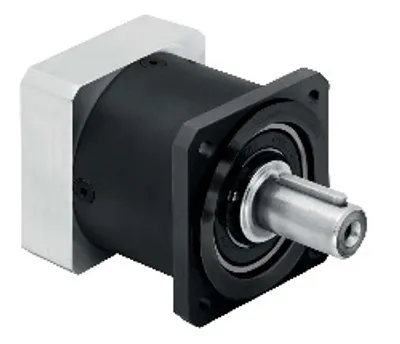

8GP45-067hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP45-067hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP45-067hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP45-067hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP45-067hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP45-067hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP45-067hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP45-067hh060klmm

Coaxial PG, i = 060, 3-stage, IP54

B&R

8GP45-067hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP45-067hh080klmm

Coaxial PG, i = 080, 3-stage, IP54

B&R

8GP45-067hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP45-067hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP45-067hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP45-067hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP45-067hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP45-067hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP45-067hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP45-089hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

B&R

8GP45-089hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

B&R

8GP45-089hh005klmm

Coaxial PG, i = 005, 1-stage, IP54.

B&R

8GP45-089hh008klmm

Coaxial PG, i = 008, 1-stage, IP54.

B&R

8GP45-089hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP45-067hh009klmm	9	44	70	88	0.131
8GP45-067hh010klmm	10	15	24	80	0.064
8GP45-067hh012klmm	12	44	70	88	0.127
8GP45-067hh015klmm	15	44	70	88	0.077
8GP45-067hh016klmm	16	44	70	88	0.088
8GP45-067hh020klmm	20	44	70	88	0.075
8GP45-067hh025klmm	25	40	64	80	0.075
8GP45-067hh032klmm	32	44	70	88	0.064
8GP45-067hh040klmm	40	40	64	80	0.064
8GP45-067hh060klmm	60	44	70	88	0.076
8GP45-067hh064klmm	64	18	29	80	0.064
8GP45-067hh080klmm	80	44	70	88	0.075
8GP45-067hh100klmm	100	15	24	80	0.064
8GP45-067hh120klmm	120	44	70	88	0.064
8GP45-067hh160klmm	160	44	70	88	0.064
8GP45-067hh200klmm	200	40	64	80	0.064
8GP45-067hh256klmm	256	44	70	88	0.064
8GP45-067hh320klmm	320	40	64	80	0.064
8GP45-067hh512klmm	512	18	29	80	0.064
8GP45-089hh003klmm	3	85	136	180	0.77
8GP45-089hh004klmm	4	115	184	240	0.52
8GP45-089hh005klmm	5	110	176	220	0.45
8GP45-089hh008klmm	8	50	80	190	0.39
8GP45-089hh009klmm	9	130	208	260	0.74

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
