Planetary gearboxes with output shaft 8GP Parts

B&R

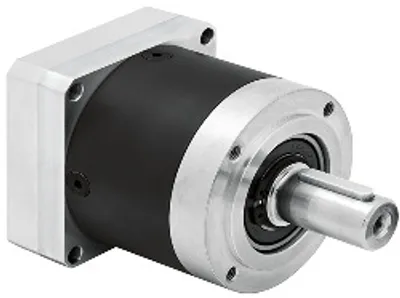

8GP40-120hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP40-120hh009klmm

Coaxial PG, i = 009, 2-stage, IP54

B&R

8GP40-120hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP40-120hh012klmm

Coaxial PG, i = 012, 2-stage, IP54

B&R

8GP40-120hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP40-120hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

8GP40-120hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP40-120hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP40-120hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP40-120hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP40-120hh060klmm

Coaxial PG, i = 060, 3-stage, IP54

B&R

8GP40-120hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP40-120hh080klmm

Coaxial PG, i = 080, 3-stage, IP54

B&R

8GP40-120hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP40-120hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP40-120hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP40-120hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP40-120hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP40-120hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP40-120hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP45-067hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

B&R

8GP45-067hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

B&R

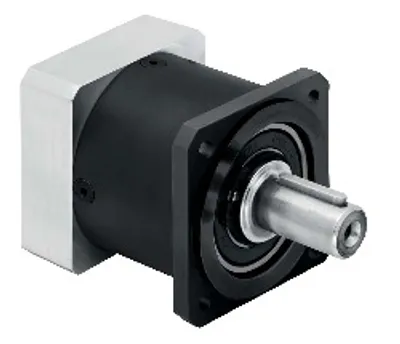

8GP45-067hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP45-067hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Moment of inertia J 1 [kgcm 2]
8GP40-120hh008klmm	8	120	192	0.55	1.32
8GP40-120hh009klmm	9	210	336	0.8	2.62
8GP40-120hh010klmm	10	95	152	0.5	1.3
8GP40-120hh012klmm	12	260	416	0.8	2.56
8GP40-120hh015klmm	15	230	368	0.75	2.53
8GP40-120hh016klmm	16	260	416	0.8	1.75
8GP40-120hh020klmm	20	260	416	0.65	1.5
8GP40-120hh025klmm	25	230	368	0.6	1.49
8GP40-120hh032klmm	32	260	416	0.45	1.3
8GP40-120hh040klmm	40	230	368	0.45	1.3
8GP40-120hh060klmm	60	260	416	0.75	2.57
8GP40-120hh064klmm	64	120	192	0.45	1.3
8GP40-120hh080klmm	80	260	416	0.6	1.5
8GP40-120hh100klmm	100	95	152	0.45	1.3
8GP40-120hh120klmm	120	230	368	0.7	2.5
8GP40-120hh160klmm	160	260	416	0.45	1.3
8GP40-120hh200klmm	200	230	368	0.45	1.3
8GP40-120hh256klmm	256	260	416	0.45	1.3
8GP40-120hh320klmm	320	230	368	0.45	1.3
8GP40-120hh512klmm	512	120	192	0.45	1.3
8GP45-067hh003klmm	3	28	45	0.2	0.135
8GP45-067hh004klmm	4	38	61	0.15	0.093
8GP45-067hh005klmm	5	40	64	0.15	0.078
8GP45-067hh008klmm	8	18	29	0.1	0.065

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
