Planetary gearboxes with output shaft 8GP Parts

B&R

8GP40-080hh005klmm

Coaxial PG, i = 005, 1-stage, IP54.

B&R

8GP40-080hh008klmm

Coaxial PG, i = 008, 1-stage, IP54.

B&R

8GP40-080hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

B&R

8GP40-080hh010klmm

Coaxial PG, i = 010, 1-stage, IP54.

B&R

8GP40-080hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP40-080hh015klmm

Coaxial PG, i = 015, 2-stage, IP54.

B&R

8GP40-080hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP40-080hh020klmm

Coaxial PG, i = 020, 2-stage, IP54.

B&R

8GP40-080hh025klmm

Coaxial PG, i = 025, 2-stage, IP54.

B&R

8GP40-080hh032klmm

Coaxial PG, i = 032, 2-stage, IP54.

B&R

8GP40-080hh040klmm

Coaxial PG, i = 040, 2-stage, IP54.

B&R

8GP40-080hh060klmm

Coaxial PG, i = 060, 3-stage, IP54.

B&R

8GP40-080hh064klmm

Coaxial PG, i = 064, 2-stage, IP54.

B&R

8GP40-080hh080klmm

Coaxial PG, i = 080, 3-stage, IP54.

B&R

8GP40-080hh100klmm

Coaxial PG, i = 100, 2-stage, IP54.

B&R

8GP40-080hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP40-080hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

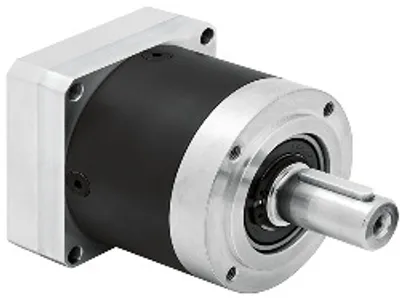

8GP40-080hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP40-080hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP40-080hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP40-080hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP40-120hh003klmm

Coaxial PG, i = 003, 1-stage, IP54

B&R

8GP40-120hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP40-120hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP40-080hh005klmm	5	110	176	220	0.45
8GP40-080hh008klmm	8	50	80	190	0.39
8GP40-080hh009klmm	9	130	208	260	0.74
8GP40-080hh010klmm	10	38	61	200	0.39
8GP40-080hh012klmm	12	120	192	240	0.72
8GP40-080hh015klmm	15	110	176	220	0.71
8GP40-080hh016klmm	16	120	192	240	0.5
8GP40-080hh020klmm	20	120	192	240	0.44
8GP40-080hh025klmm	25	110	176	220	0.44
8GP40-080hh032klmm	32	120	192	240	0.39
8GP40-080hh040klmm	40	110	176	220	0.39
8GP40-080hh060klmm	60	110	176	220	0.51
8GP40-080hh064klmm	64	50	80	190	0.39
8GP40-080hh080klmm	80	120	192	240	0.5
8GP40-080hh100klmm	100	38	61	200	0.39
8GP40-080hh120klmm	120	110	176	220	0.7
8GP40-080hh160klmm	160	120	192	240	0.39
8GP40-080hh200klmm	200	110	176	220	0.39
8GP40-080hh256klmm	256	120	192	240	0.39
8GP40-080hh320klmm	320	110	176	220	0.39
8GP40-080hh512klmm	512	50	80	190	0.39
8GP40-120hh003klmm	3	115	184	390	2.63
8GP40-120hh004klmm	4	155	248	520	1.79
8GP40-120hh005klmm	5	195	312	500	1.53

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
