Planetary gearboxes with output shaft 8GP Parts

B&R

8GP40-060hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

B&R

8GP40-060hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP40-060hh008klmm

Coaxial PG, i = 008, 1-stage, IP54

B&R

8GP40-060hh009klmm

Coaxial PG, i = 009, 2-stage, IP54.

B&R

8GP40-060hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP40-060hh012klmm

Coaxial PG, i = 012, 2-stage, IP54.

B&R

8GP40-060hh015klmm

Coaxial PG, i = 015, 2-stage, IP54

B&R

8GP40-060hh016klmm

Coaxial PG, i = 016, 2-stage, IP54.

B&R

8GP40-060hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP40-060hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

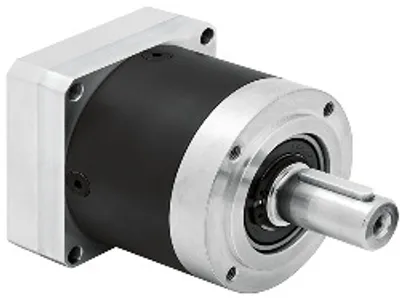

8GP40-060hh032klmm

Coaxial PG, i = 032, 2-stage, IP54

B&R

8GP40-060hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP40-060hh060klmm

Coaxial PG, i = 060, 3-stage, IP54

B&R

8GP40-060hh064klmm

Coaxial PG, i = 064, 2-stage, IP54

B&R

8GP40-060hh080klmm

Coaxial PG, i = 080, 3-stage, IP54

B&R

8GP40-060hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP40-060hh120klmm

Coaxial PG, i = 120, 3-stage, IP54

B&R

8GP40-060hh160klmm

Coaxial PG, i = 160, 3-stage, IP54

B&R

8GP40-060hh200klmm

Coaxial PG, i = 200, 3-stage, IP54

B&R

8GP40-060hh256klmm

Coaxial PG, i = 256, 3-stage, IP54

B&R

8GP40-060hh320klmm

Coaxial PG, i = 320, 3-stage, IP54

B&R

8GP40-060hh512klmm

Coaxial PG, i = 512, 3-stage, IP54

B&R

8GP40-080hh003klmm

Coaxial PG, i = 003, 1-stage, IP54.

B&R

8GP40-080hh004klmm

Coaxial PG, i = 004, 1-stage, IP54.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Moment of inertia J 1 [kgcm 2]
8GP40-060hh004klmm	4	38	61	88	0.093
8GP40-060hh005klmm	5	40	64	80	0.078
8GP40-060hh008klmm	8	18	29	80	0.065
8GP40-060hh009klmm	9	44	70	88	0.131
8GP40-060hh010klmm	10	15	24	80	0.064
8GP40-060hh012klmm	12	44	70	88	0.127
8GP40-060hh015klmm	15	44	70	88	0.077
8GP40-060hh016klmm	16	44	70	88	0.088
8GP40-060hh020klmm	20	44	70	88	0.075
8GP40-060hh025klmm	25	40	64	80	0.075
8GP40-060hh032klmm	32	44	70	88	0.064
8GP40-060hh040klmm	40	40	64	80	0.064
8GP40-060hh060klmm	60	44	70	88	0.076
8GP40-060hh064klmm	64	18	29	80	0.064
8GP40-060hh080klmm	80	44	70	88	0.075
8GP40-060hh100klmm	100	15	24	80	0.064
8GP40-060hh120klmm	120	44	70	88	0.064
8GP40-060hh160klmm	160	44	70	88	0.064
8GP40-060hh200klmm	200	40	64	80	0.064
8GP40-060hh256klmm	256	44	70	88	0.064
8GP40-060hh320klmm	320	40	64	80	0.064
8GP40-060hh512klmm	512	18	29	80	0.064
8GP40-080hh003klmm	3	85	136	180	0.77
8GP40-080hh004klmm	4	115	184	240	0.52

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP54
