Home / Motion control / Standard planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

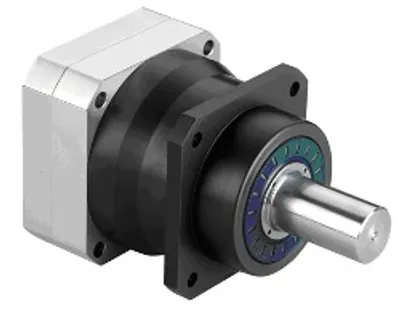

8GP55-120hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP55-120hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP45-067hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

8GP40-040hh007klmm

Coaxial PG, i = 007, 1 stage, IP 54

B&R

8GP40-060hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

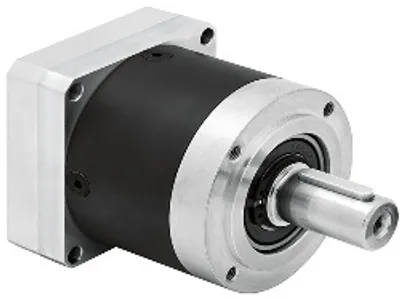

8GP40-080hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

8GP40-120hh007klmm

Coaxial PG, i = 007, 1 stage, IP 54

B&R

8GP45-089hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

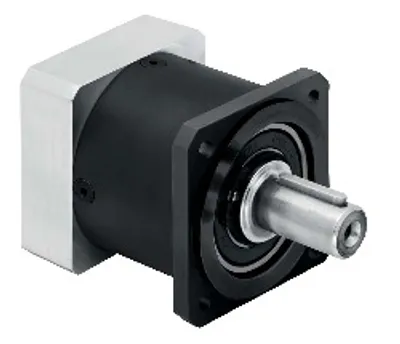

8GP45-121hh007klmm

Coaxial PG, i = 007, 1 stage, IP 54

B&R

8GP50-050hh007klmm

Coaxial PG, i = 007, 1 stage, IP 54

B&R

8GP50-070hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

8GP50-090hh007klmm

Coaxial PG, i = 007, 1-stage, IP54.

B&R

8GP50-120hh007klmm

Coaxial PG, i = 007, 1 stage, IP 54

B&R

8GP50-155hh004klmm

Coaxial PG, i = 004, 1-stage, IP54

B&R

8GP50-155hh005klmm

Coaxial PG, i = 005, 1-stage, IP54

B&R

8GP50-155hh010klmm

Coaxial PG, i = 010, 1-stage, IP54

B&R

8GP50-155hh016klmm

Coaxial PG, i = 016, 2-stage, IP54

B&R

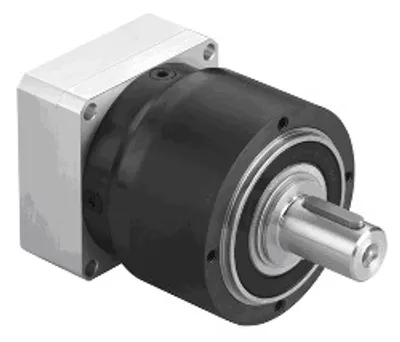

8GP50-155hh020klmm

Coaxial PG, i = 020, 2-stage, IP54

B&R

8GP50-155hh025klmm

Coaxial PG, i = 025, 2-stage, IP54

B&R

8GP50-155hh040klmm

Coaxial PG, i = 040, 2-stage, IP54

B&R

8GP50-155hh050klmm

Coaxial PG, i = 050, 2-stage, IP54

B&R

8GP50-155hh100klmm

Coaxial PG, i = 100, 2-stage, IP54

B&R

8GP55-060hh007klmm

Coaxial PG, i = 007, 1-stage, IP65.

B&R

8GP55-080hh007klmm

Coaxial PG, i = 007, 1-stage, IP65.

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Idle torque [Nm] at 20°C and 3000 rpm	Max. radial force Fr max [N] for 30,000 h	Max. radial force Fr max [N] for 20,000 h	Weight m [kg]	Moment of inertia J 1 [kgcm 2]
8GP55-120hh064klmm	0.45	5400	6000	8.8	1.3
8GP55-120hh100klmm	0.45	5400	6000	8.8	1.3
8GP45-067hh007klmm	0.1	700	900	1.1	0.072
8GP40-040hh007klmm	0.05	160	200	0.35	0.018
8GP40-060hh007klmm	0.1	340	400	0.9	0.072
8GP40-080hh007klmm	0.2	650	750	2.1	0.42
8GP40-120hh007klmm	0.55	1500	1750	6	1.41
8GP45-089hh007klmm	0.3	1700	2050	3.2	0.42
8GP45-121hh007klmm	0.55	2400	2950	6.6	1.41
8GP50-050hh007klmm	0.05	700	800	0.7	0.018
8GP50-070hh007klmm	0.15	900	1050	1.5	0.078
8GP50-090hh007klmm	0.3	1700	1900	3	0.45
8GP50-120hh007klmm	0.8	2150	2500	7.5	1.45
8GP50-155hh004klmm	0.6	4600	5200	16.5	7.073
8GP50-155hh005klmm	0.5	4600	5200	16.5	6.046
8GP50-155hh010klmm	0.45	4600	5200	16.5	4.663
8GP50-155hh016klmm	1.15	4600	5200	20.5	6.156
8GP50-155hh020klmm	1.45	4600	5200	20.5	5.194
8GP50-155hh025klmm	1.1	4600	5200	20.5	5.147
8GP50-155hh040klmm	0.65	4600	5200	20.5	4.454
8GP50-155hh050klmm	0.6	4600	5200	20.5	4.442
8GP50-155hh100klmm	0.65	4600	5200	20.5	4.442
8GP55-060hh007klmm	0.2	3200	3200	1.4	0.075
8GP55-080hh007klmm	0.4	4800	5500	2.7	0.428

Common to all listed parts

Reduced backlash J t [arcmin] less than	0
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
