Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current at AC rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|
| 5SY4108-8 | 7.51 A | 6.99 A | 8 A | 0.8 W | 155 g |

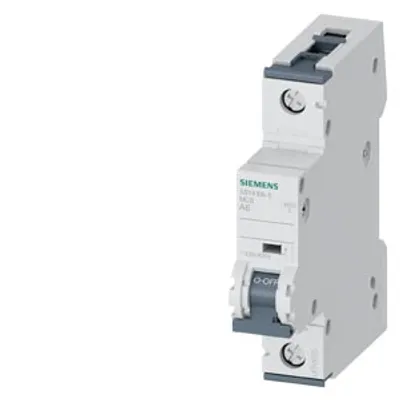

| 5SY4106-5 | 5.63 A | 5.24 A | 6 A | 2.2 W | 156 g |
| 5SY4101-6 | 0.95 A | 0.9 A | 1 A | 1.4 W | 166 g |

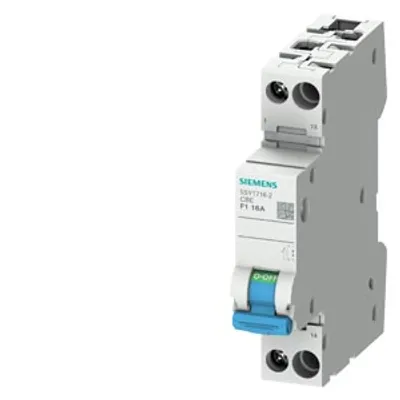

| 5SY1716-2 | 14.67 A | 13.82 A | 16 A | 3.07 W | 123 g |
| 5SY1710-4 | 9.17 A | 8.64 A | 10 A | 2 W | 122 g |
| 5SY1710-2 | 9.17 A | 8.64 A | 10 A | 2.9 W | 119.5 g |
| 5SY4204-6 | 3.76 A | 3.5 A | 4 A | 1.5 W | 319 g |

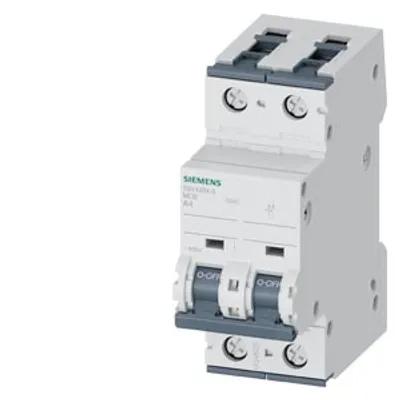

| 5SY4204-5 | 3.76 A | 3.5 A | 4 A | 2.3 W | 321 g |
| 5SP4491-6 | 95 A | 89.5 A | 100 A | 8 W | 1.049 kg |
| 5SP3740-2 | 38 A | 36 A | 40 A | 6.4 W | 1.3 kg |

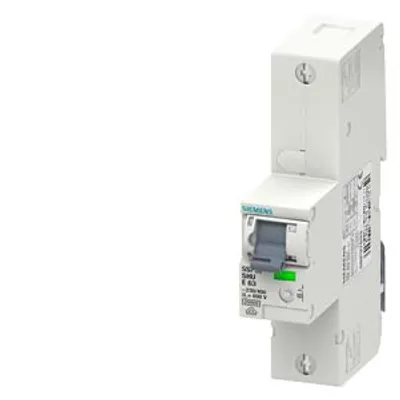

| 5SP3735-3 | 33.25 A | 31.5 A | 35 A | 6.9 W | 430 g |
| 5SP3735-2KK03 | 33.25 A | 31.5 A | 35 A | 6.9 W | 489 g |

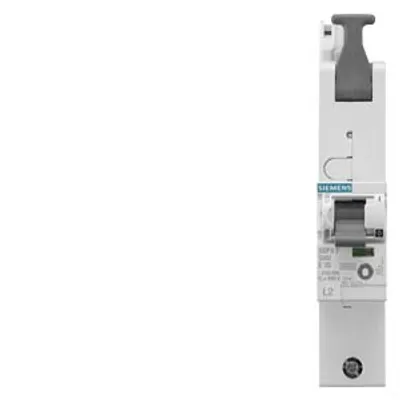

| 5SP3735-2KK02 | 33.25 A | 31.5 A | 35 A | 6.9 W | 481 g |
| 5SP3735-2KK01 | 33.25 A | 31.5 A | 35 A | 6.9 W | 486 g |

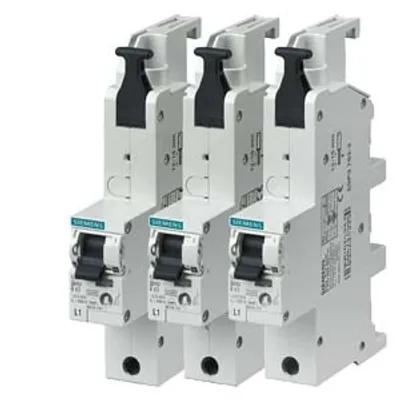

| 5SP3735-2 | 33.25 A | 31.5 A | 35 A | 6.9 W | 1.31 kg |
| 5SP3725-3 | 23.75 A | 22.5 A | 25 A | 6.5 W | 430 g |
| 5SP4280-7 | 76 A | 71.6 A | 80 A | 7 W | 518 g |

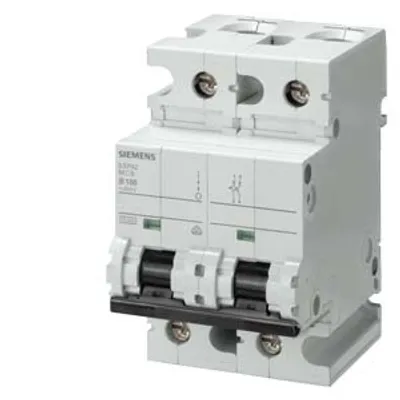

| 5SP4280-6 | 76 A | 71.6 A | 80 A | 7 W | 533 g |
| 5SP3435-3 | 33.25 A | 31.5 A | 35 A | 6.9 W | 1.45 kg |

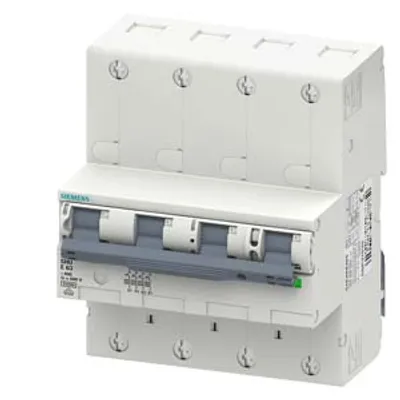

| 5SP3425-3 | 23.75 A | 22.5 A | 25 A | 6.5 W | 1.437 kg |
| 5SP3420-3 | 19 A | 18 A | 20 A | 6 W | 1.438 kg |
| 5SP3320-3 | 19 A | 18 A | 20 A | 6 W | 1.091 kg |

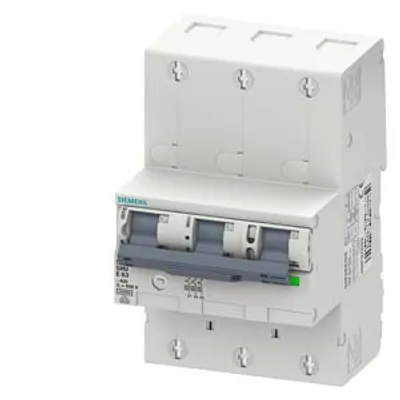

| 5SP3316-3 | 15.2 A | 14.4 A | 16 A | 4.5 W | 1.093 kg |

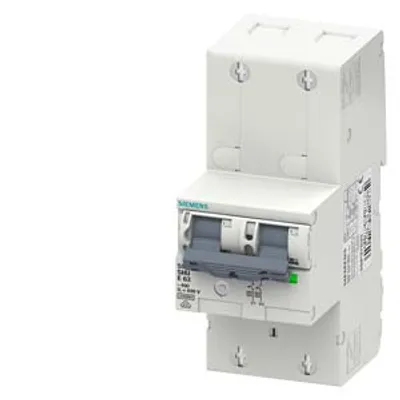

| 5SP3250-3 | 47.5 A | 45 A | 50 A | 8 W | 760 g |
Common to all listed parts
| product feature properties for main switches in accordance with EN 60204-1 | Yes |
| product feature sealable | Yes |
| ambient temperature during storage — minimum | -40 °C |
