Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | number of poles | design of pole | power loss [W] for rated value of the current at AC in hot operating state per pole | set values setting current (Ii) for I-tripping | Net Weight |
|---|---|---|---|---|---|
| 5SY8520-8 | 2 | 1P+N | 1.6 W | 14 | 313 g |
| 5SY8520-7 | 2 | 1P+N | 1.7 W | 7,5 | 315 g |
| 5SY8516-8 | 2 | 1P+N | 1.6 W | 14,5 | 303 g |
| 5SY8510-8 | 2 | 1P+N | 0.9 W | 16 | 303 g |
| 5SY8510-7 | 2 | 1P+N | 1.1 W | 8 | 308 g |
| 5SY8508-8 | 2 | 1P+N | 0.8 W | 15,5 | 0.302 kg |
| 5SY8203-7 | 2 | 2P | 1.3 W | 8 | 311 g |
| 5SY8202-8 | 2 | 2P | 1.2 W | 13,5 | 318 g |
| 5SY8202-7 | 2 | 2P | 1.2 W | 8 | 318 g |
| 5SY8201-8 | 2 | 2P | 1.1 W | 13 | 322 g |
| 5SY8201-7 | 2 | 2P | 1.2 W | 7,5 | 318 g |

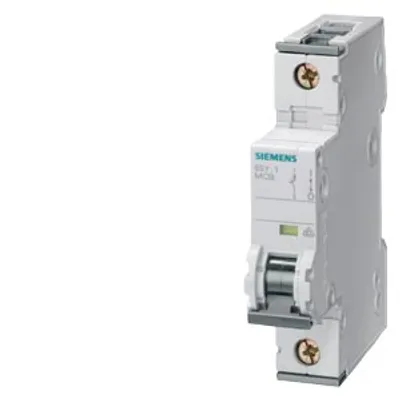

| 5SY8163-8 | 1 | 1P | 5 W | 12,5 | 170 g |
| 5SY8163-7 | 1 | 1P | 6 W | 7 | 175 g |
| 5SY8616-8 | 4 | 3P+N | 1.6 W | 14,5 | 601 g |
| 5SY8616-7 | 4 | 3P+N | 1.6 W | 8 | 597 g |
| 5SY8605-7 | 4 | 3P+N | 0.8 W | 8 | 639 g |
| 5SY8604-8 | 4 | 3P+N | 1.2 W | 13 | 605 g |
| 5SY8604-7 | 4 | 3P+N | 1.3 W | 7,5 | 611 g |
| 5SY8603-8 | 4 | 3P+N | 1.2 W | 14,5 | 621 g |
| 5SY8603-7 | 4 | 3P+N | 1.3 W | 8 | 621 g |

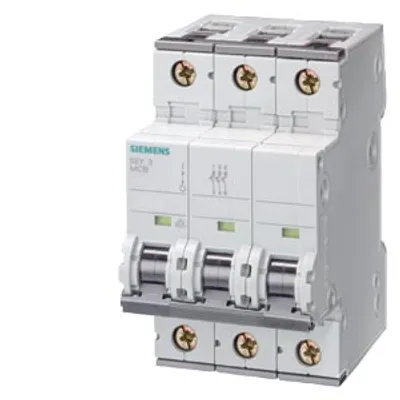

| 5SY7320-7 | 3 | 3P | 1.7 W | 7,5 | 467.5 g |
| 5SY7503-8 | 2 | 1P+N | 1.2 W | 14,5 | 313 g |
| 5SY7503-7 | 2 | 1P+N | 1.3 W | 8 | 315 g |

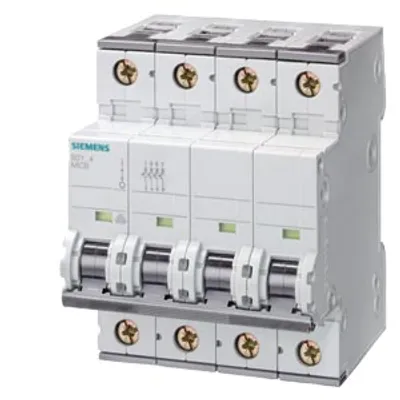

| 5SY7450-8 | 4 | 4P | 3.7 W | 14 | 638 g |
Common to all listed parts
| product designation | Miniature circuit breaker |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| supply voltage with single-phase operation at AC rated value | 230 V |
| value range of the supply voltage frequency | 50/60 Hz |
| protection class IP | IP20, with connected conductors |
