Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current — at 60 °C rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|

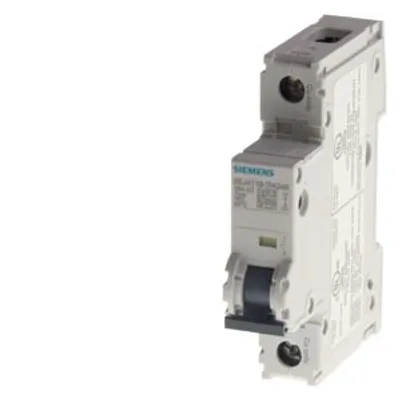

| 5SJ4106-7HG40 | 6 A | 5.7 A | 5.4 A | 2.7 W | 162 g |
| 5SJ4106-6HG40 | 6 A | 5.7 A | 5.4 A | 3 W | 0.162 kg |
| 5SJ4105-8HG42 | 0.5 A | 0.46 A | 0.42 A | 1.2 W | 178 g |
| 5SJ4104-7HG41 | 4 A | 3.8 A | 3.6 A | 1.8 W | 171 g |
| 5SJ4103-8HG40 | 3 A | 2.8 A | 2.6 A | 1.8 W | 161 g |
| 5SJ4102-8HG42 | 2 A | 1.88 A | 1.74 A | 1.8 W | 175 g |

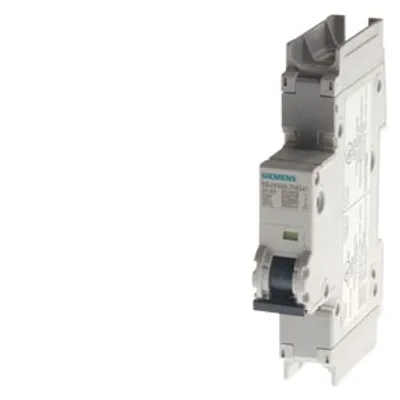

| 5SJ4102-8HG41 | 2 A | 1.88 A | 1.74 A | 1.8 W | 171 g |
| 5SJ4102-8HG40 | 2 A | 1.88 A | 1.74 A | 1.8 W | 163 g |

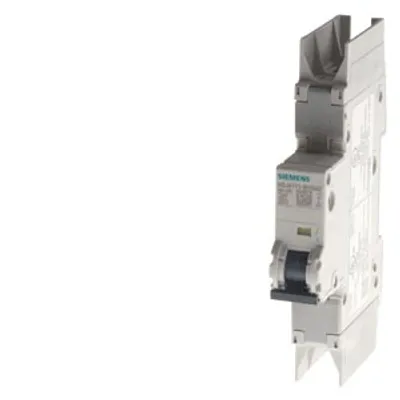

| 5SJ4102-7HG42-Z W11 | — | — | — | 1.8 W | 176 g |
| 5SJ4135-7HG41 | 35 A | 32.9 A | 30.8 A | 3.7 W | 0.172 kg |
| 5SJ4135-7HG40 | 35 A | 32.9 A | 30.8 A | 3.7 W | 165 g |
| 5SJ4135-6HG40 | 35 A | 32.9 A | 30.8 A | 3.7 W | 164 g |
| 5SJ4120-8HG41 | 20 A | 18.8 A | 17.6 A | 2.4 W | 172 g |
| 5SJ4120-8HG40 | 20 A | 18.8 A | 17.6 A | 2.4 W | 164 g |

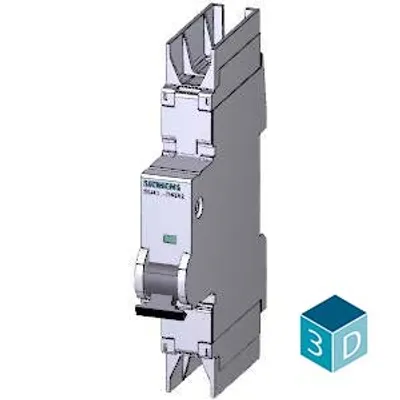

| 5SJ4120-7HG42 | 20 A | 18.8 A | 17.6 A | 2.4 W | 175 g |
| 5SJ4163-7HG40 | 63 A | 59.9 A | 56.7 A | 7.1 W | 176 g |
| 5SJ4163-6HG40 | 63 A | 59.9 A | 56.7 A | 7.1 W | 175 g |
| 5SJ4145-8HG41 | 45 A | 42.8 A | 41 A | 5.7 W | 176 g |
| 5SJ4145-8HG40 | 45 A | 42.8 A | 41 A | 5.7 W | 169 g |
| 5SJ4145-7HG41 | 45 A | 42.8 A | 41 A | 6.1 W | 178 g |

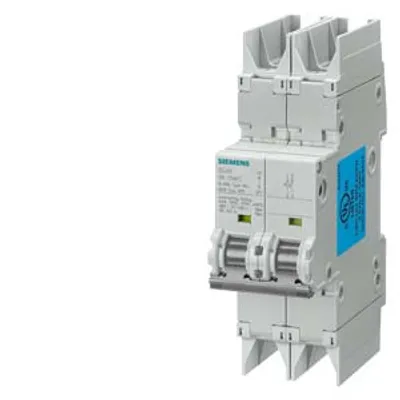

| 5SJ4240-7HG42 | 40 A | 38 A | 36 A | 4.8 W | 335 g |

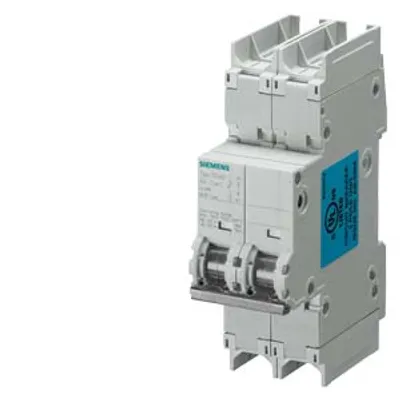

| 5SJ4232-7HG41 | 32 A | 30.4 A | 28.8 A | 3.9 W | 333 g |

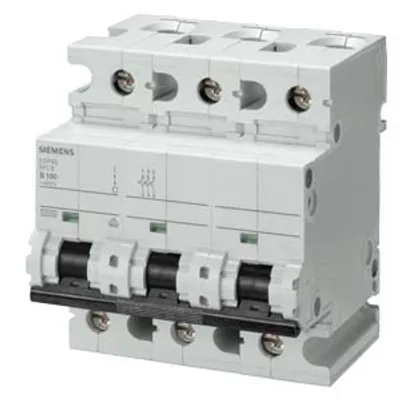

| 5SP4391-8 | 95 A | 89.5 A | 84 A | 8 W | 777 g |

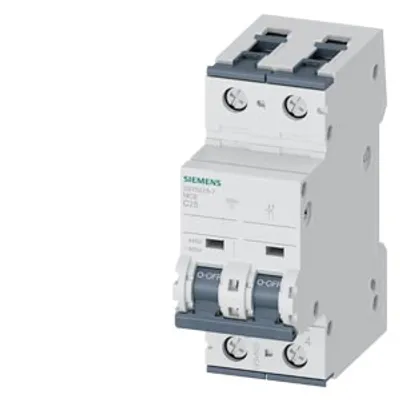

| 5SY5225-7 | 23.8 A | 22.55 A | 21.2 A | 2.2 W | 320 g |
Common to all listed parts
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| degree of pollution | 3 |
| product feature touch protection | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
