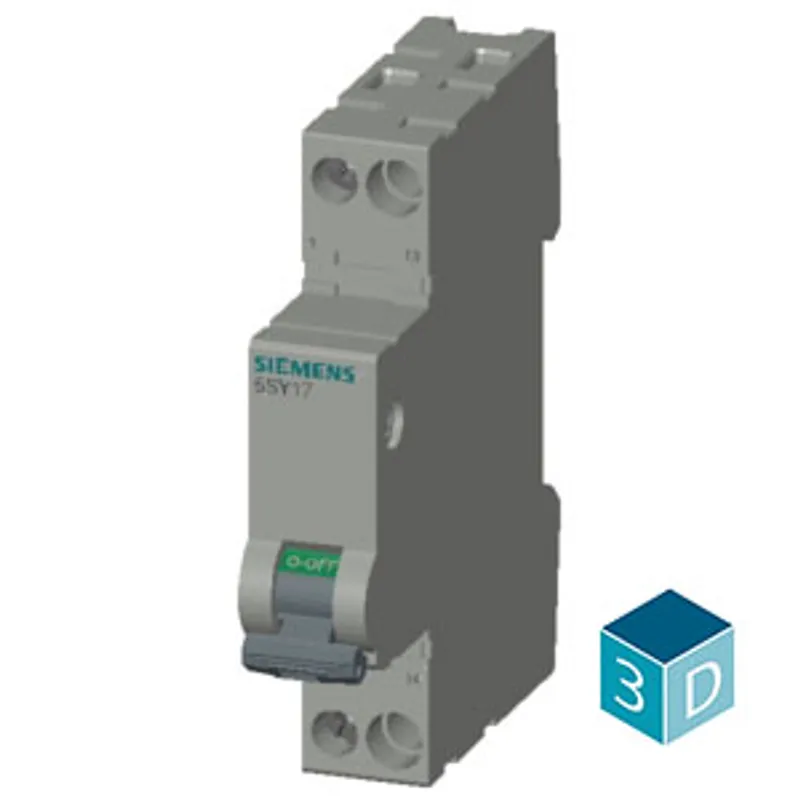

Siemens 5SY1710-4

Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F2 10A 230 V AC 50/60 Hz 60 V…

MPN
5SY1710-4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SY1710-4?

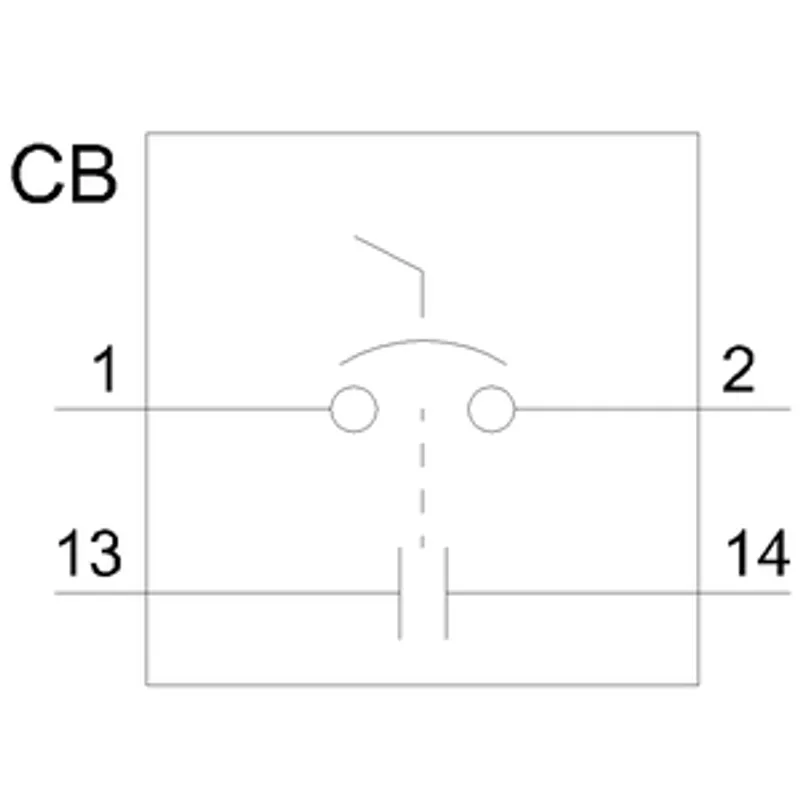

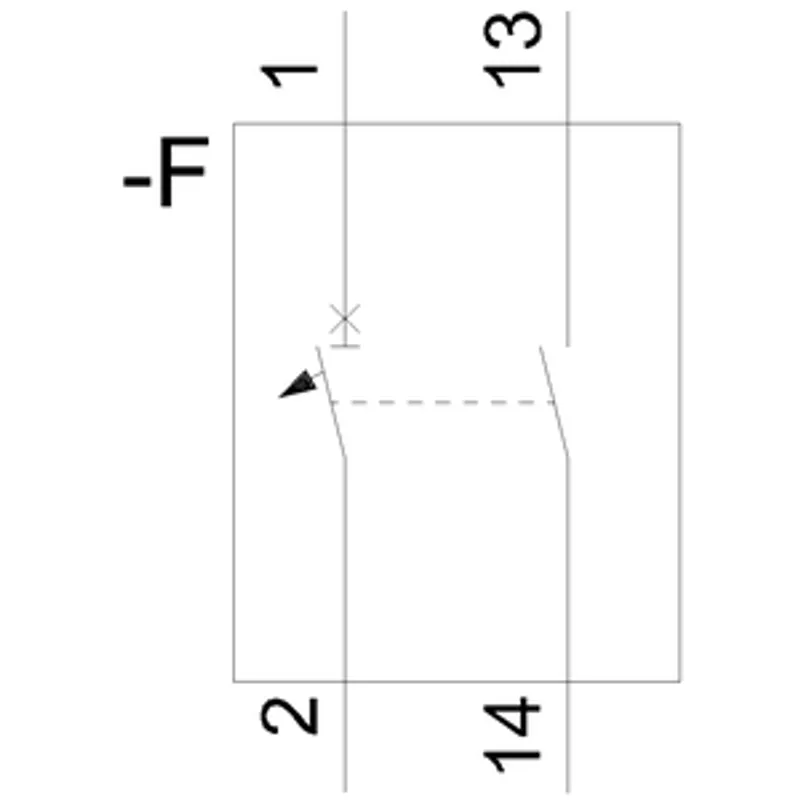

Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F2 10A 230 V AC 50/60 Hz 60 V DC Icn 3 kA AC according to IEC 60934

Specifications

Model

product brand nameSENTRON
product designationDevice protection switch

General technical data

number of poles1
design of pole1P+AS
tripping characteristic classF2
mechanical service life (operating cycles) typical6 000
overvoltage category3
degree of pollution2

Voltage

type of voltage of the operating voltageAC/DC
insulation voltage (Ui) — at DC rated value72 V
insulation voltage (Ui) — with single-phase operation at AC rated value250 V
operational current — at 40 °C rated value9.17 A
operational current — at 50 °C rated value8.64 A
operational current — at 55 °C rated value8.36 A
operational current — at 60 °C rated value8.08 A
operational current at AC rated value10 A

Supply voltage

supply voltage — at AC230 V
supply voltage — at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage at DC rated value maximum72 V

Protection class

protection class IPIP20

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2 W
suitability for operationResidential buildings/infrastructure

Product details

product feature touch protectionYes
product component — combined terminal topNo
product component — combined terminal bottomNo
product component — neutral conductor switchingNo
product feature properties for main switches in accordance with EN 60204-1Yes
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Connections

connectable conductor cross-section solid — minimum0.5 mm²
connectable conductor cross-section solid — maximum16 mm²
connectable conductor cross-section stranded — minimum0.5 mm²
connectable conductor cross-section stranded — maximum16 mm²
connectable conductor cross-section finely stranded with core end processing — minimum0.5 mm²
connectable conductor cross-section finely stranded with core end processing — maximum10 mm²
AWG number as coded connectable conductor cross section — minimum20
AWG number as coded connectable conductor cross section — maximum6
tightening torque [lbf·in] with screw-type terminals — minimum17.7 lbf·in
tightening torque with screw-type terminals — minimum2 N·m
tightening torque with screw-type terminals — maximum2.5 N·m
position of power supply cordAny

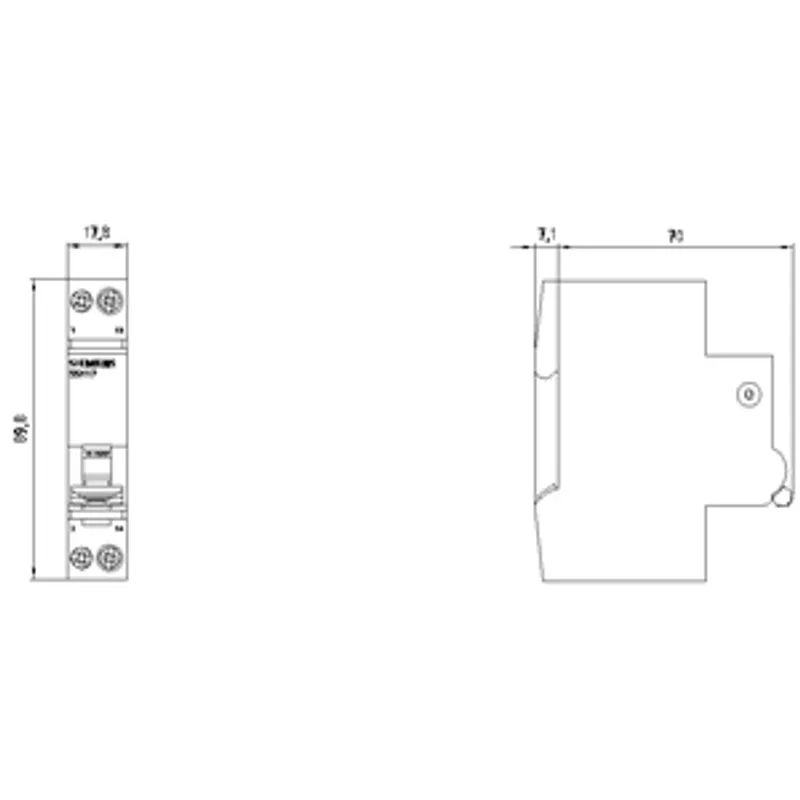

Mechanical Design

height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionHorizontal/vertical
Net Weight122 g

Environmental conditions

influence of the surrounding temperature30 °C @ 85%rF; 60 °C @ 20%rF"
standardIEC / DIN EN 60934, UL1077
vibration resistance according to IEC 60068-2-6Yes
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum60 °C
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum70 °C
number of test cycles for environmental testing according to IEC 60068-2-306

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SY1710-4: frequently asked questions

When can 5SY1710-4 be shipped?

5SY1710-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SY1710-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SY1710-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SY1710-4, subject to availability and destination.
