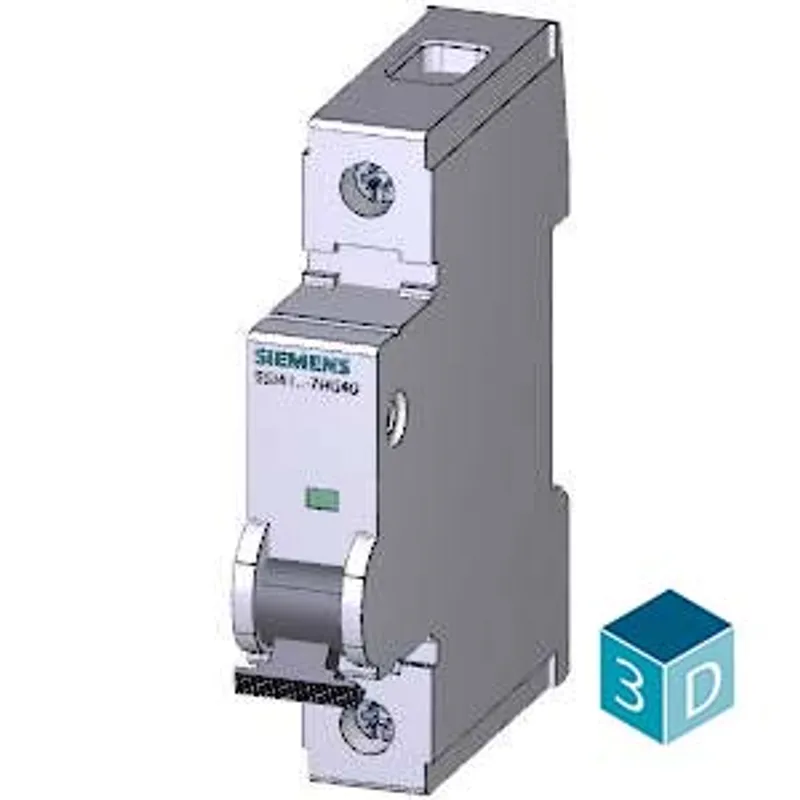

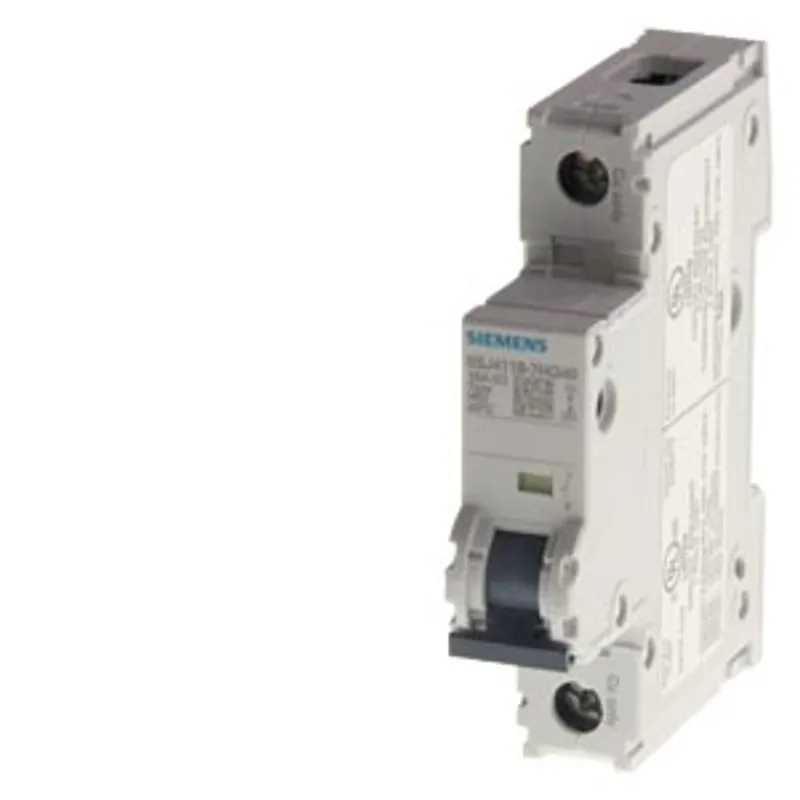

Siemens 5SJ4130-6HG40
Miniature circuit breaker 240 V 14kA, 1-pole, B, 30 A, D=70 mm according to UL 489, equal polarity
- MPN
- 5SJ4130-6HG40
- Category
- Basic Devices
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5SJ4130-6HG40?
Miniature circuit breaker 240 V 14kA, 1-pole, B, 30 A, D=70 mm according to UL 489, equal polarity
Specifications
Model
| product brand name | SENTRON |
| product designation | Miniature circuit breakers |
| design of the product | Miniature circuit-breaker 5SJ4 |
General technical data
| number of poles | 1 |
| design of pole | 1P |
| tripping characteristic class | B |
| mechanical service life (operating cycles) typical | 10 000 |
| installation environment regarding EMC | Suitable for environment B (immunity to interference not applicable) |
| reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750 | F |
| overvoltage category | 3 |
| degree of pollution | 3 |
Voltage
| insulation voltage (Ui) at AC rated value | 440 V |
| operational current — at 30 °C rated value | 30 A |
| operational current — at 40 °C rated value | 30 A |
| operational current — at 50 °C rated value | 28.2 A |
| operational current — at 55 °C rated value | 27.2 A |
| operational current — at 60 °C rated value | 26.4 A |
| operational current at AC rated value | 30 A |
Supply voltage
| supply voltage — at AC | 400 V |
| supply voltage — at DC rated value | 60 V |
| value range of the supply voltage frequency | 50/60 Hz |
| operating voltage — at AC according to UL 489 and CSA C22.2 No. 5-02 maximum | 120 V |
| operating voltage — at DC rated value maximum | 60 V |
| operating voltage — at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum | 60 V |
| supply voltage frequency rated value | 50 Hz |
Protection class
| protection class IP | IP 0 in the handle range |
Breaking Capacity
| switching capacity current — according to EN 60898 rated value | 10 kA |
| switching capacity current — according to IEC 60947-2 rated value | 15 kA |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 3.4 W |
Main circuit
| type of voltage supply at AC according to UL 489 and CSA C22.2 No. 5-02 | 240/120 |
| suitability for operation | Infrastructure / Industry |
Product details
| product feature touch protection | Yes |
| product component — tunnel terminals top | No |
| product component — tunnel terminals bottom | No |
| product component — combined terminal top | Yes |
| product component — combined terminal bottom | Yes |
| product component — neutral conductor switching | No |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
Product function
| set values setting current (Ii) for I-tripping | 4 |
| reference value setting current (Ii) for I-tripping | x In |
| product function note | Terminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in |
Short circuit
| short-circuit current breaking capacity (Icn) at AC according to UL 1077 and CSA C22.2 No.235 | 14 kA |
Connections
| connectable conductor cross-section finely stranded with core end processing — minimum | 0.75 mm² |
| connectable conductor cross-section finely stranded with core end processing — maximum | 25 mm² |
| tightening torque with screw-type terminals maximum | 3.5 N·m |
| position of power supply cord | Any |

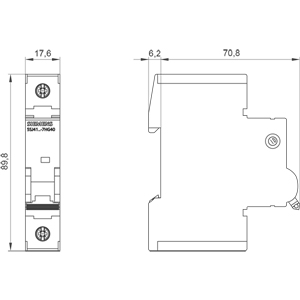

Mechanical Design
| height | 90 mm |
| width | 18 mm |
| depth | 70 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | on standard mounting rail |
| mounting position | any |
| Net Weight | 165.5 g |
Environmental conditions
| standard | IEC / EN 60947-2 / UL 489 |
| vibration resistance | 50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec) |
| vibration resistance according to IEC 60068-2-6 | ±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 55 °C |
| ambient temperature during operation | max. 95% humidity |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 75 °C |
