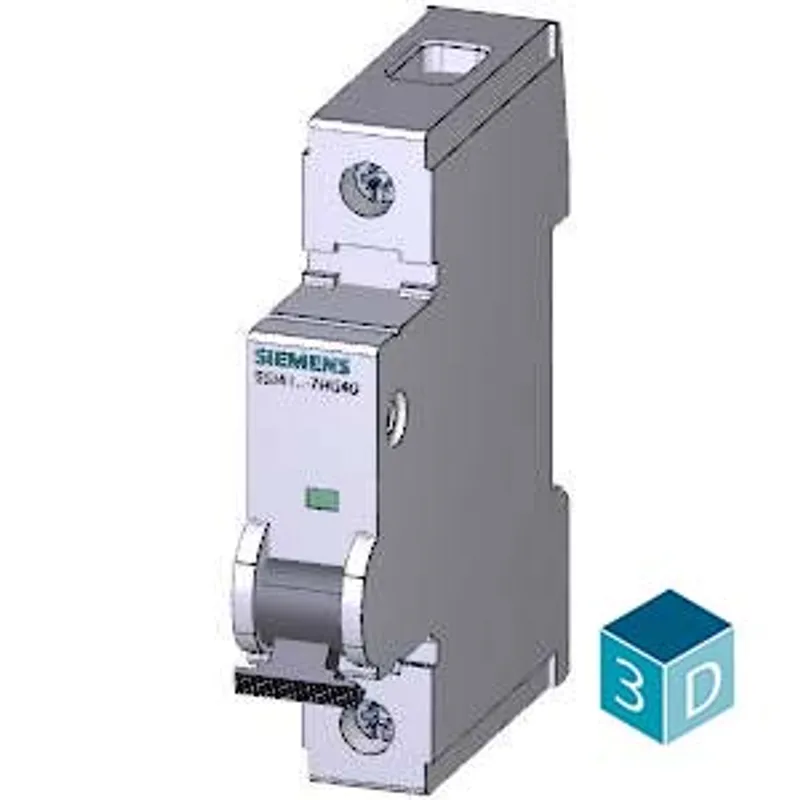

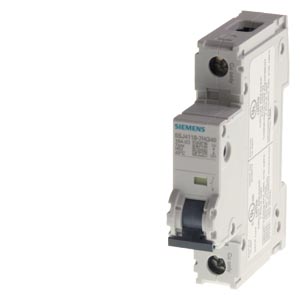

Siemens 5SJ4104-8HG40

Miniature circuit breaker 240 V 14kA, 1-pole, D, 4A, D=70 mm according to UL 489, equal polarity

MPN
5SJ4104-8HG40
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5SJ4104-8HG40?

Miniature circuit breaker 240 V 14kA, 1-pole, D, 4A, D=70 mm according to UL 489, equal polarity

Specifications

Model

product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4

General technical data

number of poles1
design of pole1P
tripping characteristic classD
mechanical service life (operating cycles) typical10 000
installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750F
overvoltage category3
degree of pollution3

Voltage

insulation voltage (Ui) at AC rated value440 V
operational current — at 30 °C rated value4 A
operational current — at 40 °C rated value4 A
operational current — at 50 °C rated value3.8 A
operational current — at 55 °C rated value3.7 A
operational current — at 60 °C rated value3.6 A
operational current at AC rated value4 A

Supply voltage

supply voltage — at AC400 V
supply voltage — at DC rated value60 V
operating voltage — at AC according to UL 489 and CSA C22.2 No. 5-02 maximum120 V
operating voltage — at DC rated value maximum60 V
operating voltage — at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum60 V
supply voltage frequency rated value50 Hz

Protection class

protection class IPIP 0 in the handle range

Breaking Capacity

switching capacity current — according to EN 60898 rated value10 kA
switching capacity current — according to IEC 60947-2 rated value15 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole1.6 W

Main circuit

type of voltage supply at AC according to UL 489 and CSA C22.2 No. 5-02240/120
suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes
product component — tunnel terminals topNo
product component — tunnel terminals bottomNo
product component — combined terminal topYes
product component — combined terminal bottomYes
product component — neutral conductor switchingNo
product feature halogen-freeYes
product feature sealableYes
product feature silicon-freeYes
product extension installable supplementary devicesYes

Product function

set values setting current (Ii) for I-tripping14
reference value setting current (Ii) for I-trippingx In
product function noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in

Short circuit

short-circuit current breaking capacity (Icn) at AC according to UL 1077 and CSA C22.2 No.23514 kA

Connections

connectable conductor cross-section finely stranded with core end processing — minimum0.75 mm²
connectable conductor cross-section finely stranded with core end processing — maximum25 mm²
tightening torque with screw-type terminals maximum3.5 N·m
position of power supply cordAny

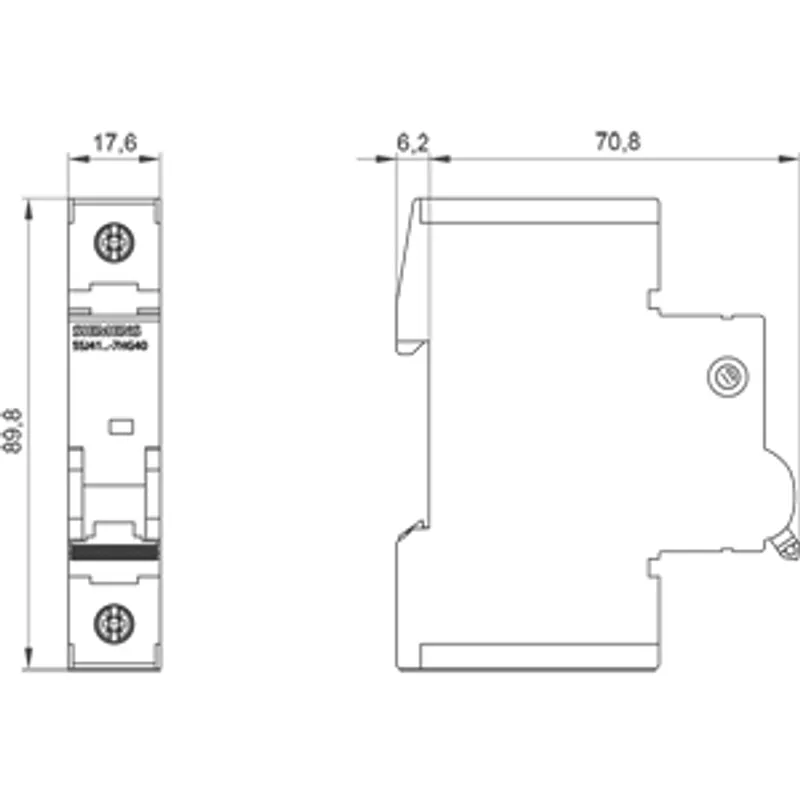

Mechanical Design

height90 mm
width18 mm
depth70 mm
installation depth70 mm
number of modular width units1
fastening methodon standard mounting rail
mounting positionany
Net Weight161 g

Environmental conditions

standardIEC / EN 60947-2 / UL 489
vibration resistance50 m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)
vibration resistance according to IEC 60068-2-6±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz
ambient temperature during operation — minimum-25 °C
ambient temperature during operation — maximum55 °C
ambient temperature during operationmax. 95% humidity
ambient temperature during storage — minimum-40 °C
ambient temperature during storage — maximum75 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5SJ4104-8HG40: frequently asked questions

When can 5SJ4104-8HG40 be shipped?

5SJ4104-8HG40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5SJ4104-8HG40 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5SJ4104-8HG40 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SJ4104-8HG40, subject to availability and destination.
