Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Connector 1: Number of pins | Sheath diameter | Length | Mass |
|---|---|---|---|---|---|
| DT2S-G-BK5M-PUR/0,75-DT2P-G | 70116635 | 2 | 5 mm | 5 m L | 179.5 g |
| DT2S-G-BK3M-PUR/0,75-DT2P-G | 70116634 | 2 | 5 mm | 3 m L | 15.97 g |
| DT3S-G-BK6M-PUR-O1-DT3P-G | 70117304 | 3 | 4.5 mm | 6 m L | 201.25 g |
| DT3S-G-BK10M-PUR-O1 | 70116641 | 3 | 4.5 mm | 10 m L | 280.3 g |
| DT3S-G-BK6M-PUR-O1 | 70116640 | 3 | 4.5 mm | 6 m L | 194.29 g |
| DT3S-G-BK10M-PUR-O1-DT3P-G | 70116644 | 3 | 4.5 mm | 10 m L | — |
| DT3S-G-BK5M-PUR-O1-DT3P-G | 70116643 | 3 | 4.5 mm | 5 m L | 117.79 g |
| DT3S-G-BK3M-PUR-O1-DT3P-G | 70116642 | 3 | 4.5 mm | 3 m L | — |
| DT3P-G-BK10M-PUR-O1 | 70116646 | 3 | 4.5 mm | 10 m L | — |
| DT3P-G-BK6M-PUR-O1 | 70116645 | 3 | 4.5 mm | 6 m L | — |
| V15-G-10M-PUR-ABG5 | 70126954 | 5 | 4.8 mm | 10 m L | 355.3 g |
| V1-W-E8-BK30M-PUR-U-V1-G | 240784-100003 | 4 | 4.3 mm | 30 m L | 803 g |
| V1-W-E8-BK0,6M-PUR-U-V1-G | 240784-100020 | 4 | 4.3 mm | 0.6 m L | 38.27 g |
| V1-W-E8-BK25M-PUR-U | 240003-100004 | 4 | 4.3 mm | 25 m L | 686 g |

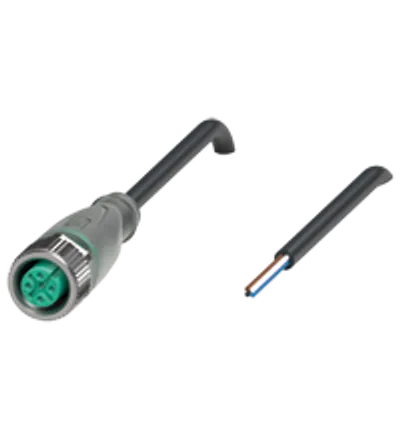

| V1-G-E8-BK25M-PUR-U | 240002-100007 | 4 | 4.3 mm | 25 m L | 670 g |
| V1-G-E8-BK15M-PUR-U | 240002-100005 | 4 | 4.3 mm | 15 m L | 370.67 g |

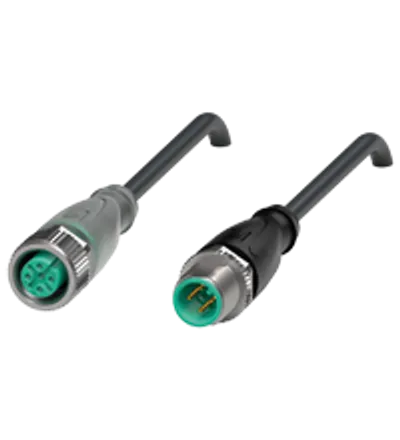

| V1-G-E8-BK10M-PUR-U-V1-G | 240783-100003 | 4 | 4.3 mm | 10 m L | 288.75 g |
| V1-G-E8-BK5M-PUR-U-V1-G | 240783-100002 | 4 | 4.3 mm | 5 m L | 150.07 g |
| V1-G-E8-BK3M-PUR-U-V1-G | 240783-100001 | 4 | 4.3 mm | 3 m L | 100.79 g |
| V1-G-E8-BK1M-PUR-U-V1-G | 240783-100000 | 4 | 4.3 mm | 1 m L | 48.18 g |
| V1-G-E8-BK5M-PUR-U | 240002-100006 | 4 | 4.3 mm | 5 m L | 129.5 g |

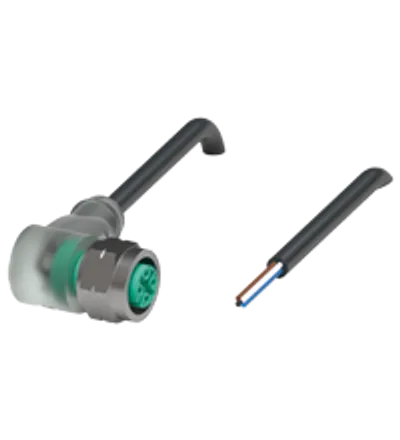

| V1-WV4A-A2-BK5M-PUR-U | 70123663 | 4 | 4.3 mm | 5 m L | 145.75 g |
| V1-WV4A-A2-BK10M-PUR-U | 70123666 | 4 | 4.3 mm | 10 m L | 272.9 g |
| V1-WV4A-25M-PP-W1 | 70125867 | — | ∅ 4.7 mm | 25 m L | 0.96 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Pollution degree | 3 |
