Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath diameter | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V15S-G-VT1M-PUR-U/CAN | 70115274 | 6.1 mm | 1 m L | Li 9Y 11Y 4 x 0.34 | 66.75 g |

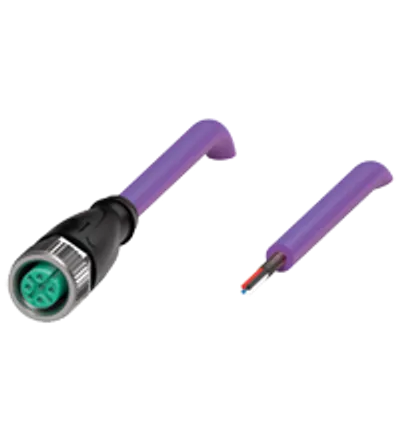

| V15-G-VT1,5M-PUR-U/CAN | 70114140 | 6.1 mm | 1.5 m L | Li 9Y 11Y 4 x 0.34 | 90.27 g |

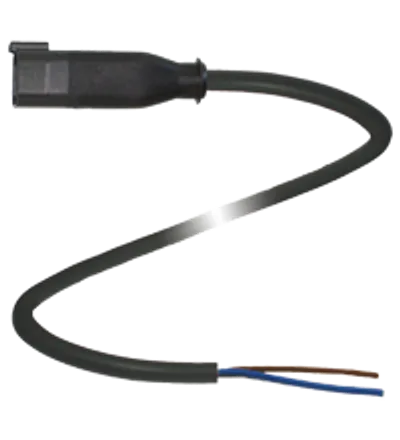

| DT2P-G-BK0,5M-PUR/0,75 | 70128056 | 5 mm | 0.5 m L | Li 9Y 11Y 2 x 0.75 | 24.9 g |

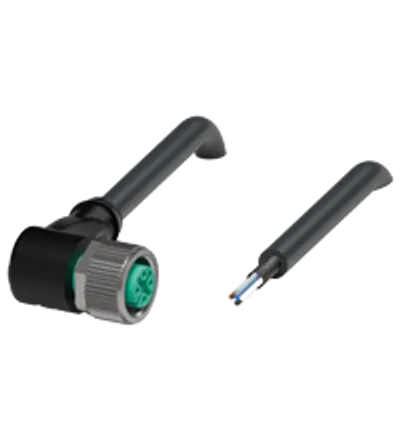

| V15-W-BK5M-PUR-U/ABG | 240005-100012 | 6 mm | 5 m L | Li F 9Y C11Y 5 x 0,34 | 252.29 g |
| V15-G-BK12M-PUR-U/ABG | 240004-100025 | 6 mm | 12 m L | Li F 9Y C11Y 5 x 0,34 | 574 g |
| V15-G-BK10M-PUR-U/ABG | 240004-100024 | 6 mm | 10 m L | Li F 9Y C11Y 5 x 0,34 | 469 g |
| V15-G-BK5M-PUR-U/ABG | 240004-100028 | 6 mm | 5 m L | Li F 9Y C11Y 5 x 0,34 | 262 g |
| V1-G-BK10M-PUR-U/ABG | 240004-100033 | 4.9 mm | 10 m L | Li F 9Y C11Y 4 x 0,34 | 382.7 g |
| V31-GM-BK0,6M-PUR-U-V3-GM | 70127372 | 4.3 mm | 0.6 m L | Li F 9Y 11Y 3 x 0,34 | 24.79 g |
| V1-W-1,5M-PUR-ABG-V1-G | 240788-100007 | 4.8 mm | 1.5 m L | Li 9Y 11YM 4 x 0.34 | 80.5 g |
| V1-W-0,5M-PUR-ABG-V1-G | 240788-100003 | 4.8 mm | 0.5 m L | Li 9Y 11YM 4 x 0.34 | 44.71 g |
| V1-G-60M-PUR-ABG-V1-G | 240787-100014 | 4.8 mm | 60 m L | Li 9Y 11YM 4 x 0.34 | 2170 g |
| V1-G-40M-PUR-ABG-V1-G | 240787-100013 | 4.8 mm | 40 m L | Li 9Y 11YM 4 x 0.34 | 1406 g |
| V1-G-30M-PUR-ABG-V1-G | 240787-100012 | 4.8 mm | 30 m L | Li 9Y 11YM 4 x 0.34 | 1062.8 g |
| V1-G-6M-PUR-ABG-V1-G | 240787-100008 | 4.8 mm | 6 m L | Li 9Y 11YM 4 x 0.34 | 231.85 g |
| V1-G-0,7M-PUR-ABG-V1-G | 240787-100007 | 4.8 mm | 0.7 m L | Li 9Y 11YM 4 x 0.34 | 52.12 g |
| V19-G-20M-PUR-ABG | 70113963 | 6 mm | 20 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 907.5 g |
| DT2P-G-BK10M-PUR/0,75 | 70116639 | 5 mm | 10 m L | Li 9Y 11Y 2 x 0.75 | — |
| DT2P-G-BK6M-PUR/0,75 | 70116638 | 5 mm | 6 m L | Li 9Y 11Y 2 x 0.75 | — |
| DT2P-G-BK3M-PUR/0,75 | 70116637 | 5 mm | 3 m L | Li 9Y 11Y 2 x 0.75 | 110 g |

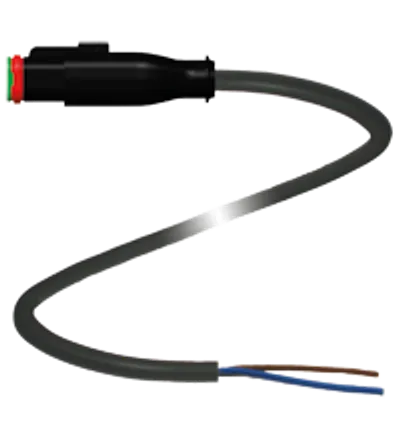

| DT2S-G-BK10M-PUR/0,75 | 70116633 | 5 mm | 10 m L | Li 9Y 11Y 2 x 0.75 | 334.5 g |
| DT2S-G-BK6M-PUR/0,75 | 70116632 | 5 mm | 6 m L | Li 9Y 11Y 2 x 0.75 | 206 g |
| DT2S-G-BK3M-PUR/0,75 | 70116631 | 5 mm | 3 m L | Li 9Y 11Y 2 x 0.75 | 107.6 g |
| DT2S-G-BK10M-PUR/0,75-DT2P-G | 70116636 | 5 mm | 10 m L | Li 9Y 11Y 2 x 0.75 | 343.8 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | EN 60529 |
| Pollution degree | 3 |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Core insulation | PP |
