Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V1-G-0,5M-PVC-ABG-V19-G-Y32209 | 322090 | max. 25 N / 100 mm | 0.5 m L | Li 9Y YM 4 x 0,34 | 45.75 g |
| V1-G-OR0,3M-POC-V1-W | 240778-100026 | max. 50 N / 300 mm | 0.3 m L | Li 7Y 41X 4 x 0,34 | 36 g |

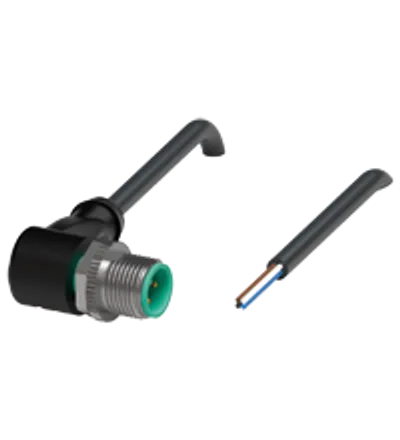

| V1S-W-BK5M-PVC-U | 240772-100013 | max. 50 N / 300 mm | 5 m L | Li YY 4 x 0,34 | 162 g |
| V1S-W-BK10M-PVC-U | 240772-100014 | max. 50 N / 300 mm | 10 m L | Li YY 4 x 0,34 | 309 g |
| V1S-W-BK2M-PUR-U | 240772-100015 | max. 80 N / 300 mm | 2 m L | Li 9Y 11Y 4 x 0.34 | 62.39 g |
| V1S-W-BK10M-PUR-U | 240772-100017 | max. 80 N / 300 mm | 10 m L | Li 9Y 11Y 4 x 0.34 | 276 g |
| V31-WM-OR0,6M-POC-V1-G | 240798-100007 | max. 50 N / 300 mm | 0.6 m L | Li 7Y 41X 4 x 0,34 | 41 g |
| V1-G-S-BK20M-PUR-A-V1-G | 318232 | max. 80 N / 300 mm | 20 m L | Li F 9Y 11Y 4 x 0,34 | 548.65 g |
| V1-G-S-BK15M-PUR-A-V1-G | 318231 | max. 80 N / 300 mm | 15 m L | Li F 9Y 11Y 4 x 0,34 | 413.88 g |
| V1-W-E2-YE15M-PVC-U | 318112 | max. 50 N / 300 mm | 15 m L | Li YY 3 x 0,34 | 417.46 g |
| V19-G-3M-PUR-ABG | 317960 | max. 100 N / 300 mm | 3 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 169.35 g |
| V31-GM-OR5M-POC-V31-GM | 317601 | max. 50 N / 300 mm | 5 m L | Li 7Y 41X 4 x 0,34 | 199 g |
| V31-GM-OR2M-POC-V31-GM | 317599 | max. 50 N / 300 mm | 2 m L | Li 7Y 41X 4 x 0,34 | 88.5 g |
| V11-W-BK0,3M-PUR-O1-DT4P-G-Y31 | 316347 | — | 0.3 m L | Li 9Y 11Y 4 x 0,50 | 35 g |
| V1-WV4A-15M-PUR | 240768-100002 | max. 60 N / 500 mm | 15 m L | Li 9Y 11YM 4 x 0.34 | 434.8 g |
| V19-W-10M-PUR-ABG | 251796 | max. 100 N / 300 mm | 10 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 538.33 g |
| V1-G-S-BK30M-PUR-A | 315709 | max. 80 N / 300 mm | 30 m L | Li F 9Y 11Y 4 x 0,34 | 786.67 g |

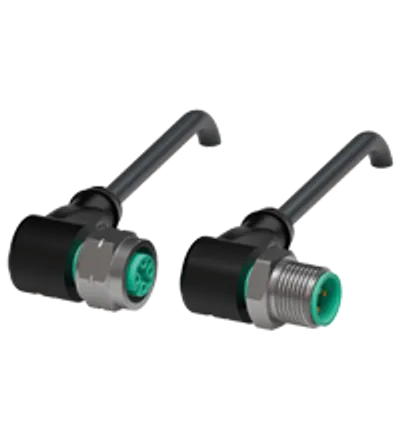

| V1-WV4A-BK0,3M-PUR-U-V1-WV4A | 314828 | max. 80 N / 300 mm | 0.3 m L | Li 9Y 11Y 4 x 0.34 | 31 g |
| V19-G-BK10M-PVC-U/ABG-Y279548 | 279548 | max. 80 N / 300 mm | 10 m L | Li Y CY 8 x 0,25 | 598 g |
| V1-G-BK0,3M-PUR-O1-DT4P-G | 305187 | max. 50 N / 300 mm | 0.3 m L | Li 9Y 11Y 4 x 0,50 | 37.23 g |
| V19-G-BK2M-PVC-U/ABG-Y282836 | 282836 | max. 80 N / 300 mm | 2 m L | Li Y CY 8 x 0,25 | 130 g |
| V11-W-BK3M-PUR-U | 239999-100017 | max. 80 N / 300 mm | 3 m L | Li F 9Y 11Y 3 x 0,34 | 88 g |
| V11-W-BK1,5M-PUR-U-V3-GM | 240796-0003 | max. 80 N / 300 mm | 1.5 m L | Li F 9Y 11Y 3 x 0,34 | 54 g |
| V1-G-BK0,15M-PUR-U-V31-GM | 70128475 | max. 80 N / 300 mm | 0.15 m L | Li 9Y 11Y 4 x 0.34 | 18.37 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Pollution degree | 3 |
