Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Length | Cable code | Mass |
|---|---|---|---|---|---|

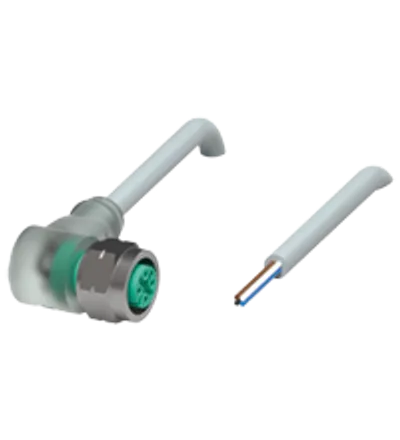

| V1-WV4A-A2-10M-PVC | 108165 | max. 24 V DC -20 % / +25 % UB | 10 m L | Li Y YM 4 x 0,34 | 330.95 g |

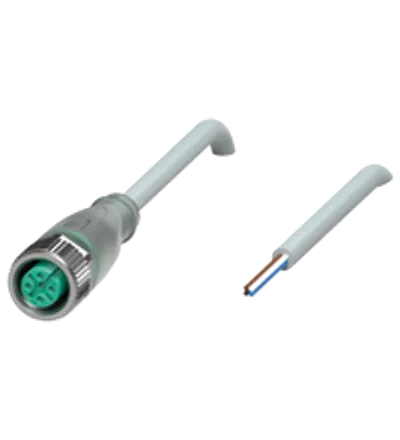

| V1-G-A2-20M-PUR | 198878 | max. 24 V DC -20 % / +25 % UB | 20 m L | Li 9Y 11YM 4 x 0.34 | 610 g |
| V1-G-A2-5M-PUR | 198876 | max. 24 V DC -20 % / +25 % UB | 5 m L | Li 9Y 11YM 4 x 0.34 | 160.2 g |
| V1-G-A2-2M-PUR | 198875 | max. 24 V DC -20 % / +25 % UB | 2 m L | Li 9Y 11YM 4 x 0.34 | 58.77 g |
| V1-G-A2-10M-PUR | 198877 | max. 24 V DC -20 % / +25 % UB | 10 m L | Li 9Y 11YM 4 x 0.34 | 281.1 g |
| V1-G-15M-PUR-ABG-V1-W | 201627 | max. 250 V AC/DC UB | 15 m L | Li 9Y 11YM 4 x 0.34 | 560 g |
| V1-G-12M-PUR-ABG-V1-W | 202447 | max. 250 V AC/DC UB | 12 m L | Li 9Y 11YM 4 x 0.34 | 401 g |
| V1-G-3M-PUR-ABG-V1-W | 201628 | max. 250 V AC/DC UB | 3 m L | Li 9Y 11YM 4 x 0.34 | 134 g |
| V1-G-1,3M-PUR-ABG-V1-W | 204135 | max. 250 V AC/DC UB | 1.3 m L | Li 9Y 11YM 4 x 0.34 | 72.3 g |
| V1-G-80M-PUR-ABG-V1-W | 198972 | max. 250 V AC/DC UB | 80 m L | Li 9Y 11YM 4 x 0.34 | 2827.88 g |
| V1-G-50M-PUR-ABG-V1-W | 198716 | max. 250 V AC/DC UB | 50 m L | Li 9Y 11YM 4 x 0.34 | 1783 g |
| V1-G-40M-PUR-ABG-V1-W | 186189 | max. 250 V AC/DC UB | 40 m L | Li 9Y 11YM 4 x 0.34 | 1396.5 g |
| V1-G-30M-PUR-ABG-V1-W | 198715 | max. 250 V AC/DC UB | 30 m L | Li 9Y 11YM 4 x 0.34 | 1094 g |
| V1-G-0,6M-PUR-ABG-V1-W | 192732 | max. 250 V AC/DC UB | 0.6 m L | Li 9Y 11YM 4 x 0.34 | 48.09 g |
| V1-W-3M-PUR-V1-G | 205698 | max. 250 V AC/DC UB | 3 m L | Li 9Y 11YM 4 x 0.34 | 106.17 g |
| V1S-G-20M-PVC | 192024 | max. 250 V AC/DC UB | 20 m L | Li Y YM 4 x 0,34 | 697.27 g |
| V1S-G-5M-PVC | 198744 | max. 250 V AC/DC UB | 5 m L | Li Y YM 4 x 0,34 | 184 g |
| V15S-G-0,33-PUR | 192746 | max. 48 V AC / 60 V DC UB | 0.33 m L | Li 9Y 11YM 5 x 0.34 | 19.47 g |
| V15S-G-5M-PUR | 206721 | max. 48 V AC / 60 V DC UB | 5 m L | Li 9Y 11YM 5 x 0.34 | 164.45 g |

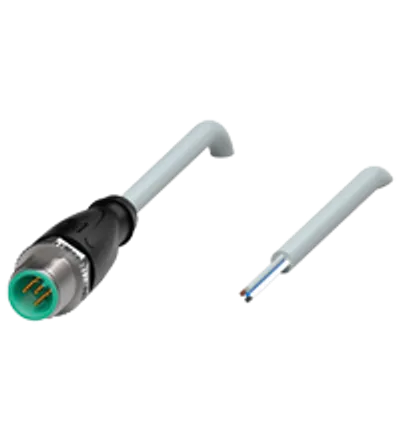

| V15S-G-10M-PVC | 201131 | max. 48 V AC / 60 V DC UB | 10 m L | Li Y YM 5 x 0,34 | 385 g |
| V15S-G-5M-PVC | 201130 | max. 48 V AC / 60 V DC UB | 5 m L | Li Y YM 5 x 0,34 | 198 g |

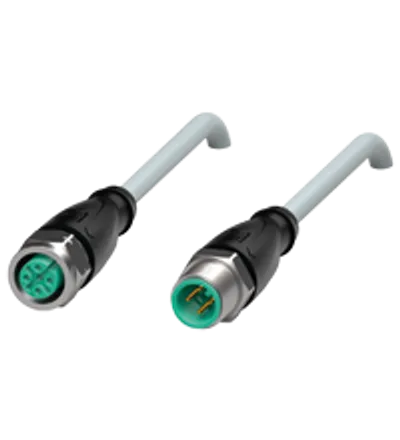

| V1-GV4A-0,6M-PVC-V1-GV4A | 207416 | max. 250 V AC/DC UB | 0.6 m L | Li Y YM 4 x 0,34 | 44 g |
| V15-G-12M-PUR-ABG | 206948 | max. 48 V AC / 60 V DC UB | 12 m L | Li 9Y 11YM 5 x 0.34 | 445 g |
| V15-G-4M-PUR-ABG | 206947 | max. 48 V AC / 60 V DC UB | 4 m L | Li 9Y 11YM 5 x 0.34 | 165 g |
Common to all listed parts
| Connector 1: Construction type | M12 |
| Connector 1: Locking | screw connection |
| Connector 1: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Operating current | max. 4 A IB |
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
