Sensor-Actuator Cables Parts
Compare Sensor-Actuator Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sheath stripping force | Length | Cable code | Mass |
|---|---|---|---|---|---|
| V1-W-A2-10M-PVC | 210596 | max. 80 N / 300 mm | 10 m L | Li Y YM 4 x 0,34 | 358.33 g |
| V3-GM-2M-PUR-V11-G | 210857 | max. 80 N / 500 mm | 2 m L | Li 9Y 11Y 3 x 0,25 | 53.5 g |
| V11-G-5M-PUR-V3-GM | 203366 | max. 10 N / 50 mm | 5 m L | Li 9Y 11YM 3 x 0.34 | 146.55 g |
| V11-G-3M-PUR-V3-GM | 203367 | max. 10 N / 50 mm | 3 m L | Li 9Y 11YM 3 x 0.34 | 78.8 g |
| V11-G-10M-PUR-V3-GM | 203365 | max. 10 N / 50 mm | 10 m L | Li 9Y 11YM 3 x 0.34 | 224.28 g |
| V11-G-0,6M-PUR-V3-GM | 210858 | max. 10 N / 50 mm | 0.6 m L | Li 9Y 11YM 3 x 0.34 | 32.05 g |
| V11-W-3M-PUR-V3-GM | 211561 | max. 10 N / 50 mm | 3 m L | Li 9Y 11YM 3 x 0.34 | 96.5 g |
| V11-W-2M-PUR-V3-GM | 200871 | max. 10 N / 50 mm | 2 m L | Li 9Y 11YM 3 x 0.34 | 72.73 g |
| V11-W-0,6M-PUR-V3-GM | 210888 | max. 10 N / 50 mm | 0.6 m L | Li 9Y 11YM 3 x 0.34 | 33.23 g |
| V15-G-20M-PUR-ABG | 210029 | max. 100 N / 300 mm | 20 m L | Li 9Y 11YM 5 x 0.34 | 700.13 g |
| V1-W-OR15M-POC-V1-G | 240776-100024 | max. 50 N / 300 mm | 15 m L | Li 7Y 41X 4 x 0,34 | 560 g |
| V1-G-OR5M-POC-V1-G | 221853 | max. 50 N / 300 mm | 5 m L | Li 7Y 41X 4 x 0,34 | 207.85 g |
| V3-GM-0,6M-PUR-V11-G | 213932 | max. 80 N / 500 mm | 0.6 m L | Li 9Y 11Y 3 x 0,25 | 30.13 g |
| V38S-G-10M-PUR-ABG | 214223 | — | — | — | 446 g |

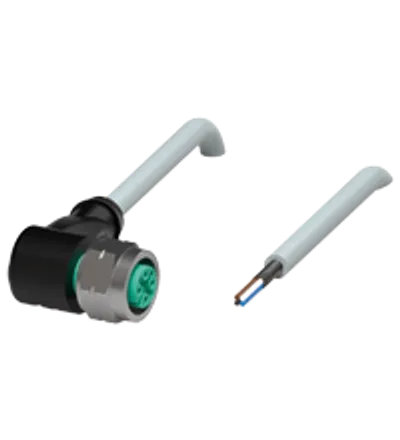

| V1-WV4A-10M-PUR-ABG0 | 214222 | max. 100 N / 300 mm | 10 m L | Li 9Y 11YM 4 x 0.34 | 368.5 g |

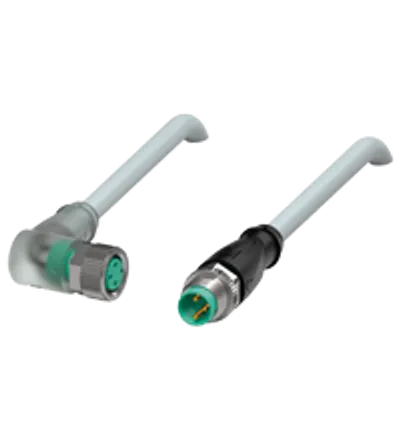

| V3-WM-E2-2M-PUR-V3-GM | 195677 | max. 80 N / 500 mm | 2 m L | Li 9Y 11Y 3 x 0,25 | 63.45 g |
| V95-W-5M-PVC | 194168 | — | — | — | 371.7 g |
| V11-W-25M-PUR-V11-G | 214867 | max. 10 N / 50 mm | 25 m L | Li 9Y 11YM 3 x 0.34 | 683 g |
| V11-W-15M-PUR-V11-G | 214866 | max. 10 N / 50 mm | 15 m L | Li 9Y 11YM 3 x 0.34 | 383.25 g |

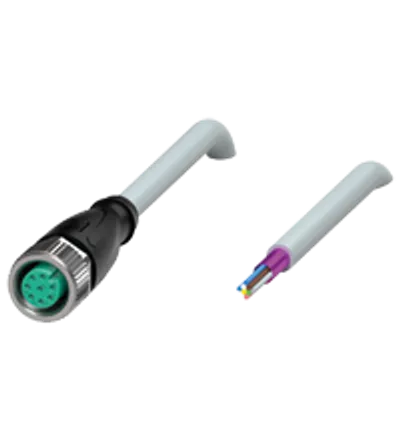

| V17-G-20M-PUR | 203407 | max. 100 N / 300 mm | 20 m L | Li 9Y V1 C V1 11Y 8 x 0,25 | 1058.87 g |
| V15-G-1M-PUR-V15-G | 210413 | max. 60 N / 500 mm | 1 m L | Li 9Y 11YM 5 x 0.34 | 52.67 g |
| V15-G-30M-PUR | 210028 | max. 60 N / 500 mm | 30 m L | Li 9Y 11YM 5 x 0.34 | 965 g |
| V15-G-20M-PUR | 210027 | max. 60 N / 500 mm | 20 m L | Li 9Y 11YM 5 x 0.34 | 642 g |
| V1-WV4A-A2-25M-PVC | 208625 | max. 80 N / 300 mm | 25 m L | Li Y YM 4 x 0,34 | 894.17 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
