Pepperl Fuchs V15-W-A2-20M-PUR – Female cordset
MPN: V15-W-A2-20M-PUR · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V15-W-A2-20M-PUR be shipped?
V15-W-A2-20M-PUR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V15-W-A2-20M-PUR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V15-W-A2-20M-PUR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15-W-A2-20M-PUR, subject to availability and destination.
• Built-in LED, as operating and function indicator
• Degree of protection IP66 / IP68 / IP69
• Resistant to microbes and hydrolysis
• Halogen-free
• Specific design protects against loosening and inaccurate installation

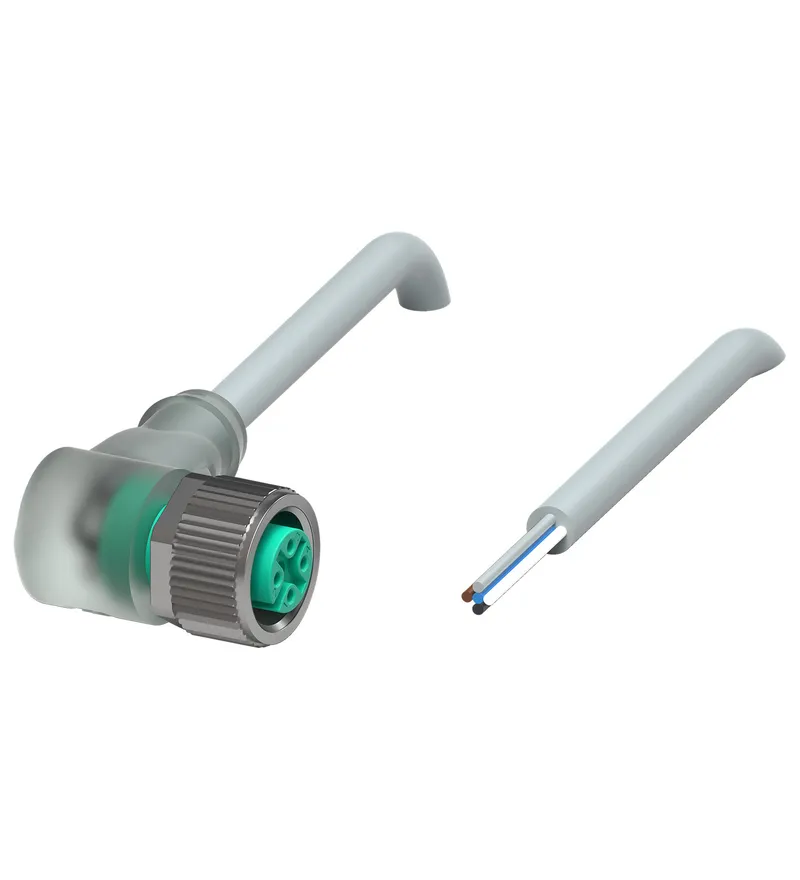

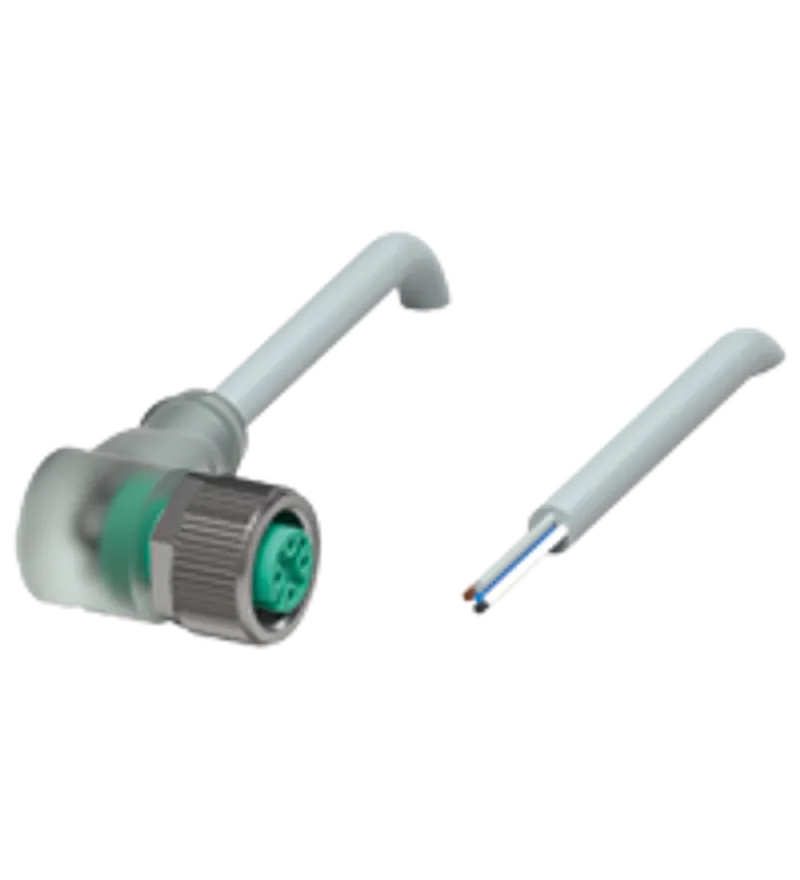

Female cordset single-ended M12 angled A-coded, LED 5-pin, PUR cable grey
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 288053 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 5 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | Operating display |
| LED yellow | Functional display pin 4 |
Electrical specifications
| Operating voltage | max. 24 V DC -20 % / +25 % UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | IEC 60754-1 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |

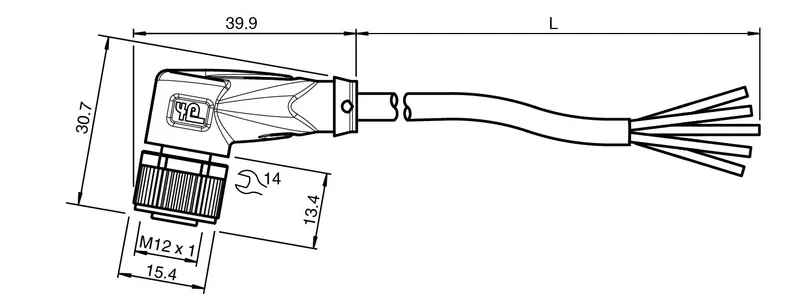

Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation |
| Sheath stripping force | max. 60 N / 500 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 5 |
| Core cross section | 0.34 mm2 |

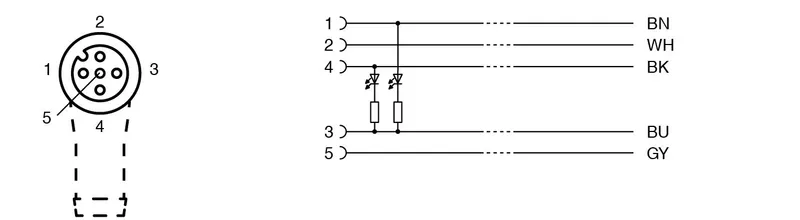

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey |
| Core construction | 19 x 0.15 mm ∅ |
| Length | 20 m L |
| Cable code | Li 9Y 11YM 5 x 0.34 |
| Drag chain suitability: Drag chain cycles | max. 50 / day |
| Drag chain suitability: Motion velocity | max. 0.3 m/s |
| Mass | 578.63 g |
Material
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, transparent |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V15-W-A2-20M-PUR |
CAD & dimension drawings
| 3-D model (STEP) V15-W-A2-20M-PUR | STP · 4.0 MB |
Certificates (2)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 347 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 223 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

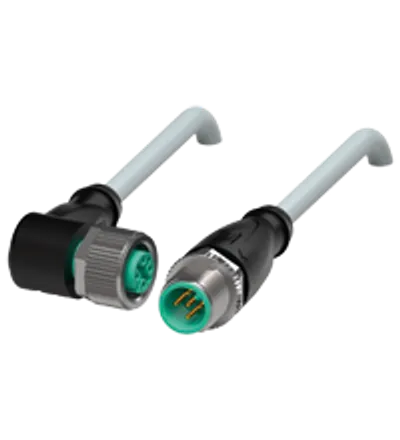

Available on requestConnection cable V15-W-60M-PVC-V15-GMPN: V15-W-60M-PVC-V15-G · Pepperl Fuchs
Price on request
Request a quote

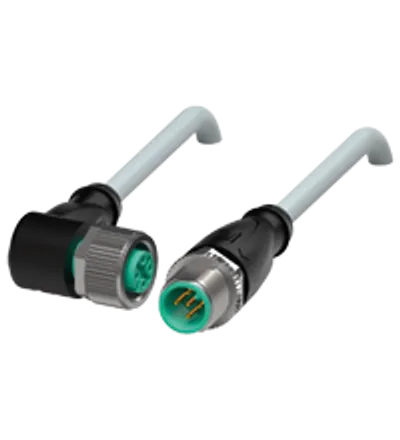

Available on requestConnection cable, shielded V15-W-6M-PUR-ABG-V15-GMPN: V15-W-6M-PUR-ABG-V15-G · Pepperl Fuchs
Price on request
Request a quote

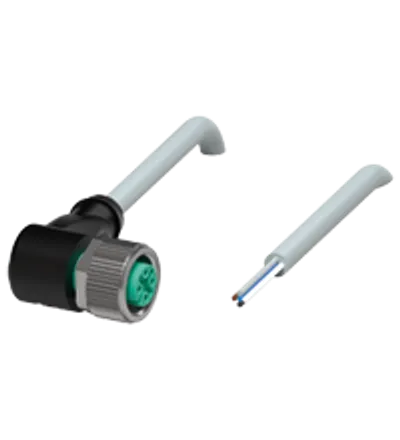

Available on requestFemale cordset V15-W-7M-PVCMPN: V15-W-7M-PVC · Pepperl Fuchs
Price on request
Request a quote

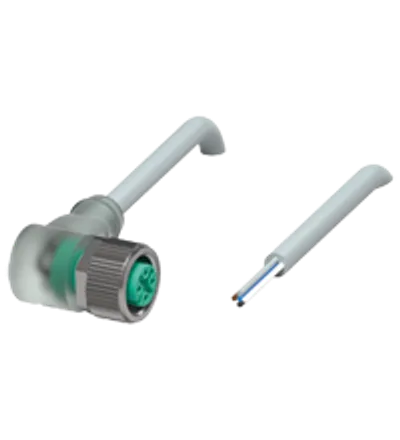

Available on requestFemale cordset V15-W-A2-10M-PURMPN: V15-W-A2-10M-PUR · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestFemale cordset V15-W-A2-5M-PURMPN: V15-W-A2-5M-PUR · Pepperl Fuchs
Price on request
Request a quote

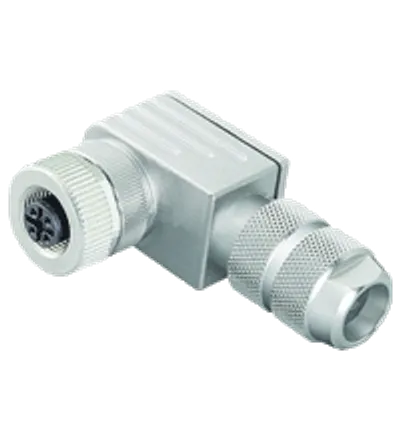

Available on requestFemale connector, field-attachable V15-W-ABG-PG9MPN: V15-W-ABG-PG9 · Pepperl Fuchs
Price on request
Request a quote

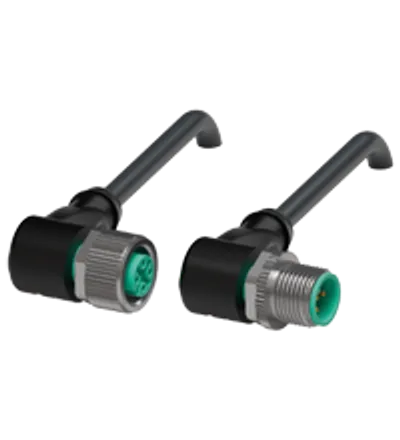

Available on requestConnection cable V15-W-BK0,3M-PUR-U-V15-WMPN: V15-W-BK0,3M-PUR-U-V15-W · Pepperl Fuchs
Price on request
Request a quote

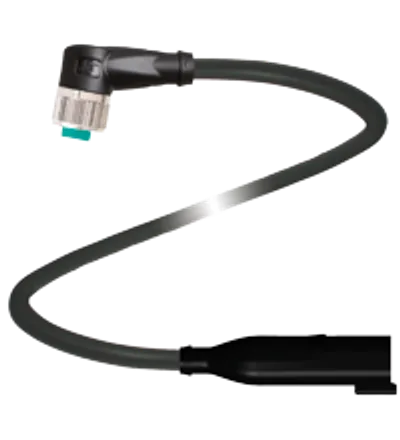

Available on requestAdapter cable V15-W-BK0,3M-PUR-O1-DT4P-G-Y1MPN: V15-W-BK0,3M-PUR-O1-DT4P-G-Y1 · Pepperl Fuchs
