Pepperl Fuchs V19-G-1,8M-PUR-ABG-V19-G – Connection cable, shielded
MPN: V19-G-1,8M-PUR-ABG-V19-G · Brand: Pepperl Fuchs
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V19-G-1,8M-PUR-ABG-V19-G be shipped?
V19-G-1,8M-PUR-ABG-V19-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V19-G-1,8M-PUR-ABG-V19-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V19-G-1,8M-PUR-ABG-V19-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V19-G-1,8M-PUR-ABG-V19-G, subject to availability and destination.
• Degree of protection IP66 / IP68 / IP69
• Halogen-free
• Shield connected to screw connection
• Specific design protects against loosening and inaccurate installation

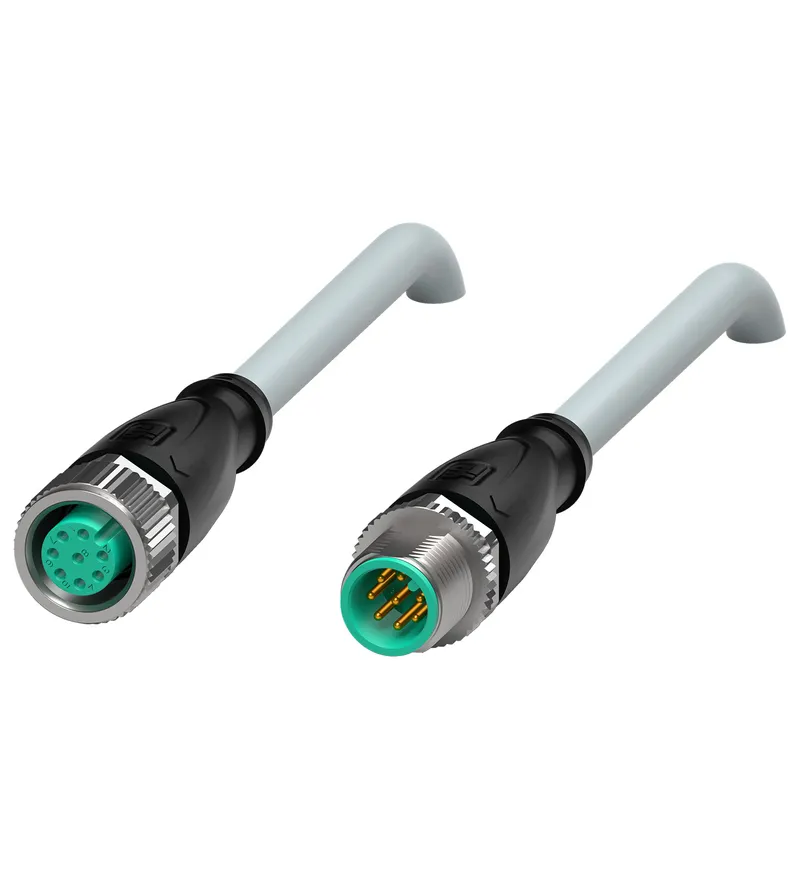

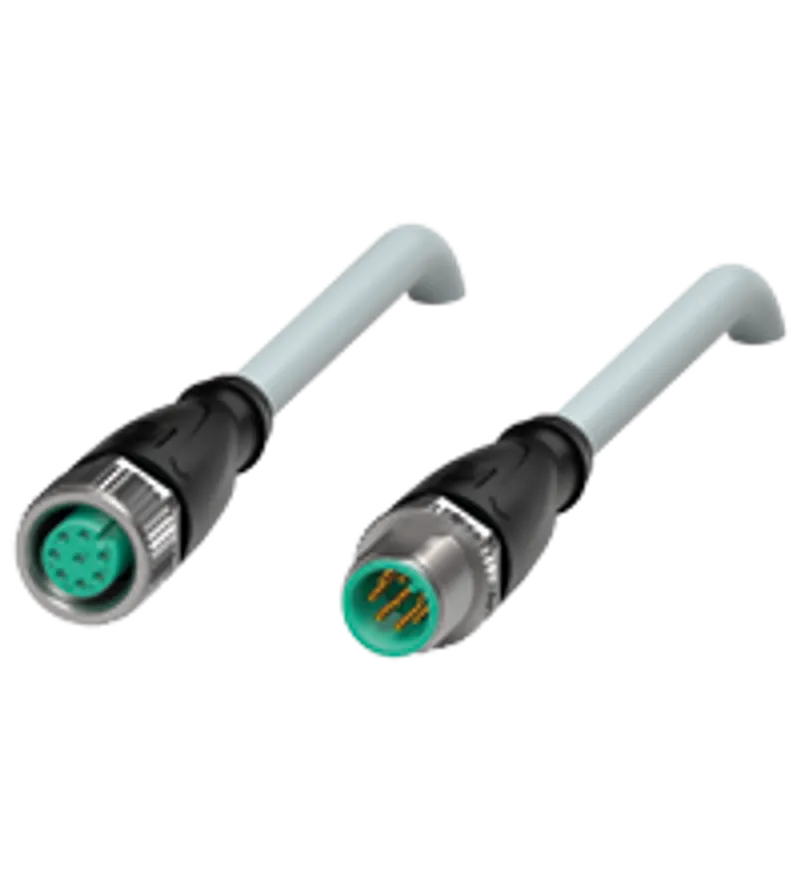

Cordset M12 socket straight to M12 plug straight A-coded, 8-pin, PUR cable grey, shielded
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 249538 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 8 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 2 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 6 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 100 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 8 |
| Core cross section | 0.25 mm2 |

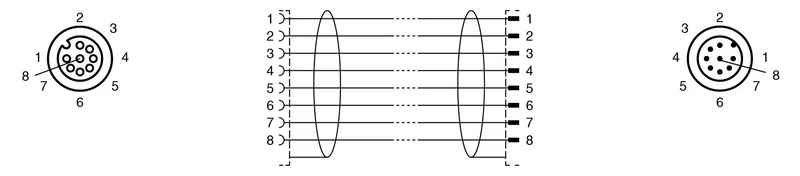

| Cores color | Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red |
| Core construction | 14 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 1.8 m L |
| Cable code | Li 9Y V1 C V1 11Y 8 x 0,25 |
| Mass | 121.37 g |
Material
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet V19-G-1,8M-PUR-ABG-V19-G |
CAD & dimension drawings
| 3-D model (STEP) V19-G-1,8M-PUR-ABG-V19-G | STP · 8.1 MB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 183 kB |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Pepperl Fuchs parts

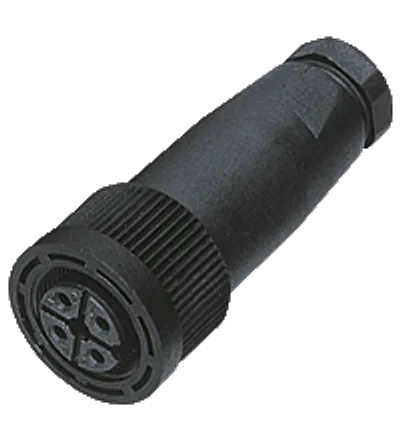

Available on requestFemale connector, field-attachable V18-GMPN: V18-G · Pepperl Fuchs
Price on request
Request a quote

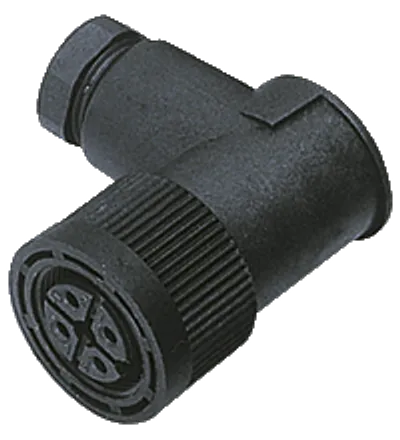

Available on requestFemale connector, field-attachable V18-WMPN: V18-W · Pepperl Fuchs
Price on request
Request a quote

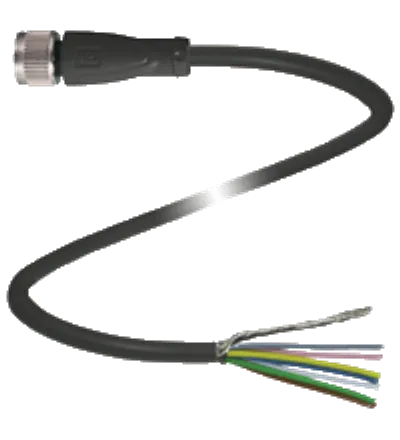

Available on requestConnecting cable, shielded V19-G-0,2M-PUR-ABG-V19-YMPN: V19-G-0,2M-PUR-ABG-V19-Y · Pepperl Fuchs
Price on request
Request a quote

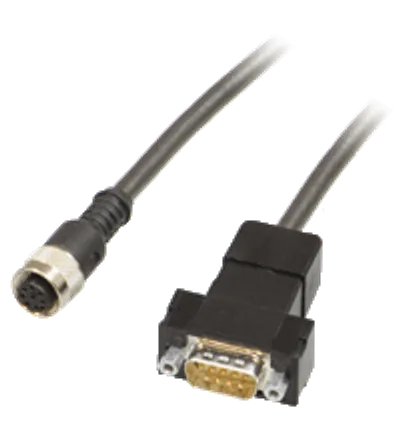

Available on requestAdapter M12 x 1 on Sub-D V19-G-0,5M-PUR-ABG-SUBD9MPN: V19-G-0,5M-PUR-ABG-SUBD9 · Pepperl Fuchs
Price on request
Request a quote

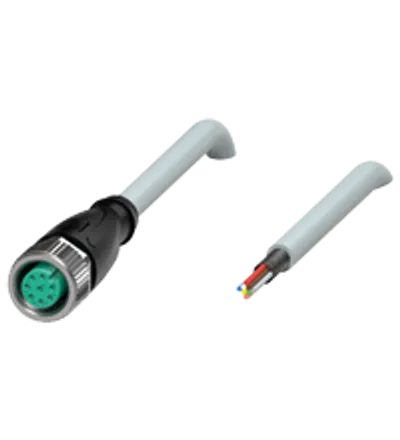

Available on requestCable socket, shielded V19-G-10M-PUR-ABGMPN: V19-G-10M-PUR-ABG · Pepperl Fuchs
Price on request
Request a quote

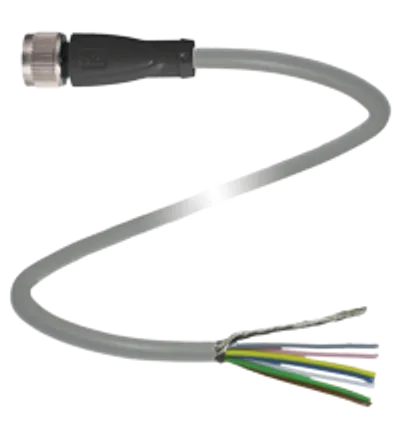

Available on requestCable socket, shielded V19-G-10M-PVC-TPMPN: V19-G-10M-PVC-TP · Pepperl Fuchs
Price on request
Request a quoteAvailable on requestCable socket, shielded V19-G-12M-PUR-ABGMPN: V19-G-12M-PUR-ABG · Pepperl Fuchs
Price on request
Request a quote

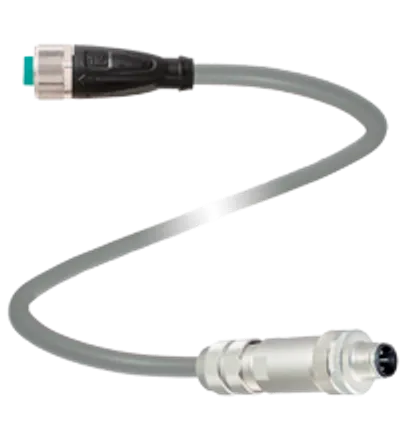

Available on requestAdapter cable V19-G-1,5M-PUR-ABG-V15B-GMPN: V19-G-1,5M-PUR-ABG-V15B-G · Pepperl Fuchs
