Pepperl Fuchs SPK 4x0,25mm² BL900/4000/350 – Bulk Spiral Cable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SPK 4x0,25mm² BL900/4000/350 be shipped?
SPK 4x0,25mm² BL900/4000/350 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SPK 4x0,25mm² BL900/4000/350 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SPK 4x0,25mm² BL900/4000/350 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPK 4x0,25mm² BL900/4000/350, subject to availability and destination.
• Resistant to microbes and hydrolysis
• UV resistant
• Halogen-free

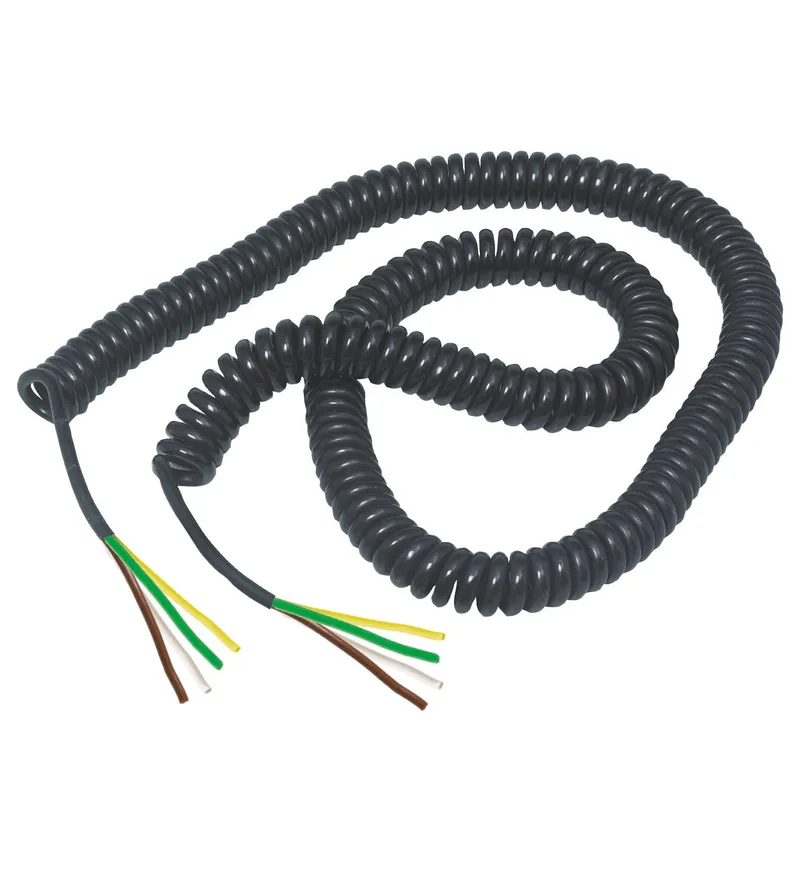

Spiral Cable, PUR/PUR, 4-core black
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 64314885 |
| Customization | sheath stripped , with wire end ferrule |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
Conformity
| Product standard | on the basis of DIN VDE 0812 |
Ambient conditions
| Ambient temperature | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 5.3 mm |
| Sheath color | black (similar to RAL 9005) |
| Number of cores | 4 |
| Core cross section | 0.25 mm2 |

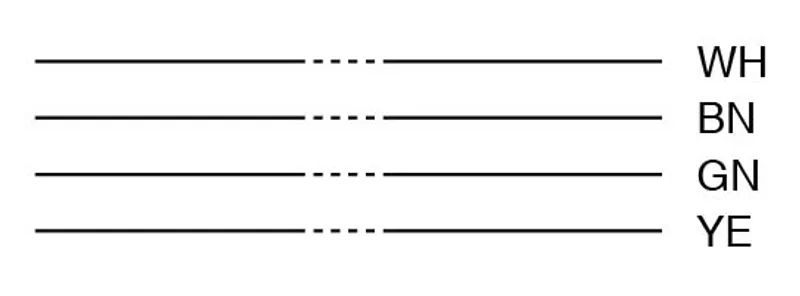

| Cores color | Core 1: white Core 2: brown Core 3: green Core 4: yellow |
| Core construction | 65 x 0.07 mm ∅ |

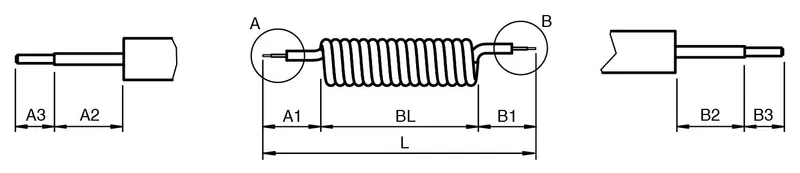

| Length | 5.6 m extension length max. 4.8 m BL: 900 mm A1: 4000 mm A2: 44 mm A3: 6 mm B1: 350 mm B2: 44 mm B3: 6 mm L |
| Cable code | Li F 11Y 11Y 4 x 0,25 |
Material
| Halogen-free | yes |
| Cable: Sheathing | TMPU |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | TMPU |
| Cable: UV resistance | yes |
| Cable: Oil resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet SPK 4x0,25mm² BL900/4000/350 |
More Pepperl Fuchs parts
Available on requestSegment Protector Junction Box, Polycarbonate SPJB-**-PCW.***
Available on requestSegment Protector Junction Box, Stainless Steel SPJB-**-SS*.***

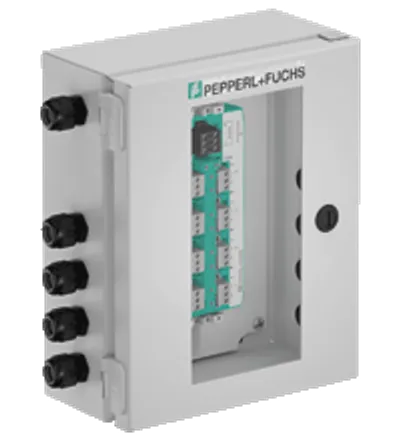

Available on requestSegment Protector Junction Box, Carbon Steel SPJB-**-CS*.***

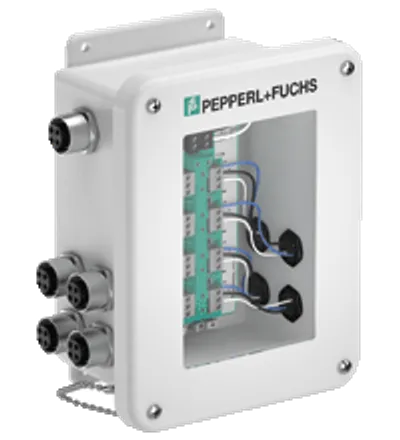

Available on requestSegment Protector Junction Box, Polyester (GRP) SPJB-**-FB*.***

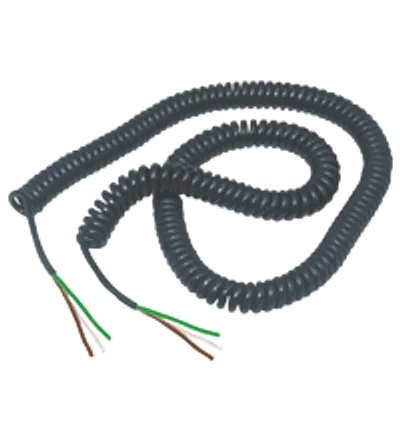

Available on requestBulk Spiral Cable SPK 3x0,5mm² BL600/200/500Available on requestBulk Spiral Cable SPK 3x0,5mm² BL750/200/200Available on requestBulk Spiral Cable SPK 3x0,5mm² BL750/200/500Available on requestBulk Spiral Cable SPK 3x0,5mm² BL900/200/200
