ALPHA SIMBOX XL - Flush-mounting and hollow-wall Parts
Compare ALPHA SIMBOX XL - Flush-mounting and hollow-wall
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the product | number of rows | width | number of modular width units | Net Weight |
|---|---|---|---|---|---|
| 8GB5236-2KM01 | 3-tier, wall box, HW | 3 | 364 mm | 36 | 1.331 kg |
| 8GB5236-1KM01 | 3-tier, wall box, FM | 3 | 364 mm | 36 | 1.388 kg |
| 8GB5224-4KM01 | 2-tier, expansion package, HW | 2 | 341 mm | 24 | 2.115 kg |
| 8GB5224-3KM01 | 2-tier, expansion package, FM | 2 | 341 mm | 24 | 2.148 kg |

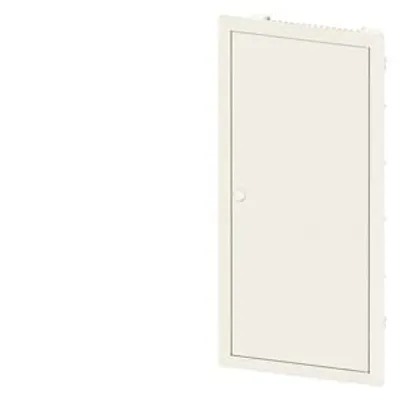

| 8GB5048-4KM | Hollow wall | 4 | 365 mm | 48 | 5.066 kg |

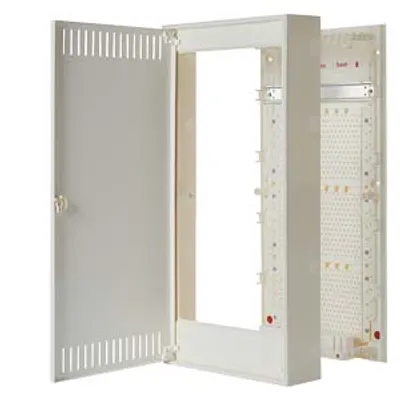

| 8GB5048-3KM01 | 4-tier | 4 | 365 mm | 48 | 4.7 kg |

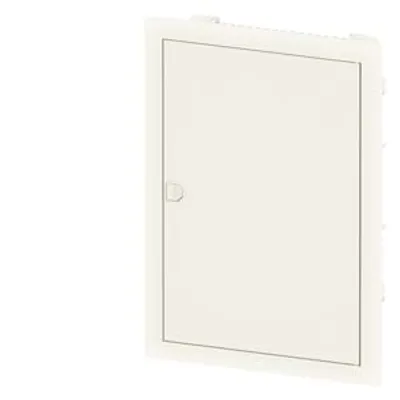

| 8GB5024-4KM | Hollow wall | 2 | 365 mm | 24 | 3.426 kg |
| 8GB5024-1KM | Flush mounting | 2 | 365 mm | 24 | 3.285 kg |

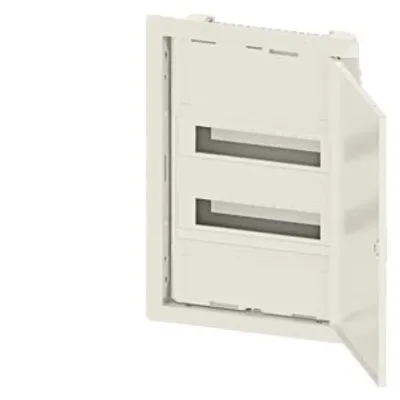

| 8GB5236-3KM01 | 3-tier, expansion package, FM | 3 | 364 mm | 36 | 2.595 kg |
Common to all listed parts
| design of support rail | Standard mounting rail 35 mm x 7.5 mm acc. to EN 60715 |
| design of the cap/top cover | closed |
| design of the product EMC version | No |
| operating voltage at AC rated value | 400 V |
| protection class IP | IP30 |
| operating resource protection class | II (total insulation) |
| RAL color number | 9 010 |
| color | white |
