Siemens

Siemens 8GB5224-4KM01

SIMBOX XL, 2-tier Expansion package HW 2-tier 24 MW VPE 12 units cover, Frame and door

MPN: 8GB5224-4KM01
Category: ALPHA SIMBOX XL - Flush-mounting and hollow-wall

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GB5224-4KM01?

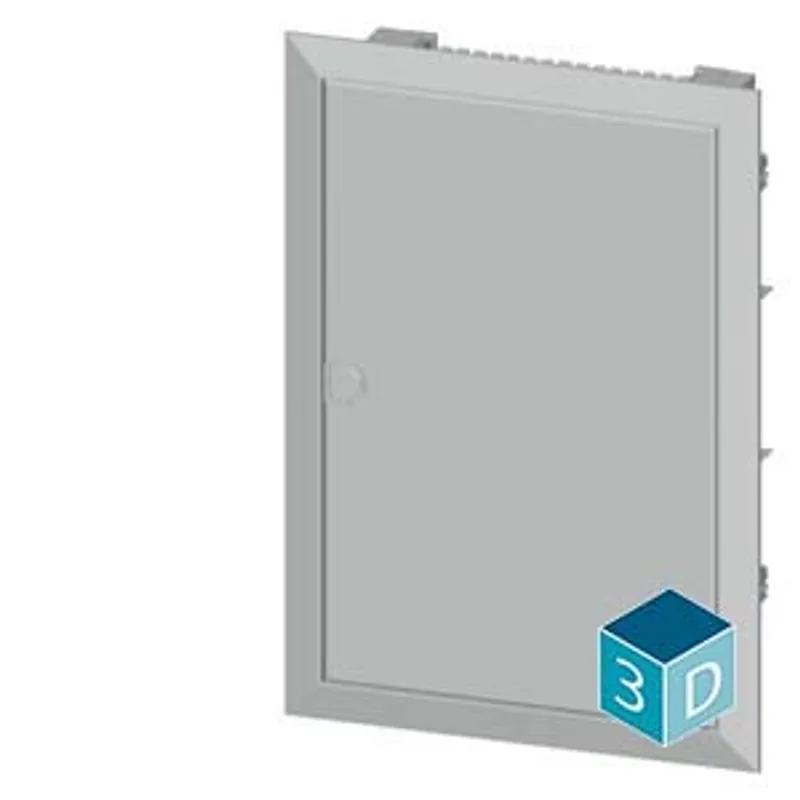

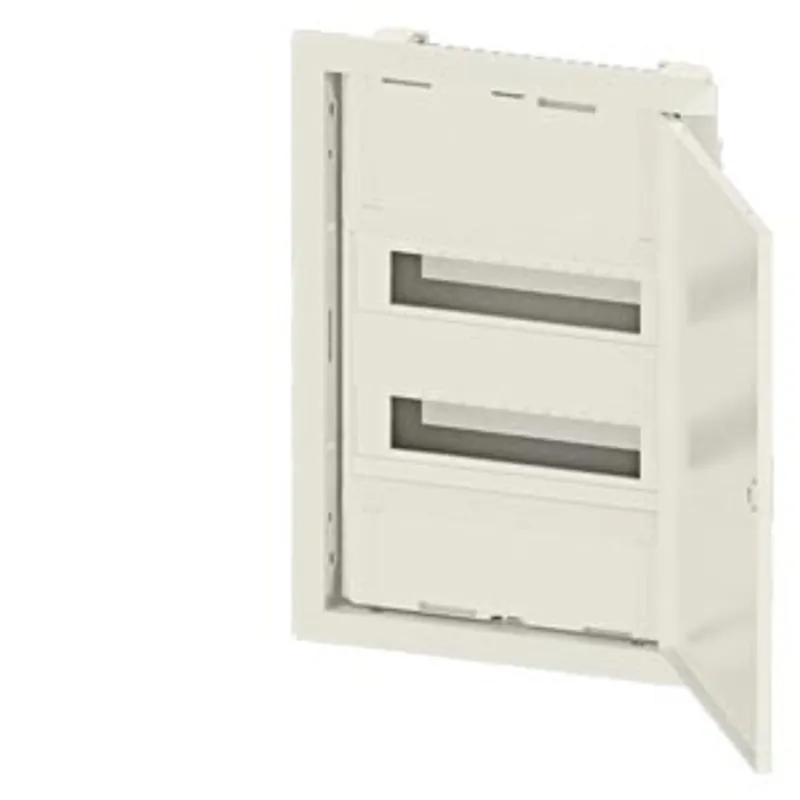

SIMBOX XL, 2-tier Expansion package HW 2-tier 24 MW VPE 12 units cover, Frame and door

Specifications

Model

product brand name	ALPHA
product designation	SIMBOX XL
design of the product	2-tier, expansion package, HW
design of support rail	Standard mounting rail 35 mm x 7.5 mm acc. to EN 60715
design of the cap/top cover	closed
design of the product EMC version	No

Supply voltage

operating voltage at AC rated value

400 V

Protection class

protection class IP	IP30
operating resource protection class	II (total insulation)

Appearance

RAL color number	9 010
color	white

Product details

product component — DIN mounting bar	Yes
product component — mounting plate	No
product component — transparent cover	No
product extension optional side-by-side mounting	No

Number

number of rows

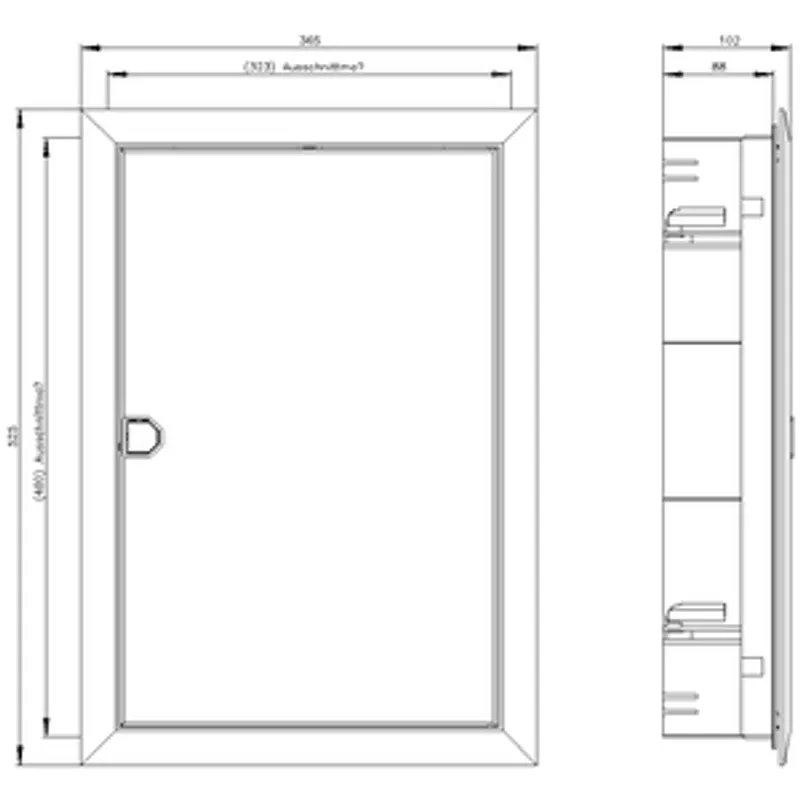

Mechanical Design

width	341 mm
installation depth	70 mm
number of modular width units	24
fastening method	hollow wall
rotation angle of door	125°
busbar center-to-center spacing	125 mm
Net Weight	2.115 kg
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GB5224-4KM01PDF

8GB5224-4KM01: frequently asked questions

When can 8GB5224-4KM01 be shipped?

8GB5224-4KM01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GB5224-4KM01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GB5224-4KM01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GB5224-4KM01, subject to availability and destination.
