Siemens

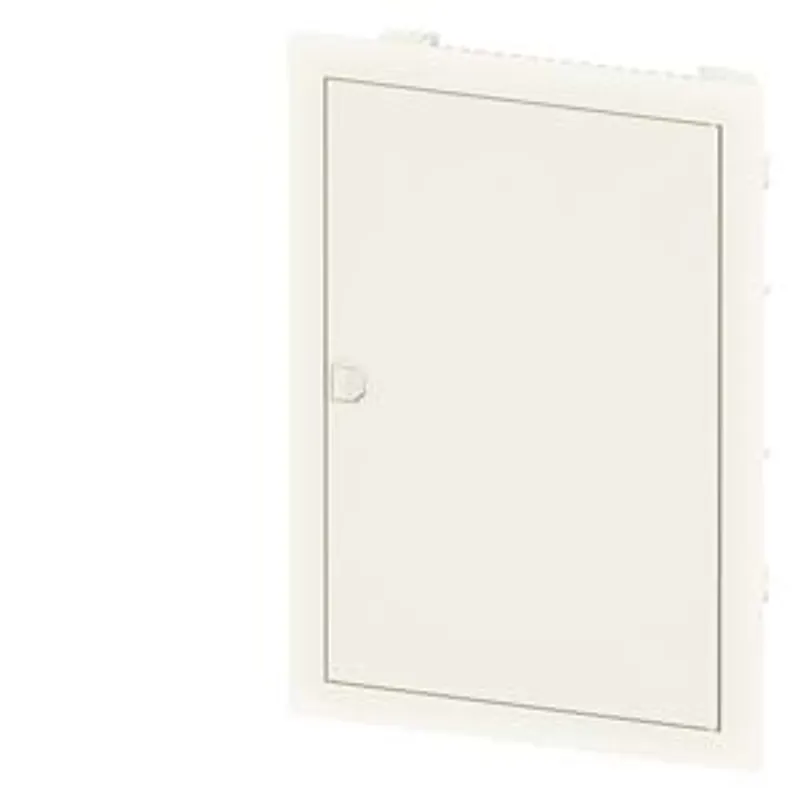

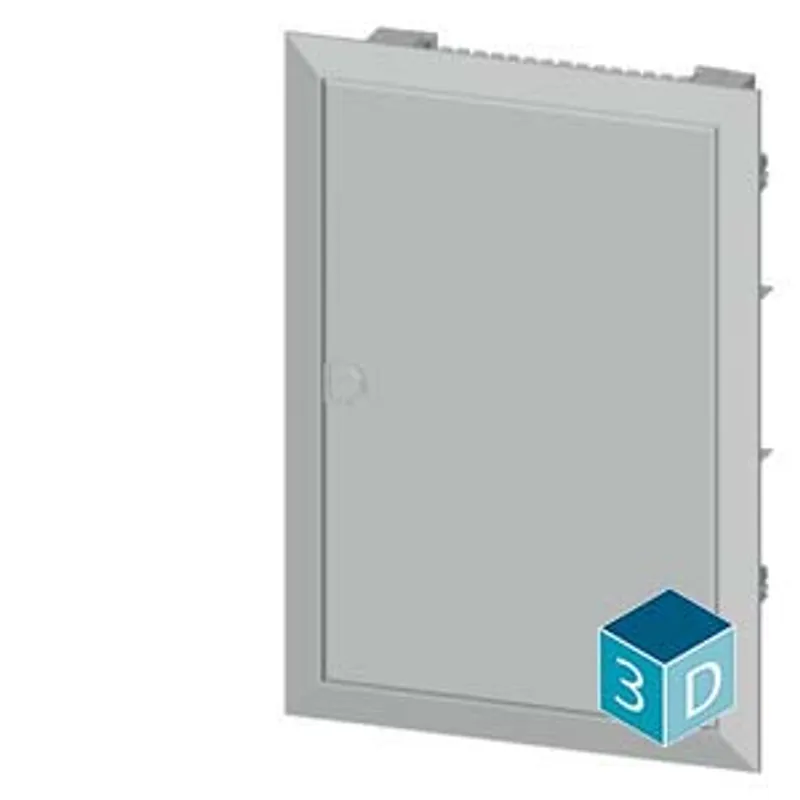

Siemens 8GB5024-1KM

SIMBOX XL flush-mounting, 2-tier 2x 12 MW (14 MW) Safety class 2

MPN: 8GB5024-1KM
Category: ALPHA SIMBOX XL - Flush-mounting and hollow-wall

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GB5024-1KM?

SIMBOX XL flush-mounting, 2-tier 2x 12 MW (14 MW) Safety class 2

Specifications

Model

product brand name	ALPHA
product designation	SIMBOX XL
design of the product	Flush mounting
design of the terminal strip	Plug-in terminal
design of support rail	Standard mounting rail 35 mm x 7.5 mm acc. to EN 60715
design of the cap/top cover	closed
design of the product EMC version	No

General technical data

equipment of terminal strip

1x8GB5016-5KM, 1x8GB5005-5KM

Supply voltage

operating voltage at AC rated value

400 V

Protection class

protection class IP	IP30
operating resource protection class	II (total insulation)

Appearance

RAL color number	9 010
color	white

Product details

product component — DIN mounting bar	Yes
product component — mounting plate	No
product component — transparent cover	No
product extension optional side-by-side mounting	No

Number

number of rows

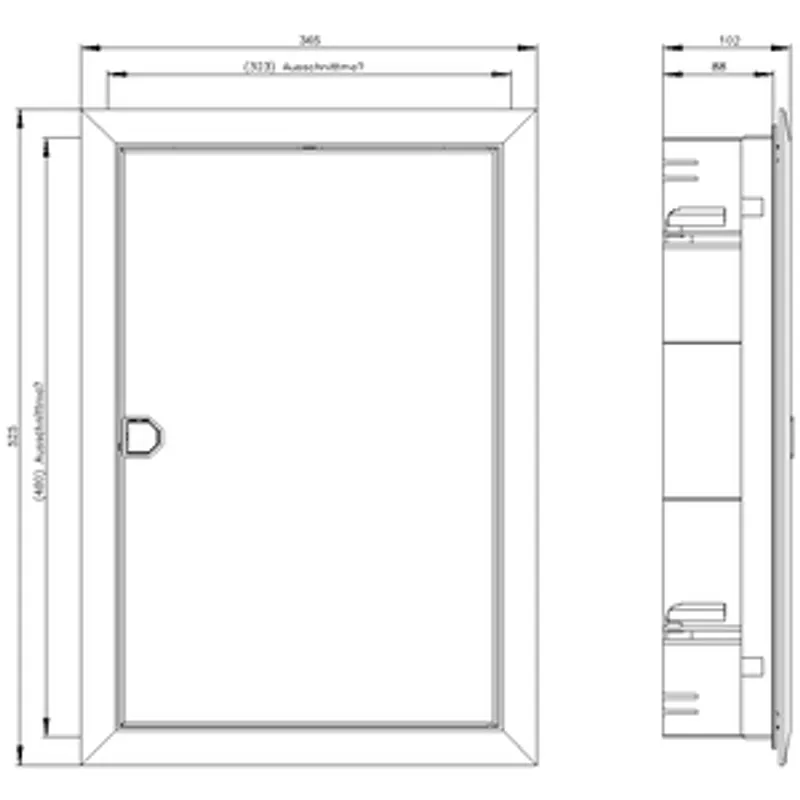

Mechanical Design

height	525 mm
width	365 mm
depth	88 mm
installation depth	70 mm
number of modular width units	24
fastening method	flush mounted
rotation angle of door	125°
busbar center-to-center spacing	125 mm
Net Weight	3.285 kg
material of the enclosure	plastic

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GB5024-1KMPDF

8GB5024-1KM: frequently asked questions

When can 8GB5024-1KM be shipped?

8GB5024-1KM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8GB5024-1KM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8GB5024-1KM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GB5024-1KM, subject to availability and destination.
