Siemens

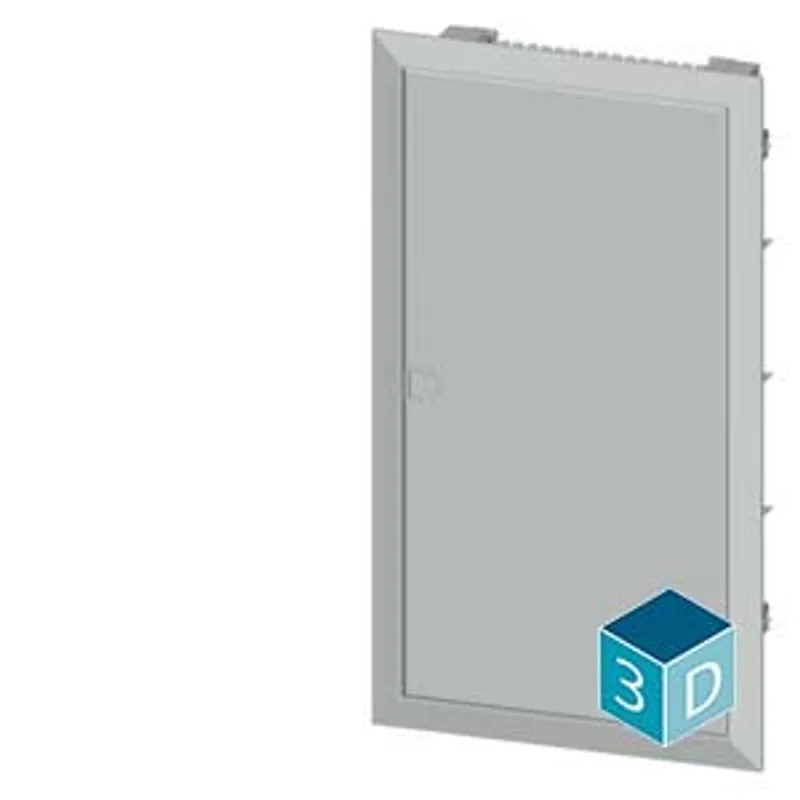

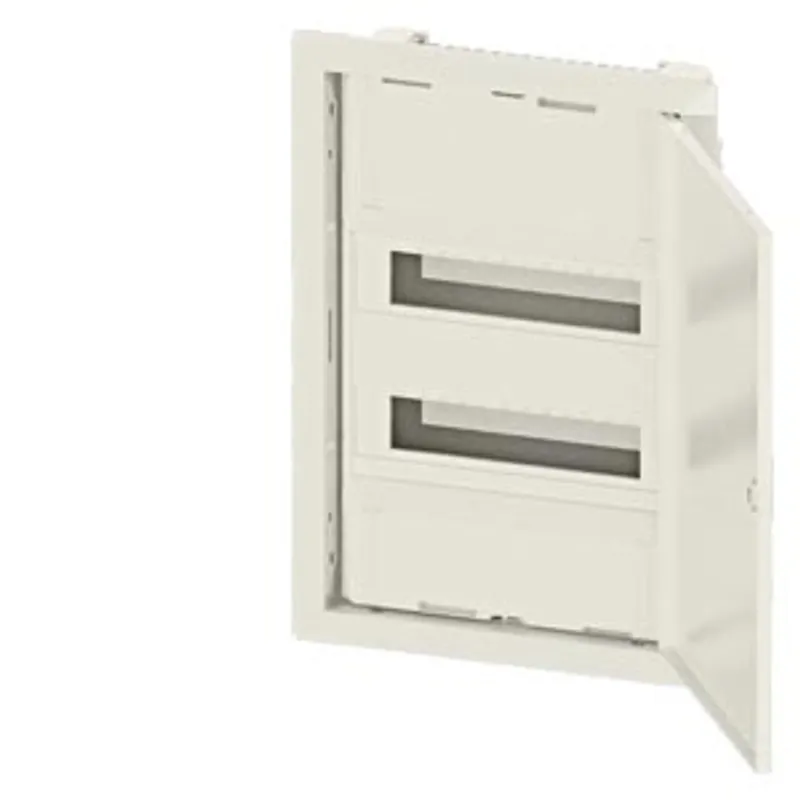

Siemens 8GB5236-3KM01

SIMBOX XL, 3-tier Expansion package UP 3-tier 36 MW VPE 12 units cover, Frame and door

MPN: 8GB5236-3KM01
Category: ALPHA SIMBOX XL - Flush-mounting and hollow-wall

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GB5236-3KM01?

SIMBOX XL, 3-tier Expansion package UP 3-tier 36 MW VPE 12 units cover, Frame and door

Specifications

Model

product brand name	ALPHA
product designation	SIMBOX XL
design of the product	3-tier, expansion package, FM
design of support rail	Standard mounting rail 35 mm x 7.5 mm acc. to EN 60715
design of the cap/top cover	closed
design of the product EMC version	No

Supply voltage

operating voltage at AC rated value

400 V

Protection class

protection class IP	IP30
operating resource protection class	II (total insulation)

Appearance

RAL color number	9 010
color	white

Product details

product component — DIN mounting bar	Yes
product component — mounting plate	No
product component — transparent cover	No
product extension optional side-by-side mounting	No

Number

number of rows

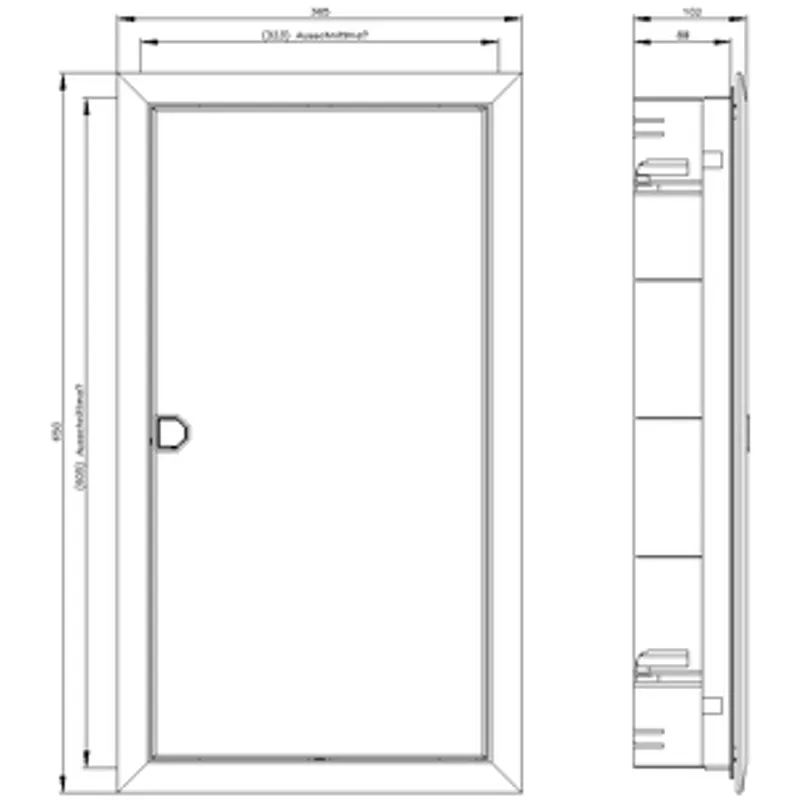

Mechanical Design

width	364 mm
number of modular width units	36
fastening method	flush mounted
rotation angle of door	125°
busbar center-to-center spacing	125 mm
Net Weight	2.595 kg
material of the enclosure	Steel

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8GB5236-3KM01PDF
