Siemens

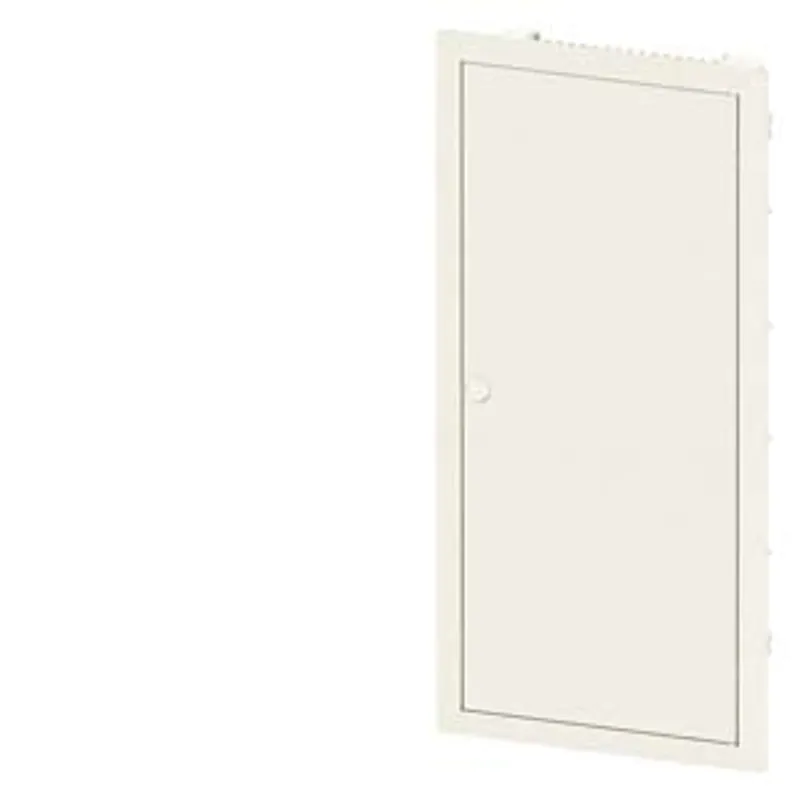

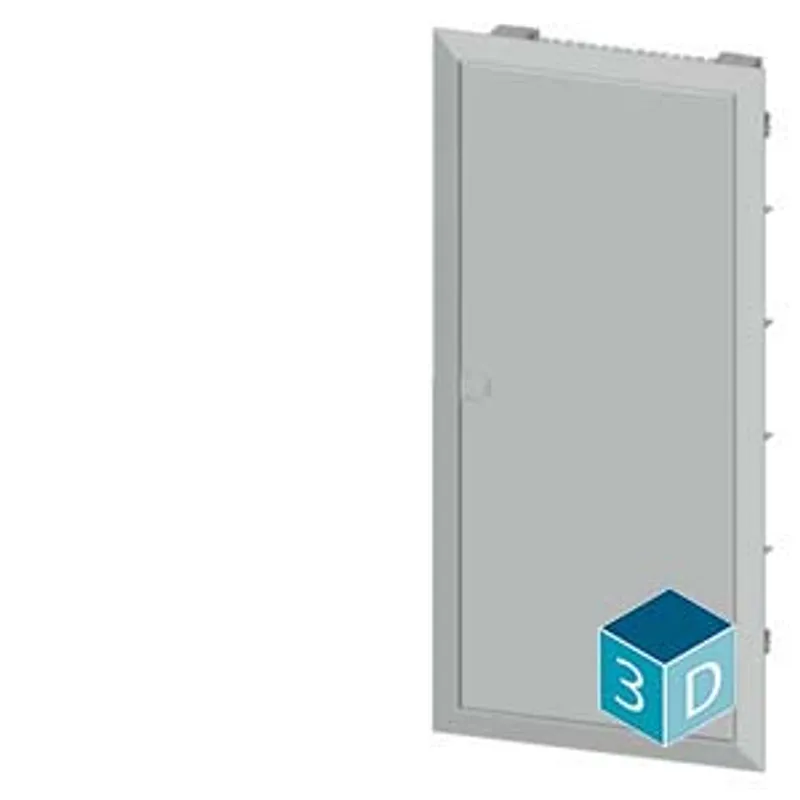

Siemens 8GB5048-4KM

SIMBOX XL hollow wall, 4-tier - 4x 12 MW (14 MW) Safety class 2

MPN: 8GB5048-4KM
Category: ALPHA SIMBOX XL - Flush-mounting and hollow-wall

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 8GB5048-4KM?

SIMBOX XL hollow wall, 4-tier - 4x 12 MW (14 MW) Safety class 2

Specifications

Model

product brand name	ALPHA
product designation	SIMBOX XL
design of the product	Hollow wall
design of the terminal strip	Plug-in terminal
design of support rail	Standard mounting rail 35 mm x 7.5 mm acc. to EN 60715
design of the cap/top cover	closed
design of the product EMC version	No

General technical data

equipment of terminal strip

1x8GB5017-5KM, 1x8GB5021-5KM

Supply voltage

operating voltage at AC rated value

400 V

Protection class

protection class IP	IP30
operating resource protection class	II (total insulation)

Appearance

RAL color number	9 010
color	white

Product details

product component — DIN mounting bar	Yes
product component — mounting plate	No
product component — transparent cover	No
product extension optional side-by-side mounting	No

Number

number of rows

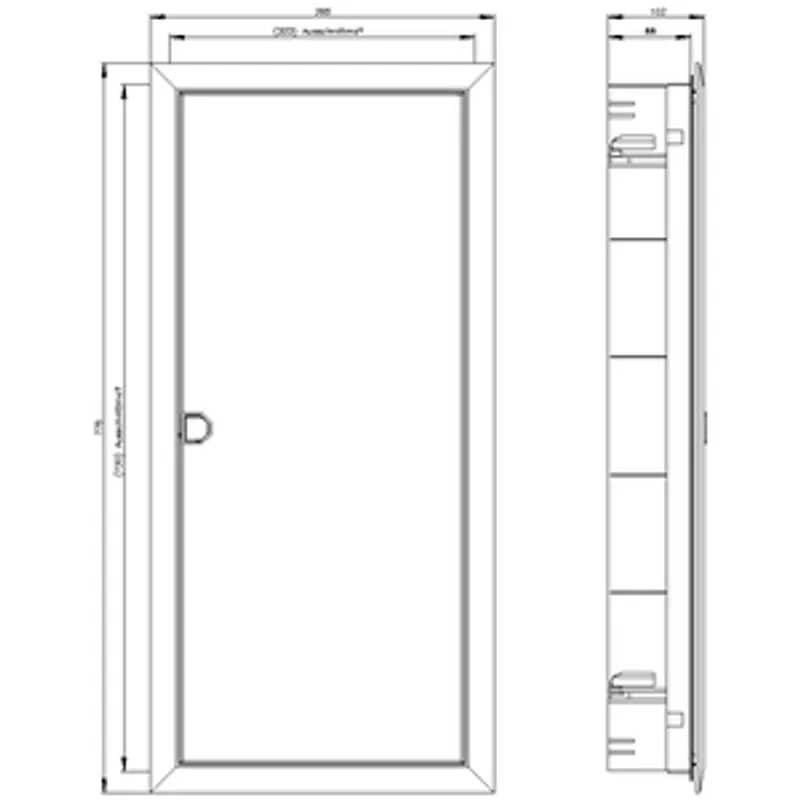

Mechanical Design

height	775 mm
width	365 mm
depth	88 mm
installation depth	70 mm
number of modular width units	48
fastening method	hollow wall
rotation angle of door	125°
busbar center-to-center spacing	125 mm
Net Weight	5.066 kg
material of the enclosure	plastic
