3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6440-5JP31-2AA0 | MLAE | ETU550 | 70 W | 5.3 kg | 600 A |
| 3VA6440-5JP31-0AA0 | MLAE | ETU550 | 70 W | 5.3 kg | 600 A |
| 3VA6440-5HN41-2AA0 | MLAE | ETU350 | 70 W | 6.9 kg | 4 800 A |
| 3VA6440-5HN41-0AA0 | MLAE | ETU350 | 70 W | 6.9 kg | 4 800 A |

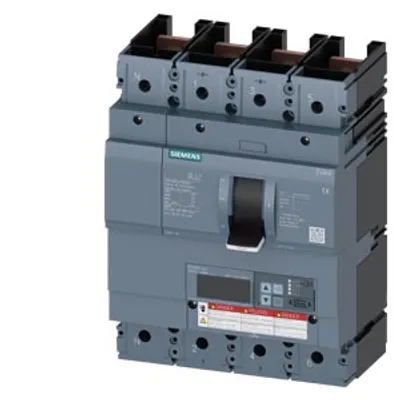

| 3VA6325-7KM41-2AA0 | CJAE | ETU830 | 27 W | 6.9 kg | 375 A |
| 3VA6440-6KT31-0AA0 | HLAE | ETU856 | 70 W | 5.3 kg | 600 A |
| 3VA6440-6KQ41-2AA0 | HLAE | ETU860 | 70 W | 6.9 kg | 600 A |
| 3VA6920-6KT31-0AA0 | HRAE | ETU856 | 676 W | 25.79 kg | 3 000 A |
| 3VA6920-6KQ31-0AA0 | HRAE | ETU860 | 676 W | 26.1 kg | 3 000 A |
| 3VA6920-6KP31-0AA0 | HRAE | ETU850 | 676 W | 25.7 kg | 3 000 A |
| 3VA6920-5KT31-0AA0 | MRAE | ETU856 | 676 W | 3.133 kg | 3 000 A |
| 3VA6920-5KQ31-0AA0 | MRAE | ETU860 | 676 W | 26.025 kg | 3 000 A |
| 3VA6920-5KP31-0AA0 | MRAE | ETU850 | 676 W | 26 kg | 3 000 A |
| 3VA6816-7KT31-2AA0 | CPAE | ETU856 | 433 W | 3.133 kg | 2 400 A |
| 3VA6440-6KL31-0AA0 | HLAE | ETU820 | 70 W | 5.3 kg | 600 A |
| 3VA6440-6JT41-2AA0 | HLAE | ETU556 | 70 W | 6.9 kg | 600 A |
| 3VA6440-6JT41-0AA0 | HLAE | ETU556 | 70 W | 6.9 kg | 600 A |
| 3VA6210-8KM31-2AA0 | LFAE | ETU830 | 6.7 W | 2.3 kg | 150 A |
| 3VA6210-8KM31-0AA0 | LFAE | ETU830 | 6.7 W | 2.5 kg | 150 A |
| 3VA6210-8KL41-2AA0 | LFAE | ETU820 | 6.7 W | 2.9 kg | 150 A |
| 3VA6210-8KL41-0AA0 | LFAE | ETU820 | 6.7 W | 3.2 kg | 150 A |
| 3VA6225-7JT31-2AA0 | CFAE | ETU556 | 42 W | 2.3 kg | 375 A |
| 3VA6225-7HN41-2AA0 | CFAE | ETU350 | 42 W | 2.9 kg | 2 500 A |
| 3VA5215-6EF31-2AA0 | HFAS | TM240 | 30 W | 2.03 kg | 750 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
