3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C |
|---|---|---|---|---|---|
| 3VA6225-8KL41-2AA0 | ETU820 | 2.9 kg | 238 A | 225 A | 213 A |
| 3VA6225-8KL41-0AA0 | ETU820 | 3.2 kg | 238 A | 225 A | 213 A |
| 3VA6225-6HL31-0AA0 | ETU320 | 2.18 kg | 241 A | 232 A | 222 A |
| 3VA6225-6JP41-0AA0 | ETU550 | 3.2 kg | 238 A | 225 A | 213 A |
| 3VA6225-6JP31-2AA0 | ETU550 | 2.3 kg | 238 A | 225 A | 213 A |
| 3VA6225-6HN31-2AA0 | ETU350 | 2.3 kg | 241 A | 232 A | 222 A |
| 3VA6225-6HM41-0AA0 | ETU330 | 3.2 kg | 241 A | 232 A | 222 A |
| 3VA5217-7GC41-2AA0 | TM230 | 2 800 g | 162 A | 158 A | 153 A |
| 3VA5217-7GC41-0AA0 | TM230 | 2.7 kg | 162 A | 158 A | 153 A |
| 3VA5217-7EF41-2AA0 | TM240 | 2 800 g | 162 A | 158 A | 153 A |
| 3VA5217-7EF41-0AA0 | TM240 | 2.7 kg | 162 A | 158 A | 153 A |
| 3VA5290-6ED41-2AA0 | TM210 | 2 800 g | 82.9 A | 80.5 A | 78.2 A |

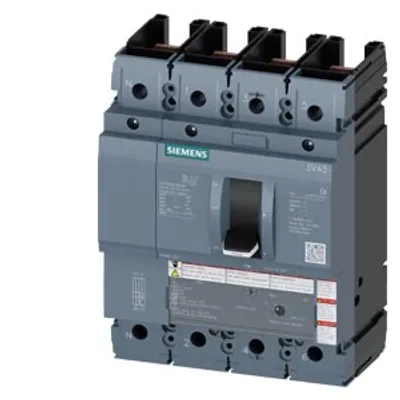

| 3VA5290-6ED41-0AA0 | TM210 | 2.7 kg | 87.3 A | 85.5 A | 82.8 A |
| 3VA5280-6EC31-2AA0 | TM230 | 2 100 g | 73.2 A | 71 A | 68.7 A |
| 3VA5280-6EC31-1AA0 | TM230 | 2 kg | 77.6 A | 76 A | 73.6 A |
| 3VA5280-6EC31-0AA0 | TM230 | 2.015 kg | 77.6 A | 76 A | 73.6 A |
| 3VA5280-5EF41-2AA0 | TM240 | 2 800 g | 73.2 A | 71 A | 68.7 A |
| 3VA5280-5EF41-0AA0 | TM240 | 2.7 kg | 77.6 A | 76 A | 73.6 A |
| 3VA5211-7EC31-1AA0 | TM230 | 2 kg | — | — | — |
| 3VA5211-7EC31-0AA0 | TM230 | 2 kg | — | — | — |
| 3VA5211-6GD41-2AA0 | TM210 | 2 800 g | — | — | — |
| 3VA5211-5GD41-0AA0 | TM210 | 2.55 kg | — | — | — |
| 3VA5211-5GC41-2AA0 | TM230 | 2 800 g | — | — | — |
| 3VA5211-5GC41-0AA0 | TM230 | 2.55 kg | 100 A | 97 A | 94 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| operating voltage / at AC / rated value | 690 V |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| number of CO contacts / for auxiliary contacts | 0 |
| product extension / optional / motor drive | Yes |
