3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA6115-7KT41-0AA0 | CDAE | ETU856 | 29 W | 9.67 W | 3.2 kg |
| 3VA6115-7KQ31-2AA0 | CDAE | ETU860 | 29 W | 9.67 W | 2.3 kg |

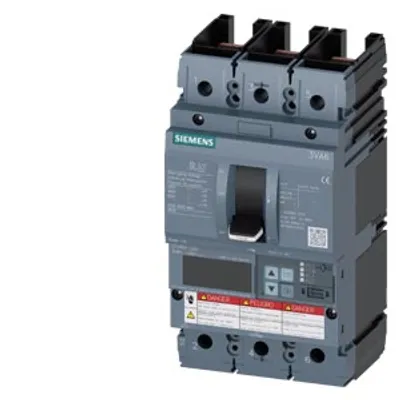

| 3VA6115-7KQ31-0AA0 | CDAE | ETU860 | 29 W | 9.67 W | 2.5 kg |
| 3VA5140-6ED11-0AA0 | H5EAS | TM210 | 3.73 W | 3.73 W | 0.383 kg |
| 3VA5445-7EF31-0AA0 | CLAS | TM240 | 99 W | 33 W | 5.2 kg |
| 3VA5445-7EC61-0AA0 | CLAS | TM230 | 66 W | 33 W | 4.95 kg |
| 3VA5445-7EC41-0AA0 | CLAS | TM230 | 99 W | 33 W | 6.82 kg |
| 3VA5112-5ED11-1AA0 | MEAM | TM210 | 10.03 W | 10.03 W | 0.38 kg |
| 3VA5112-5ED11-0AA0 | MEAS | TM210 | 10.03 W | 10.03 W | 0.383 kg |

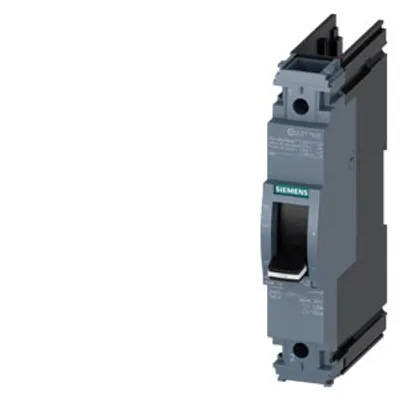

| 3VA5112-4ED11-1AA0 | SEAM | TM210 | 10.03 W | 10.03 W | 0.38 kg |

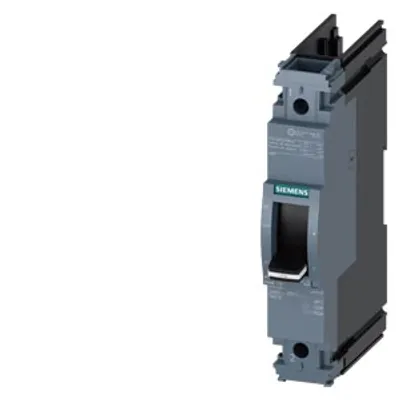

| 3VA5112-4ED11-0AA0 | SEAS | TM210 | 10.03 W | 10.03 W | 391 g |

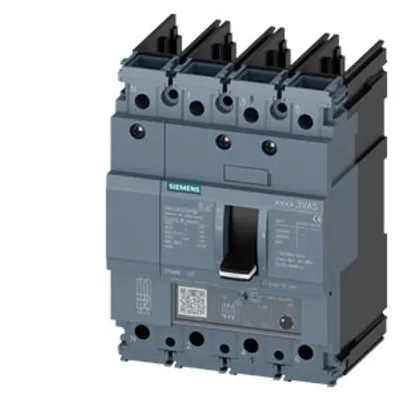

| 3VA5112-4EC41-0AA0 | SEAS | TM230 | 30.1 W | 10.03 W | 1.22 g |
| 3VA6115-8KQ31-2AA0 | LDAE | ETU860 | 29 W | 9.67 W | 2.3 kg |
| 3VA5212-5ED31-2AA0 | MFAS | TM210 | 23 W | 7.5 W | 2 100 g |
| 3VA5212-5ED31-1AA0 | MFAM | TM210 | 23 W | 7.53 W | 2 kg |
| 3VA5212-5EC41-0AA0 | MFAS | TM230 | 23 W | 7.53 W | 2.55 kg |
| 3VA6110-0KT31-0AA0 | EDAE | ETU856 | 13 W | 4.33 W | 2.2 kg |
| 3VA6110-0KQ41-0AA0 | EDAE | ETU860 | 13 W | 4.33 W | 2.821 kg |
| 3VA6110-0HM31-0AA0 | EDAE | ETU330 | 13 W | 4.33 W | 2.2 kg |
| 3VA6110-0HL41-0AA0 | EDAE | ETU320 | 13 W | 4.33 W | 2.868 kg |
| 3VA6210-8JP31-0AA0 | LFAE | ETU550 | 6.7 W | 2.23 W | 2.5 kg |

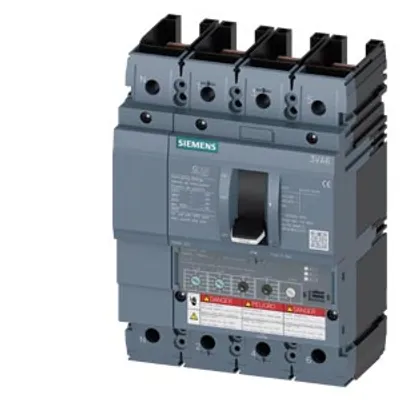

| 3VA6210-8HN41-2AA0 | LFAE | ETU350 | 6.7 W | 2.23 W | 2.9 kg |
| 3VA6210-8HM41-0AA0 | LFAE | ETU330 | 6.7 W | 2.23 W | 3.2 kg |
| 3VA6560-6JP42-0AA0 | HMAE | ETU550 | 151 W | 50.33 W | 17.01 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
