3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | power loss [W] / maximum | Net Weight | operational current — at 45 °C | operational current — at 50 °C |
|---|---|---|---|---|---|
| 3VA6610-5KQ32-0AA0 | MMNAE | 330 W | 14.15 kg | 940 A | 880 A |

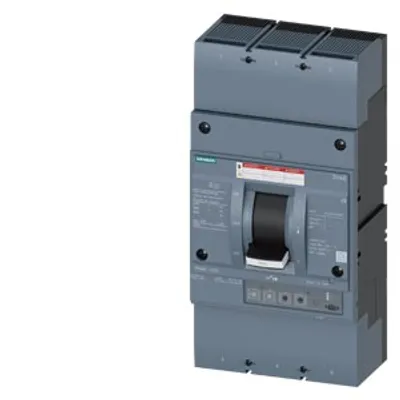

| 3VA6580-5HM36-0AA0 | MMAE | 231 W | 17.755 kg | 800 A | 800 A |
| 3VA6580-5HM32-2AA0 | MMAE | 231 W | 13.948 kg | 800 A | 800 A |
| 3VA6580-5HM32-0AA0 | MMAE | 231 W | 14.192 kg | 800 A | 800 A |
| 3VA6580-5HL46-2AA0 | MMAE | 231 W | 23.298 kg | 800 A | 800 A |
| 3VA6580-5HL46-0AA0 | MMAE | 231 W | 23.298 kg | 800 A | 800 A |

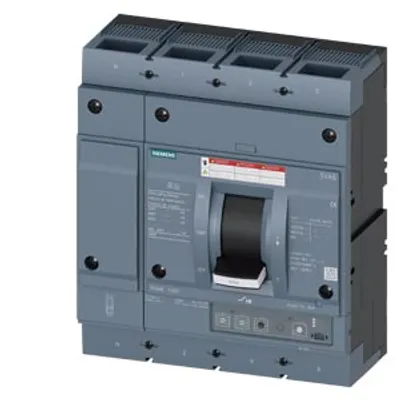

| 3VA6580-5HL42-2AA0 | MMAE | 231 W | 17.01 kg | 800 A | 800 A |
| 3VA6580-5HL42-0AA0 | MMAE | 231 W | 17.01 kg | 800 A | 800 A |
| 3VA5560-7EC42-2AA0 | CMAS | 162 W | 16.323 kg | 583 A | 566 A |

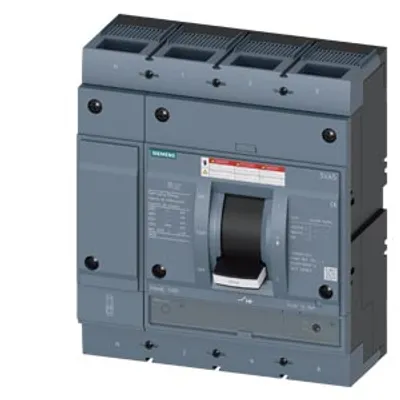

| 3VA5560-7EC42-0AA0 | CMAS | 162 W | 17.02 kg | 583 A | 566 A |
| 3VA5560-7EC36-2AA0 | CMAS | 162 W | 19.18 kg | 583 A | 566 A |
| 3VA5560-7EC36-1AA0 | CMAM | 162 W | 15.26 kg | 583 A | 566 A |
| 3VA5560-7EC36-0AA0 | CMAS | 162 W | 19.18 kg | 583 A | 566 A |

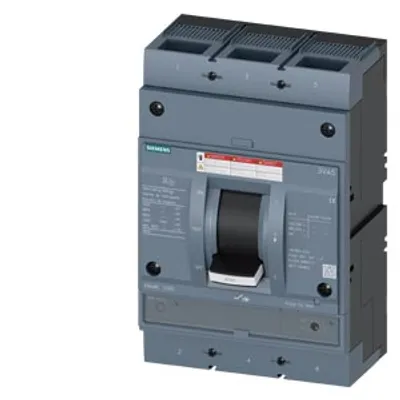

| 3VA5560-7EC32-2AA0 | CMAS | 162 W | 12.76 kg | 583 A | 566 A |
| 3VA5560-7EC32-1AA0 | CMAM | 162 W | 13.362 kg | 583 A | 566 A |
| 3VA5570-7EC66-0AA0 | CMAS | 122 W | 15.26 kg | 680 A | 659 A |
| 3VA5570-7EC62-0AA0 | CMAS | 122 W | 13.32 kg | 680 A | 659 A |
| 3VA5570-7EC46-2AA0 | CMAS | 183 W | 18.716 kg | 680 A | 659 A |

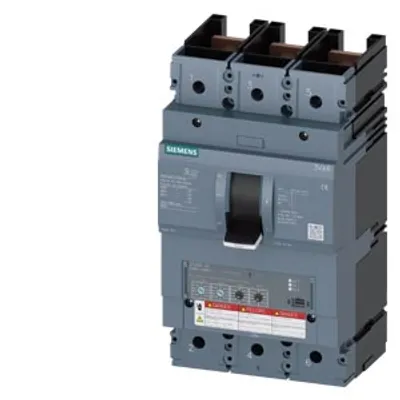

| 3VA6440-7HM31-0AA0 | CLAE | 70 W | 5.3 kg | 400 A | 400 A |
| 3VA5290-5EC31-2AA0 | MFAS | 25 W | 2 100 g | 87.6 A | 85.3 A |
| 3VA5290-5EC31-1AA0 | MFAM | 25 W | 2 kg | 90 A | 90 A |
| 3VA6225-8KT31-2AA0 | LFAE | 42 W | 2.3 kg | 250 A | 250 A |
| 3VA6225-8KT31-0AA0 | LFAE | 42 W | 2.5 kg | 250 A | 250 A |
| 3VA6225-8KM31-0AA0 | LFAE | 42 W | 2.5 kg | 250 A | 250 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
