3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA5215-6ED41-0AA0 | HFAS | TM210 | 30 W | 9.97 W | 2.7 kg |

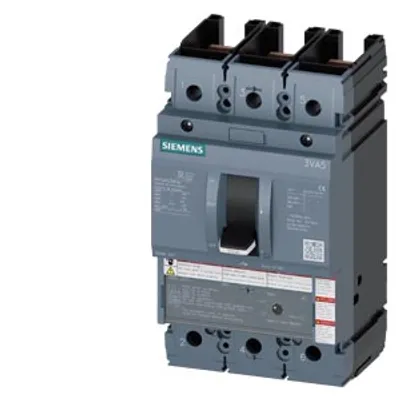

| 3VA5212-6EC31-0AA0 | HFAS | TM230 | 23 W | 7.53 W | 2.025 kg |
| 3VA5212-5GF41-2AA0 | MFAS | TM240 | 23 W | 7.5 W | 2 800 g |
| 3VA5212-5GF41-0AA0 | MFAS | TM240 | 23 W | 7.53 W | 2.7 kg |

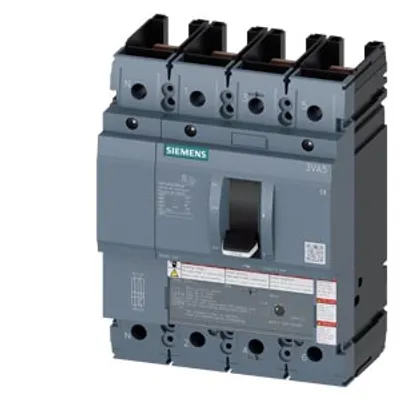

| 3VA5212-5GD41-2AA0 | MFAS | TM210 | 23 W | 7.5 W | 2 800 g |
| 3VA5212-5GD41-0AA0 | MFAS | TM210 | 23 W | 7.53 W | 2.55 kg |
| 3VA5212-5GC41-2AA0 | MFAS | TM230 | 23 W | 7.5 W | 2 800 g |
| 3VA5212-5GC41-0AA0 | MFAS | TM230 | 23 W | 7.53 W | 2.55 kg |
| 3VA6140-8HM31-2AA0 | LDAE | ETU330 | 2.4 W | 0.8 W | 2.3 kg |
| 3VA6140-8HM31-0AA0 | LDAE | ETU330 | 2.4 W | 0.8 W | 2.5 kg |
| 3VA6140-8HL41-2AA0 | LDAE | ETU320 | 2.4 W | 0.8 W | 2.9 kg |
| 3VA6140-8HL41-0AA0 | LDAE | ETU320 | 2.4 W | 0.8 W | 3.2 kg |
| 3VA5215-1BB31-0AA0 | CFAS | MCS110 | 19.6 W | 6.53 W | 1.999 kg |
| 3VA5212-7EF31-2AA0 | CFAS | TM240 | 23 W | 7.5 W | 2 100 g |
| 3VA5212-7EF31-0AA0 | CFAS | TM240 | 23 W | 7.53 W | 2 kg |
| 3VA5212-7EC61-0AA0 | CFAS | TM230 | 15 W | 7.53 W | 1.9 kg |
| 3VA5340-6GF41-0AA0 | HJAS | TM240 | 92 W | 30.73 W | 6.82 kg |

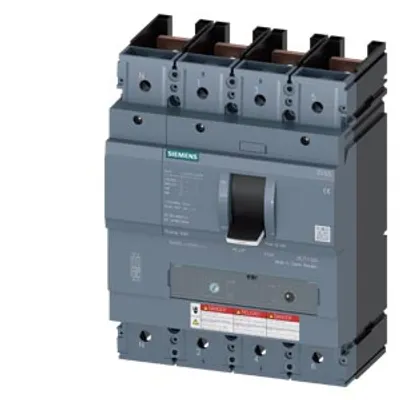

| 3VA5340-6GC41-2AA0 | HJAS | TM230 | 92 W | 30.73 W | 6 820 g |

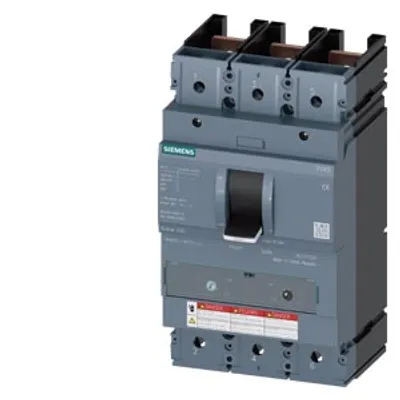

| 3VA5340-6EF31-2AA0 | HJAS | TM240 | 92 W | 30.73 W | 4 820 g |
| 3VA6140-5KM31-2AA0 | MDAE | ETU830 | 2.4 W | 0.8 W | 2.3 kg |
| 3VA6140-5KM31-0AA0 | MDAE | ETU830 | 2.4 W | 0.8 W | 2.5 kg |
| 3VA6140-5KL31-2AA0 | MDAE | ETU820 | 2.4 W | 0.8 W | 2.3 kg |
| 3VA6140-5KL31-0AA0 | MDAE | ETU820 | 2.4 W | 0.8 W | 2.5 kg |

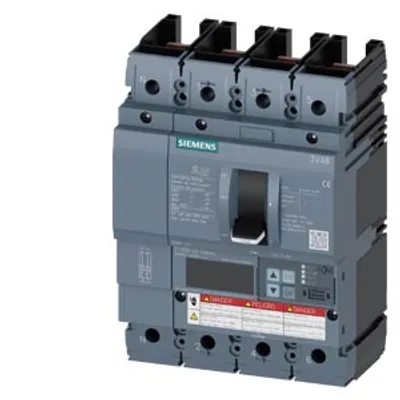

| 3VA6115-7KT41-2AA0 | CDAE | ETU856 | 29 W | 9.67 W | 2.9 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
