3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | Net Weight | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C |
|---|---|---|---|---|---|
| 3VA6340-0HM41-0AA0 | EJAE | 6.9 kg | — | — | — |
| 3VA6340-0HL31-0AA0 | EJAE | 4.892 kg | 385 A | 370 A | 355 A |
| 3VA6440-5JT41-2AA0 | MLAE | 6.9 kg | 400 A | 400 A | 400 A |
| 3VA6440-5JT41-0AA0 | MLAE | 6.9 kg | 400 A | 400 A | 400 A |
| 3VA6440-5JT31-2AA0 | MLAE | 4.978 kg | 400 A | 400 A | 400 A |
| 3VA6225-7KT41-2AA0 | CFAE | 2.9 kg | 238 A | 225 A | 213 A |
| 3VA6225-7KT41-0AA0 | CFAE | 3.2 kg | 238 A | 225 A | 213 A |
| 3VA6225-7KP31-2AA0 | CFAE | 2.3 kg | 238 A | 225 A | 213 A |
| 3VA6225-7KP31-0AA0 | CFAE | 2.5 kg | 238 A | 225 A | 213 A |
| 3VA5135-4ED11-1AA0 | SEAM | 0.38 kg | 33 A | 33 A | 32 A |
| 3VA5135-4ED11-0AA0 | SEAS | 0.383 kg | 33 A | 33 A | 32 A |
| 3VA5130-6ED31-1AA0 | HEAM | 950 g | 28 A | 28 A | 28 A |
| 3VA5130-6ED31-0AA0 | HEAS | 921 g | 28 A | 28 A | 28 A |
| 3VA5282-6ED31-1AA0 | HFAM | 2 100 g | 17.6 A | 16.8 A | 16 A |
| 3VA5125-6EC31-1AA0 | HEAM | 947 g | 23 A | 23 A | 23 A |

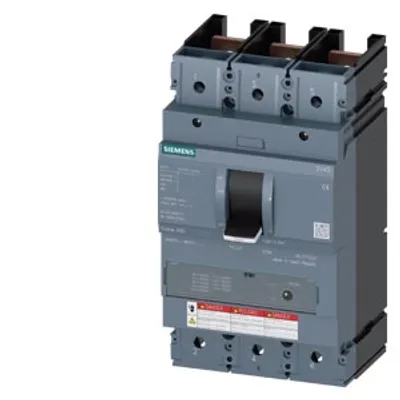

| 3VA5450-0MU31-0AA0 | HLAP | 5.2 kg | 464 A | 451 A | 439 A |
| 3VA5450-0MH31-0AA0 | HLAP | 5.2 kg | 464 A | 451 A | 439 A |
| 3VA5445-6GF41-0AA0 | HLAS | 6.82 kg | 419 A | 409 A | 398 A |
| 3VA5445-6GC41-0AA0 | HLAS | 6.82 kg | 419 A | 409 A | 398 A |
| 3VA5445-6EF41-0AA0 | HLAS | 6.82 kg | 419 A | 409 A | 398 A |
| 3VA6110-6KP31-0AA0 | HDAE | 2.5 kg | 100 A | 100 A | 100 A |
| 3VA6110-6JP41-2AA0 | HDAE | 2.9 kg | 100 A | 100 A | 100 A |
| 3VA6110-6JP41-0AA0 | HDAE | 3.2 kg | 100 A | 100 A | 100 A |
| 3VA6115-8JT41-2AA0 | LDAE | 2.9 kg | 143 A | 135 A | 128 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
