3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | protection function of the overcurrent release | Net Weight | adjustable response value setting current (Isd) / of S-trip / with I2t characteristic — minimum | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA6710-6KP31-2AA0 | ETU850 | LSI | 25.7 kg | 600 A | 1 500 A |
| 3VA6710-6KP31-0AA0 | ETU850 | LSI | 3.133 kg | 600 A | 1 500 A |
| 3VA6710-6HQ31-2AA0 | ETU360 | LSIG | 3.133 kg | 1 500 A | 12 000 A |
| 3VA6710-6HQ31-0AA0 | ETU360 | LSIG | 3.133 kg | 1 500 A | 12 000 A |
| 3VA6710-6HN31-2AA0 | ETU350 | LSI | 3.133 kg | 1 500 A | 12 000 A |

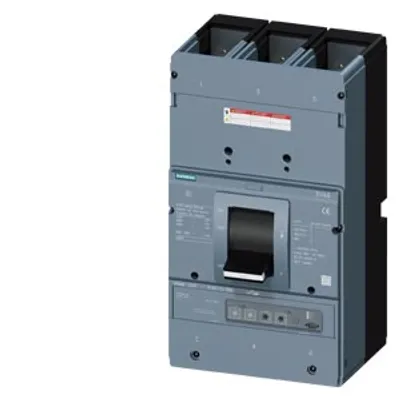

| 3VA6710-6HN31-0AA0 | ETU350 | LSI | 25.65 kg | 1 500 A | 12 000 A |
| 3VA6710-6HM31-2AA0 | ETU330 | LIG | 3.133 kg | — | — |
| 3VA6712-7HM31-2AA0 | ETU330 | LIG | 25.55 kg | — | 1 800 A |
| 3VA6712-7HM31-0AA0 | ETU330 | LIG | 3.133 kg | — | — |
| 3VA6712-7HL31-2AA0 | ETU320 | LI | 3.133 kg | — | 1 800 A |
| 3VA6712-7HL31-0AA0 | ETU320 | LI | 25.7 kg | — | 1 800 A |
| 3VA6712-6KT31-2AA0 | ETU856 | LSI | 3.133 kg | 720 A | 1 800 A |
| 3VA6712-6KT31-0AA0 | ETU856 | LSI | 3.133 kg | 720 A | 1 800 A |
| 3VA6712-6KQ31-2AA0 | ETU860 | LSIG | 24.8 kg | 720 A | 1 800 A |
| 3VA6780-7KQ31-2AA0 | ETU860 | LSIG | 3.133 kg | 480 A | 1 200 A |
| 3VA6780-7KQ31-0AA0 | ETU860 | LSIG | 3.133 kg | 480 A | 1 200 A |
| 3VA6780-7KP31-2AA0 | ETU850 | LSI | 3.133 kg | 480 A | 1 200 A |
| 3VA6780-7KP31-0AA0 | ETU850 | LSI | 3.133 kg | 480 A | 1 200 A |
| 3VA6780-7HQ31-2AA0 | ETU360 | LSIG | 3.133 kg | 1 200 A | 9 600 A |
| 3VA6780-7HQ31-0AA0 | ETU360 | LSIG | 3.133 kg | 1 200 A | 9 600 A |
| 3VA6780-7HN31-2AA0 | ETU350 | LSI | 3.133 kg | 1 200 A | 9 600 A |
| 3VA6560-5JT36-0AA0 | ETU556 | LSI-G-alarm only | 15.355 kg | 360 A | 900 A |
| 3VA6560-5JT32-2AA0 | ETU556 | LSI-G-alarm only | 13.3 kg | 360 A | 900 A |
| 3VA6560-5JT32-0AA0 | ETU556 | LSI-G-alarm only | 13.3 kg | 360 A | 900 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| number of poles | 3 |
| insulation voltage / rated value | 800 V |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
