3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|
| 3VA5140-6ED31-1AA0 | HEAM | 11.2 W | 3.73 W | 920 g | 400 A |
| 3VA5140-6ED31-0AA0 | HEAS | 11.2 W | 3.73 W | 940 g | 400 A |

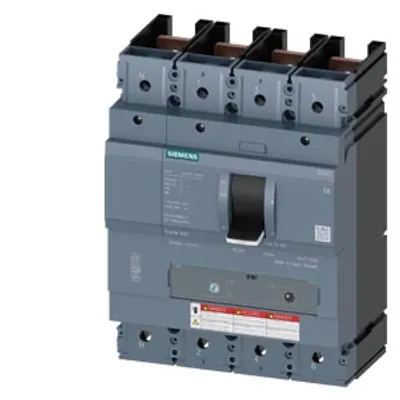

| 3VA5445-5GF41-0AA0 | MLAS | 99 W | 33 W | 6.16 kg | 2 250 A |
| 3VA5445-5GC41-0AA0 | MLAS | 99 W | 33 W | 6.82 kg | 2 250 A |
| 3VA5445-5EF41-0AA0 | MLAS | 99 W | 33 W | 6.82 kg | 2 250 A |
| 3VA5440-1MU31-0AA0 | CLAP | 120 W | 40 W | 5.2 kg | 1 200 A |
| 3VA5120-6ED21-1AA0 | HEAM | 8.13 W | 4.07 W | 621 g | 300 A |
| 3VA6115-7KP31-0AA0 | CDAE | 29 W | 9.67 W | 2.5 kg | 225 A |
| 3VA5150-5EF31-0AA0 | MEAS | 12 W | 4 W | 950 g | 250 A |
| 3VA6140-6KT31-2AA0 | HDAE | 2.4 W | 0.8 W | 2.3 kg | 60 A |
| 3VA6140-6KP31-2AA0 | HDAE | 2.4 W | 0.8 W | 2.3 kg | 60 A |

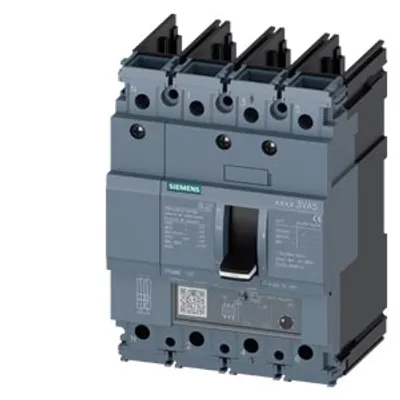

| 3VA5110-5GC41-0AA0 | MEAS | 23 W | 7.6 W | 952 g | 500 A |
| 3VA5110-5EF41-0AA0 | MEAS | 22.8 W | 7.6 W | 1.217 g | 500 A |
| 3VA5110-5ED21-1AA0 | MEAM | 15.2 W | 7.6 W | 621 g | 1 000 A |
| 3VA5110-5ED21-0AA0 | MEAS | 15.2 W | 7.6 W | 650 g | 1 000 A |
| 3VA5225-5EC31-0AA0 | MFAS | 58 W | 19.33 W | 2.028 kg | 1 250 A |

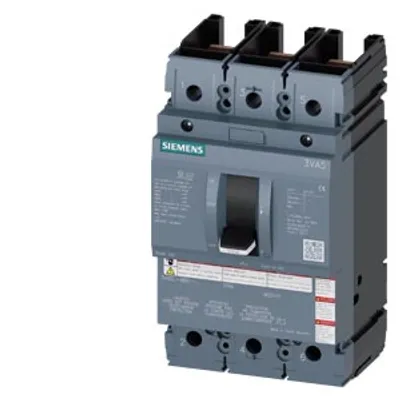

| 3VA5225-1BB31-0AA0 | CFAS | 54.4 W | 18.13 W | 2.038 kg | 2 500 A |
| 3VA6560-6KQ46-2AA0 | HMAE | 151 W | 50.33 W | 20.089 kg | 900 A |
| 3VA6560-6KQ46-0AA0 | HMAE | 151 W | 50.33 W | 20.089 kg | 900 A |

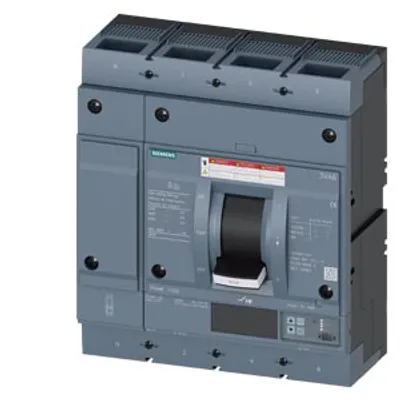

| 3VA6560-6KQ42-2AA0 | HMAE | 151 W | 50.33 W | 17.01 kg | 900 A |
| 3VA6560-6KQ42-0AA0 | HMAE | 151 W | 50.33 W | 17.01 kg | 900 A |
| 3VA6560-6KQ36-2AA0 | HMAE | 151 W | 50.33 W | 15.355 kg | 900 A |
| 3VA6560-6KQ36-0AA0 | HMAE | 151 W | 50.33 W | 15.355 kg | 900 A |

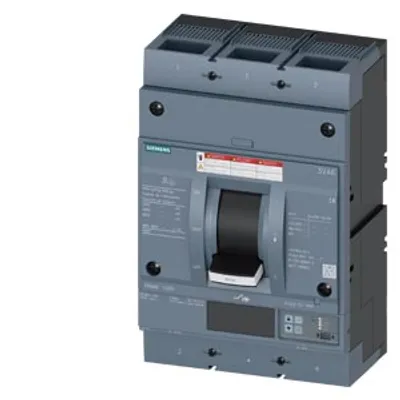

| 3VA6560-6KQ32-2AA0 | HMAE | 151 W | 50.33 W | 14.33 kg | 900 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
