3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | operational current — at 55 °C |
|---|---|---|---|---|---|
| 3VA6225-8HM41-2AA0 | LFAE | 42 W | 14 W | 2.9 kg | 241 A |
| 3VA6225-8HM41-0AA0 | LFAE | 42 W | 14 W | 3.2 kg | 241 A |
| 3VA5145-4ED21-1AA0 | SEAM | 7.6 W | 3.8 W | 621 g | 43 A |
| 3VA5140-6ED21-1AA0 | HEAM | 7.46 W | 3.73 W | 621 g | 38 A |
| 3VA5120-4ED31-1AA0 | SEAM | 12.2 W | 4.07 W | 945 g | 19 A |
| 3VA5120-4ED31-0AA0 | SEAS | 12.2 W | 4.07 W | 938 g | 19 A |

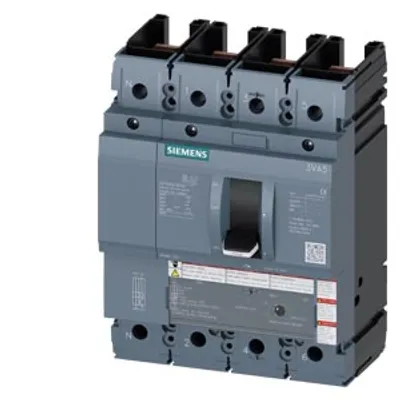

| 3VA5280-5ED41-0AA0 | MFAS | 20 W | 6.8 W | 2.7 kg | 77.6 A |
| 3VA5280-5EC31-0AA0 | MFAS | 20 W | 6.8 W | 2.014 kg | 77.6 A |
| 3VA5180-5ED31-1AA0 | MEAM | 19.3 W | 6.43 W | 0.88 kg | 76 A |
| 3VA5180-5ED31-0AA0 | MEAS | 19.3 W | 6.43 W | 933.5 g | 76 A |
| 3VA6325-6JP41-0AA0 | HJAE | 27 W | 9 W | 6.9 kg | 250 A |

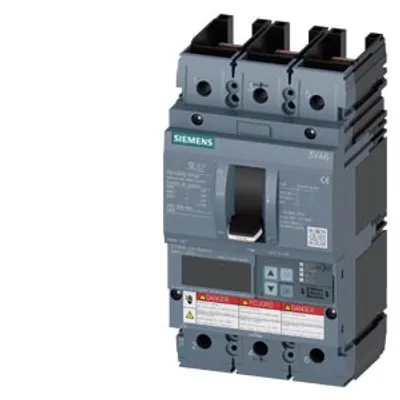

| 3VA6140-6KT31-0AA0 | HDAE | 2.4 W | 0.8 W | 2.5 kg | 40 A |
| 3VA5111-4ED11-1AA0 | SEAM | 8.6 W | 8.6 W | 0.38 kg | 103 A |
| 3VA5111-4ED11-0AA0 | SEAS | 8.6 W | 8.6 W | 376 g | 103 A |
| 3VA5111-4EC41-0AA0 | SEAS | 25.8 W | 8.6 W | 952 g | 103 A |
| 3VA5110-6EF41-0AA0 | HEAS | 22.8 W | 7.6 W | 1.22 g | 93 A |
| 3VA5110-6ED41-0AA0 | HEAS | 22.8 W | 7.6 W | 1.21 kg | 93 A |
| 3VA5325-6GC41-2AA0 | HJAS | 59 W | 19.57 W | 6 820 g | 234 A |
| 3VA5325-5EC31-2AA0 | MJAS | 59 W | 19.57 W | 4 820 g | 234 A |
| 3VA5325-5EC31-1AA0 | MJAM | 59 W | 19.57 W | 5.2 kg | 234 A |
| 3VA5325-5EC31-0AA0 | MJAS | 59 W | 19.57 W | 5.2 kg | — |
| 3VA5325-1MU31-0AA0 | CJAP | 120 W | 40 W | 5.2 kg | 400 A |
| 3VA6115-8KT41-2AA0 | LDAE | 29 W | 9.67 W | 2.9 kg | 143 A |
| 3VA6115-8KT41-0AA0 | LDAE | 29 W | 9.67 W | 3.2 kg | 143 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| reference code / according to IEC 81346-2 | Q |
