3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight |
|---|---|---|---|---|---|
| 3VA6440-7KP41-0AA0 | CLAE | ETU850 | 70 W | 23.33 W | 6.9 kg |
| 3VA6325-6KT41-0AA0 | HJAE | ETU856 | 27 W | 9 W | 6.9 kg |

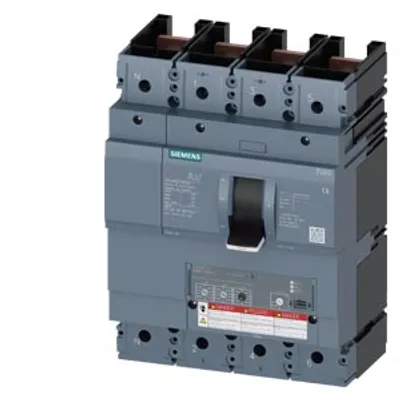

| 3VA6440-6HL41-2AA0 | HLAE | ETU320 | 70 W | 23.33 W | 6.9 kg |
| 3VA6440-6HL41-0AA0 | HLAE | ETU320 | 70 W | 23.33 W | 6.9 kg |
| 3VA6225-6KT41-2AA0 | HFAE | ETU856 | 42 W | 14 W | 2.9 kg |
| 3VA6225-6KT41-0AA0 | HFAE | ETU856 | 42 W | 14 W | 3.2 kg |
| 3VA6225-6KL31-2AA0 | HFAE | ETU820 | 42 W | 14 W | 2.3 kg |
| 3VA6225-6KL31-0AA0 | HFAE | ETU820 | 42 W | 14 W | 2.5 kg |
| 3VA6225-6JT41-2AA0 | HFAE | ETU556 | 42 W | 14 W | 2.9 kg |
| 3VA6225-6JT41-0AA0 | HFAE | ETU556 | 42 W | 14 W | 3.2 kg |
| 3VA5150-6ED21-1AA0 | HEAM | TM210 | 8 W | 4 W | 621 g |
| 3VA5150-6ED21-0AA0 | HEAS | TM210 | 8 W | 4 W | 650 g |
| 3VA5145-6EC31-1AA0 | HEAM | TM230 | 11.4 W | 3.8 W | 949 g |
| 3VA5145-6EC31-0AA0 | HEAS | TM230 | 11.4 W | 3.8 W | 945 g |
| 3VA5145-5ED41-0AA0 | MEAS | TM210 | 11.4 W | 3.8 W | 952 g |
| 3VA5145-5ED21-1AA0 | MEAM | TM210 | 7.6 W | 3.8 W | 621 g |
| 3VA5145-5EC31-1AA0 | MEAM | TM230 | 11.4 W | 3.8 W | 0.88 kg |
| 3VA5145-5EC31-0AA0 | MEAS | TM230 | 11.4 W | 3.8 W | 950 g |
| 3VA5145-4ED41-0AA0 | SEAS | TM210 | 11.4 W | 3.8 W | 952 g |
| 3VA5270-5EC41-2AA0 | MFAS | TM230 | 17 W | 5.7 W | 2 800 g |
| 3VA6115-5HN31-2AA0 | MDAE | ETU350 | 29 W | 9.67 W | 2.3 kg |
| 3VA6115-5HN31-0AA0 | MDAE | ETU350 | 29 W | 9.67 W | 2.074 kg |
| 3VA5330-7EC31-2AA0 | CJAS | TM230 | 70 W | 23.4 W | 4 820 g |

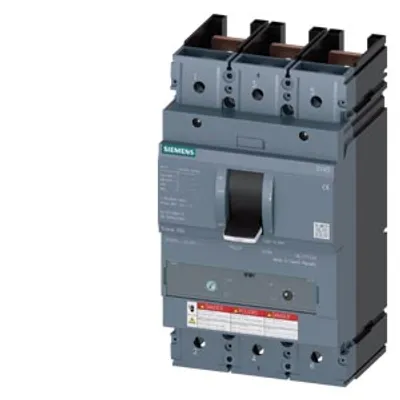

| 3VA5330-7EC31-1AA0 | CJAM | TM230 | 70 W | 23.4 W | 5.2 kg |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| arrangement of electrical connectors / for main current circuit | Without connection |
| type of electrical connection / for main current circuit | Without |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
