3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | operational current — at 55 °C | operational current — at 60 °C | operational current — at 65 °C | operational current — at 70 °C |
|---|---|---|---|---|---|

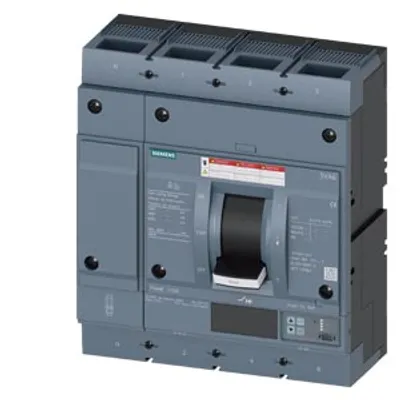

| 3VA6580-6KT42-2AA0 | HMAE | 776 A | 752 A | 708 A | 664 A |
| 3VA6580-6KT42-0AA0 | HMAE | 776 A | 752 A | 708 A | 664 A |
| 3VA6580-6KT36-2AA0 | HMAE | 776 A | 752 A | 708 A | 664 A |

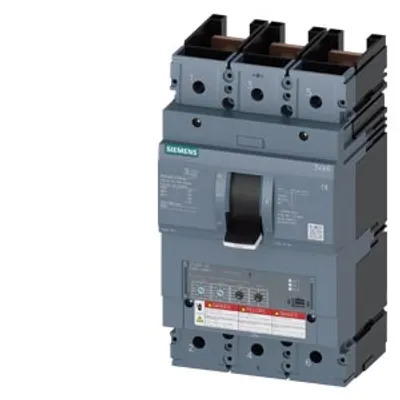

| 3VA6460-0HM31-0AA0 | ELAE | 575 A | 557 A | 538 A | 520 A |
| 3VA6450-1MS31-0AA0 | CLAR | 495 A | 490 A | 485 A | 480 A |
| 3VA6440-8HL41-2AA0 | LLAE | 400 A | 400 A | 400 A | 400 A |
| 3VA6440-8HL41-0AA0 | LLAE | 400 A | 400 A | 400 A | 400 A |
| 3VA6340-8KP31-0AA0 | LJAE | 375 A | 350 A | 325 A | 300 A |
| 3VA6340-8KM41-0AA0 | LJAE | 375 A | 350 A | 325 A | 300 A |
| 3VA6340-8HN31-0AA0 | LJAE | 385 A | 370 A | 355 A | 340 A |
| 3VA6340-8HM41-0AA0 | LJAE | 385 A | 370 A | 355 A | 340 A |
| 3VA6340-8HM31-0AA0 | LJAE | 385 A | 370 A | 355 A | 340 A |
| 3VA6325-8KT41-0AA0 | LJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6325-7HN31-2AA0 | CJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6325-7HN31-0AA0 | CJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6325-7HM41-2AA0 | CJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6325-7HL41-2AA0 | CJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6325-7HL41-0AA0 | CJAE | 250 A | 250 A | 250 A | 250 A |
| 3VA6225-5KT31-0AA0 | MFAE | 238 A | 225 A | 213 A | 200 A |
| 3VA6225-5KQ41-2AA0 | MFAE | 238 A | 225 A | 213 A | 200 A |
| 3VA6225-5KP41-2AA0 | MFAE | 238 A | 225 A | 213 A | 200 A |
| 3VA6225-0KQ31-0AA0 | EFAE | 238 A | 225 A | 213 A | 200 A |

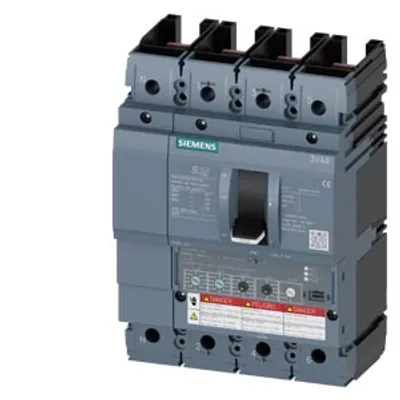

| 3VA6225-0HN41-0AA0 | EFAE | 241 A | 232 A | 222 A | 213 A |
| 3VA6225-8HN31-0AA0 | LFAE | 241 A | 232 A | 222 A | 213 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
