3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | protection function of the overcurrent release | Net Weight | maximum short-circuit current breaking capacity (Icu) — at 415 V |
|---|---|---|---|---|---|
| 3VA6225-6KQ41-0AA0 | HFAE | ETU860 | LSIG | 3.2 kg | 85 kA |
| 3VA6560-7KL32-0AA0 | CMAE | ETU820 | LI | 13.3 kg | 110 kA |
| 3VA6560-7JT46-2AA0 | CMAE | ETU556 | LSI-G-alarm only | 20.089 kg | 110 kA |
| 3VA6560-7JT46-0AA0 | CMAE | ETU556 | LSI-G-alarm only | 20.089 kg | 110 kA |

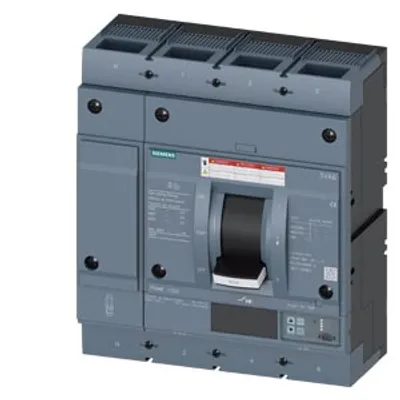

| 3VA6560-7JT42-2AA0 | CMAE | ETU556 | LSI-G-alarm only | 17.01 kg | 110 kA |

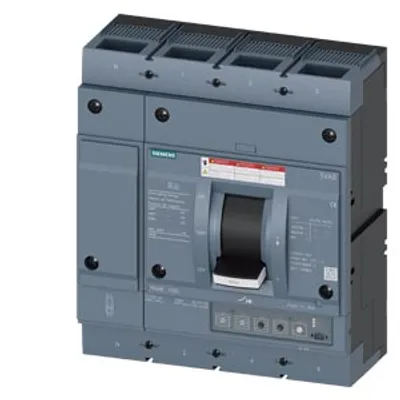

| 3VA6560-7HM42-2AA0 | CMAE | ETU330 | LIG | 17.01 kg | 110 kA |
| 3VA6560-7HM42-0AA0 | CMAE | ETU330 | LIG | 17.01 kg | 110 kA |
| 3VA6560-7HM36-2AA0 | CMAE | ETU330 | LIG | 15.355 kg | 110 kA |

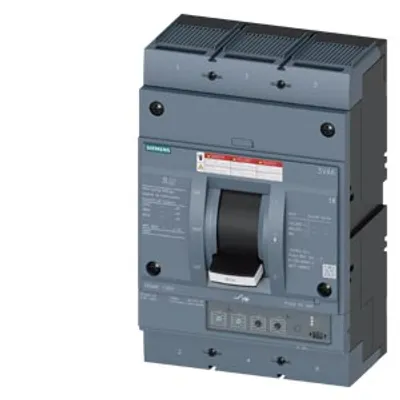

| 3VA6560-7HM36-0AA0 | CMAE | ETU330 | LIG | 15.355 kg | 110 kA |
| 3VA6560-7HM32-2AA0 | CMAE | ETU330 | LIG | 13.3 kg | 110 kA |
| 3VA6560-7HM32-0AA0 | CMAE | ETU330 | LIG | 13.3 kg | 110 kA |
| 3VA6560-7HL46-2AA0 | CMAE | ETU320 | LI | 20.089 kg | 110 kA |
| 3VA6816-6KQ31-2AA0 | HPAE | ETU860 | LSIG | 25.705 kg | 70 kA |
| 3VA6816-6KQ31-0AA0 | HPAE | ETU860 | LSIG | 25.77 kg | 70 kA |
| 3VA6816-6KP31-2AA0 | HPAE | ETU850 | LSI | 25.9 kg | 70 kA |
| 3VA6816-6KP31-0AA0 | HPAE | ETU850 | LSI | 25.7 kg | 70 kA |

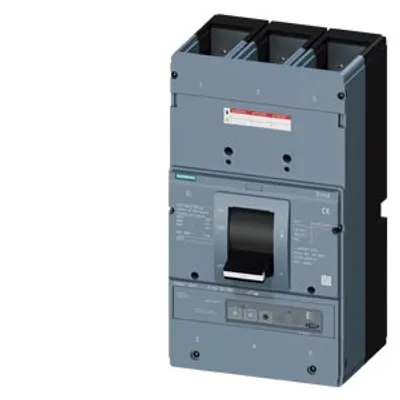

| 3VA6816-6HL31-0AA0 | HPAE | ETU320 | LI | 25.81 kg | 70 kA |

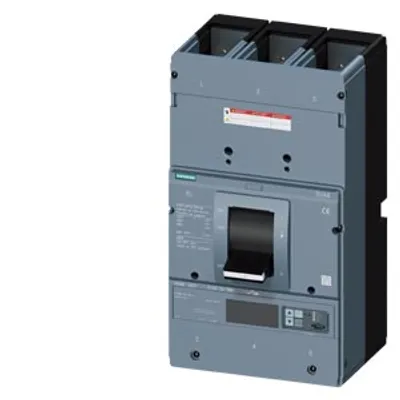

| 3VA6816-5KT31-2AA0 | MPAE | ETU856 | LSI | 3.133 kg | 50 kA |
| 3VA6816-5KT31-0AA0 | MPAE | ETU856 | LSI | 25.38 kg | 50 kA |

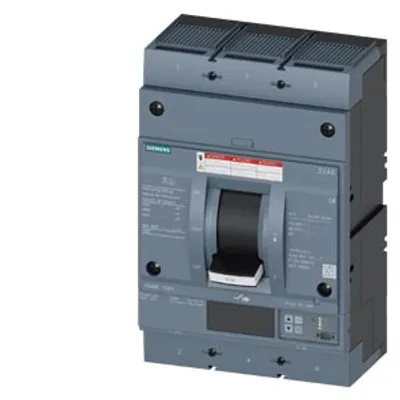

| 3VA6560-5JQ36-2AA0 | MMAE | ETU560 | LSIG | 15.355 kg | 55 kA |
| 3VA6560-5JQ36-0AA0 | MMAE | ETU560 | LSIG | 15.355 kg | 55 kA |
| 3VA6560-5JQ32-2AA0 | MMAE | ETU560 | LSIG | 13.3 kg | 55 kA |
| 3VA6560-5JQ32-0AA0 | MMAE | ETU560 | LSIG | 13.3 kg | 55 kA |

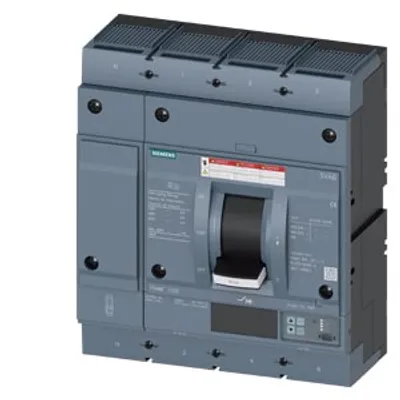

| 3VA6560-5JP46-2AA0 | MMAE | ETU550 | LSI | 20.089 kg | 55 kA |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| product component — undervoltage release | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
