Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM | Model Code 1 |
|---|---|---|---|---|---|
| 864AN00111A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65XM2PE7H412 |
| 864AN00110A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NXM1PH7H412 |
| 864AN00108A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NXM2PE7H412 |
| 864AN00107A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V833C375N250XM2PE7H412 |
| 864AN00106A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65ETM2PE7H412 |
| 864AN00105A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EM1PE7H412 |
| 864AN00104A | 130.00 | 34.30 | 65.00 | 17.20 | KBHDG5V733C130N65EXM1PH7H412 |
| 864AN00103A | 70.00 | 18.50 | 45.00 | 12.00 | KBHDG5V52C70N45EXM1PE7H412 |

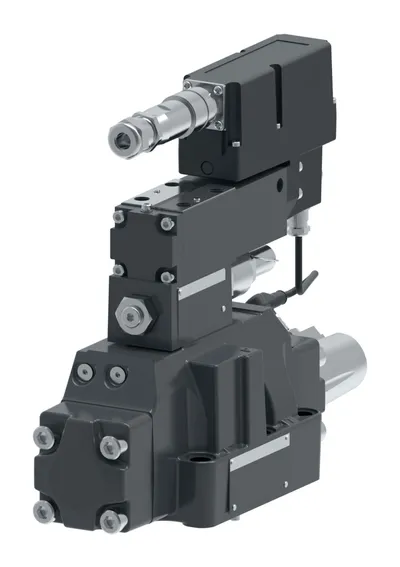

| 864AN00102A | 375.00 | 99.00 | 250.00 | 66.00 | KBHDG5V833C375N250EXM1PE7H412 |

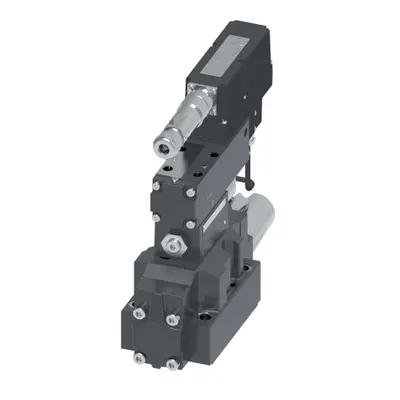

| 864AN00101A | 150.00 | 39.60 | 85.00 | 22.50 | KBHDG5V72C150N85EXM212EN118 |
| 864AN00097A | 375.00 | 99.00 | 375.00 | 99.00 | KBHDG5V833C375NXM1PE7H412 |
| 864AN00096A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NEXM2PE7H412 |
| 864AN00093A | 95.00 | 25.10 | 95.00 | 25.10 | KBHDG5V52C95NXM2PE7H412 |

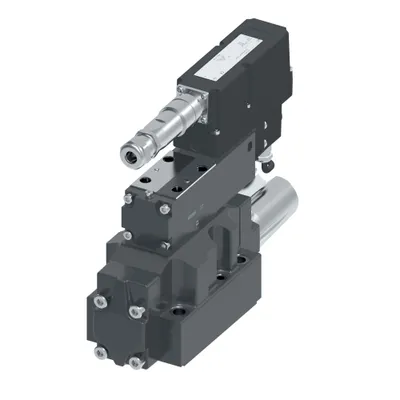

| 864AN00092A | 200.00 | 52.80 | 115.00 | 30.40 | KBHDG5V75C200N115M1PE7H412 |
| 864AN00088A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V75C200NEXM1PE7H412 |
| 864AN00087A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V75C200NXM1PE7H412 |
| 864AN00085A | 95.00 | 25.10 | 95.00 | 25.10 | KBHDG5V52C95NEXM1PE7H412 |
| 864AN00084A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NEM1PE7H412 |
| 864AN00082A | 80.00 | 21.00 | 80.00 | 21.00 | KBHDG5V533C80NEXM1PE7H412 |
| 864AN00081A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V75C200NEXM1PE7H412EN118 |

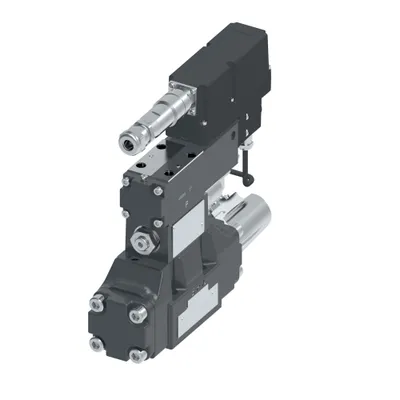

| 864AN00080A | 95.00 | 25.10 | 95.00 | 25.10 | KBHDG5V52C95NXTM1PE7H412 |
| 864AN00079A | 200.00 | 52.80 | 115.00 | 30.40 | KBHDG5V75C200N115EXM2PE7H412 |
| 864AN00077A | 160.00 | 42.30 | 160.00 | 42.30 | KBHDG5V733C160NEM1PE7H412 |

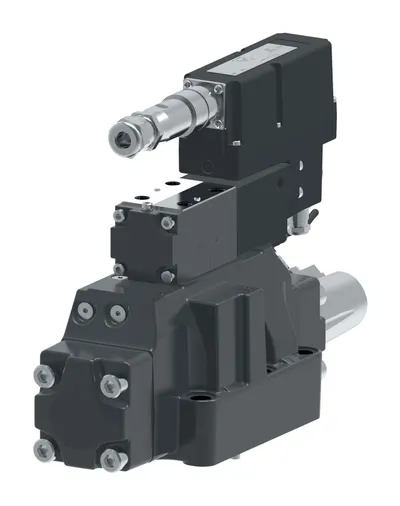

| 864AN00076A | 200.00 | 52.80 | 200.00 | 52.80 | KBHDG5V72C200NTM1PE7H412EN118 |
Common to all listed parts
| Actuation Type | Solenoid controlled pilot operated |
| Build orientation | Solenoid at B port end |
| Build type | Spring centered |
| Coil voltage | 24 Volt DC |
| Communication protocol | None |
| Current | 3 amp |
| Design Series | 12 Series |
| Feedback sensor | Yes |
