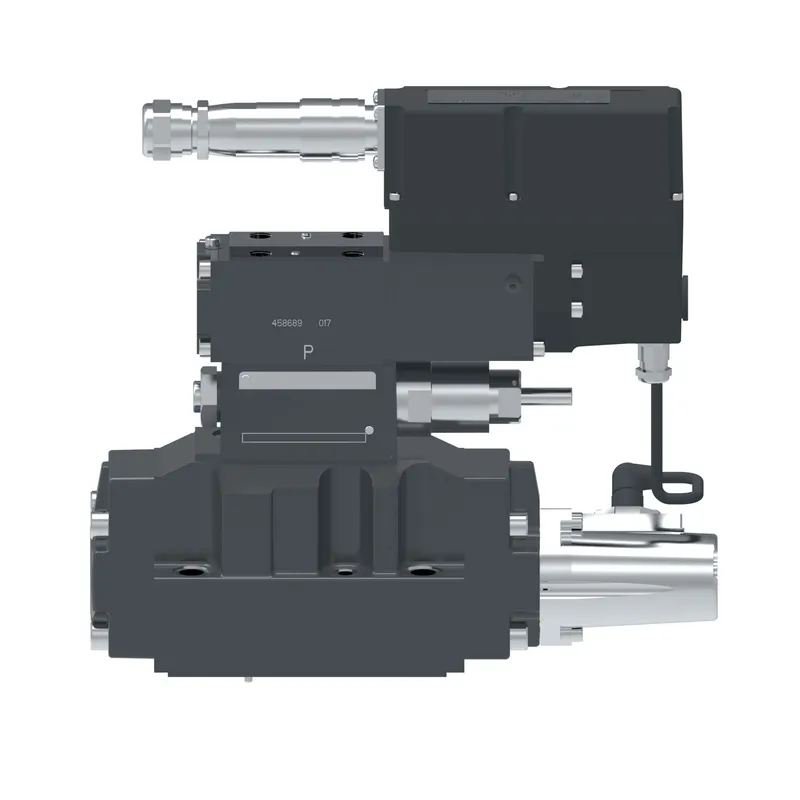

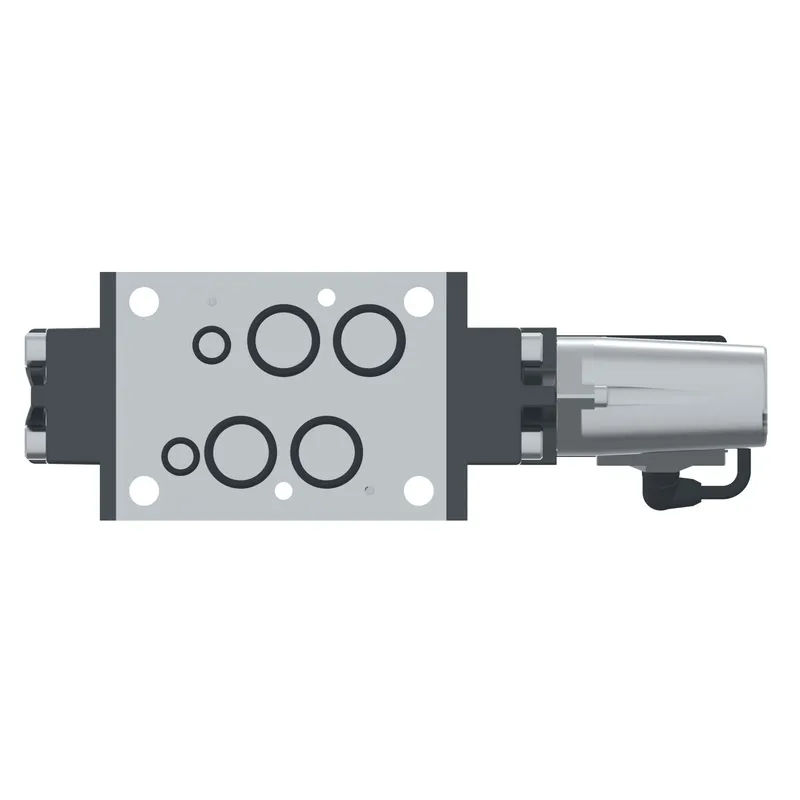

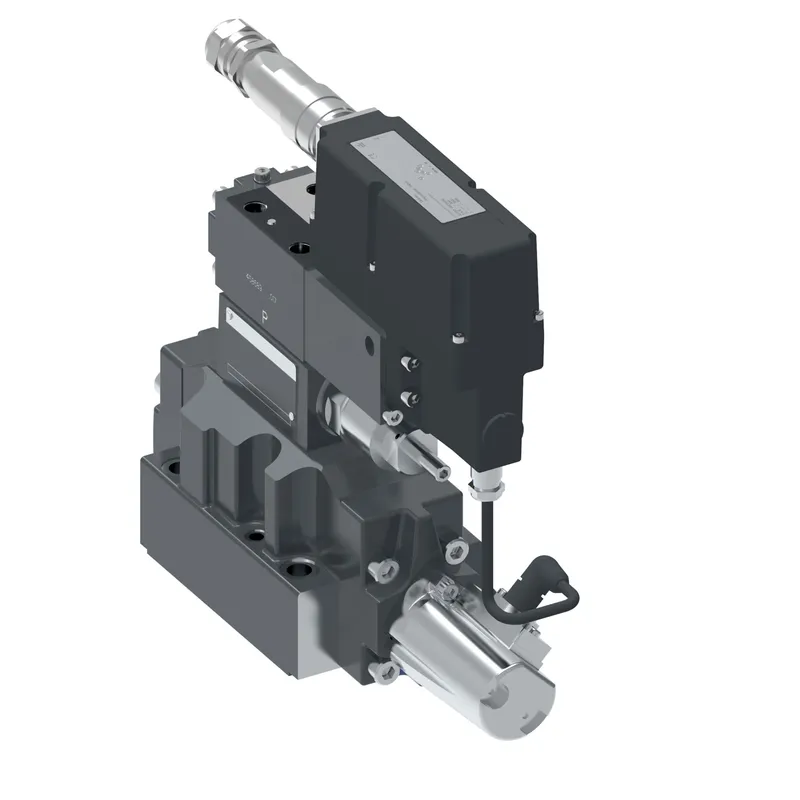

Danfoss 864AN00081A

KBHDG5V-7-5C200N-EX-M1-PE7-H4-12-EN118, KBHDG5V75C200NEXM1PE7H412EN118

MPN
864AN00081A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 864AN00081A?

Danfoss KBHDG5V-7-5C200N-EX-M1-PE7-H4-12-EN118, KBHDG5V75C200NEXM1PE7H412EN118, manufacturer part number 864AN00081A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM200.00
A Port flow USGPM52.80
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM200.00
B Port flow USGPM52.80
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Build typeSpring centered
Coil voltage24 Volt DC
Command input+/-10V Command +/-10V feedback
Communication protocolNone
Current3 amp
Design Series12 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorYes
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-07/NFPA D07/CETOP 7/NG16
Manual overrideNone
Maximum pressure BAR350
Maximum pressure PSI5000
MeteringMeter in / meter out
Model Code 1KBHDG5V75C200NEXM1PE7H412EN118
On board electronicsYes
PerformanceServo
Pilot drainExternal
Pilot supplyExternal
Product height in9.870
Product height mm250.698
Product length in10.920
Product length mm277.368
Product width in3.620
Product width mm91.948
ProFX compatibleNo
Reducer moduleYes
Reverse flow checkNo
Seal typeViton
Special featuresStrengthened anti-rotation pin
Spool TypeClosed centre (all ports)
StageTwo stage
Symmetric flowYes
Tank port rating BAR350
Tank port rating PSI5000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-40
Working temp min F-40

864AN00081A: frequently asked questions

When can 864AN00081A be shipped?

864AN00081A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 864AN00081A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 864AN00081A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 864AN00081A, subject to availability and destination.
